RGBlink VSP 516S Quick Start Guide

Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C
Tel: 00865925771197 Fax:00865925771202
Email: rgblinkcs@gmail.com http://www.rgblink.cn
5

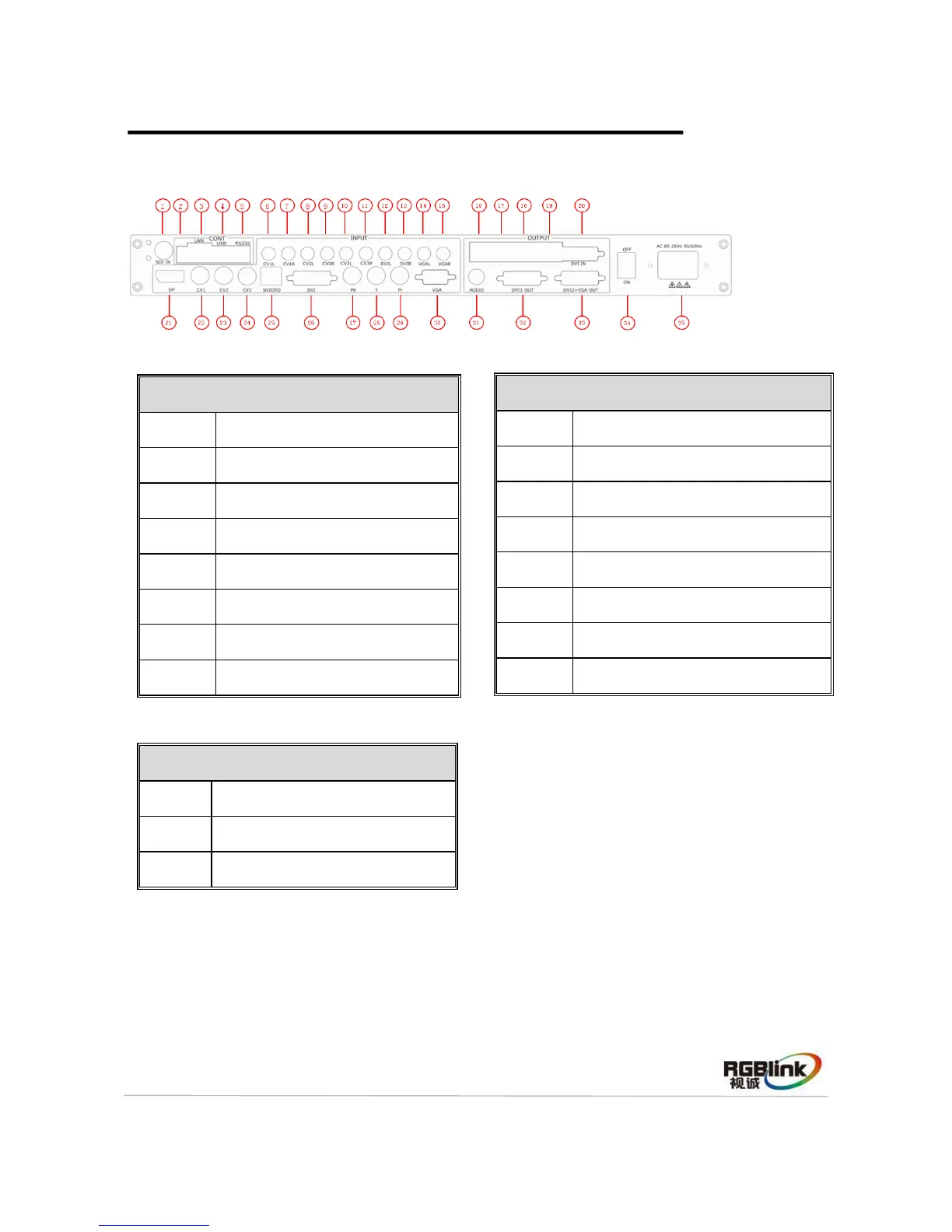

Back Panel
VSP 516S back panel with audio:
Input Interface
1
3G-SDI input BNC Port
6~15
Audio Input Port
21
Displayport Input Port
22~24
CVBS Input BNC port
25
S-Video Input DIN 4 Port
26
DVI Input DVI-I Port
27~29
YPbPr Input
30
VGA Input DB15 Port
Other Interface
2
Dial Switch
3. 16. 17
10/100M Interface RJ45
4. 19
USB Interface USB-B Port
5
RS232 Interface
18
Power Supply Port of Sending Card
20
DVI Input Port of Sending Card
34
Power Switch
35
Power IEC-3
Output Interface
31
Audio Output
32
DVI Output DVI-I port
33
VGA Output DB15 port
