Rheem 571D270 - Page 44

INSTALLATION
44
Recovery Rate @ 45°C rise L/hr – Is the number of litres of water that can be heated through a 45°C
temperature rise in one hour, e.g., when the air temperature is 19°C, the heat pump can heat 77 litres of water
from 15°C to 60°C in one hour.

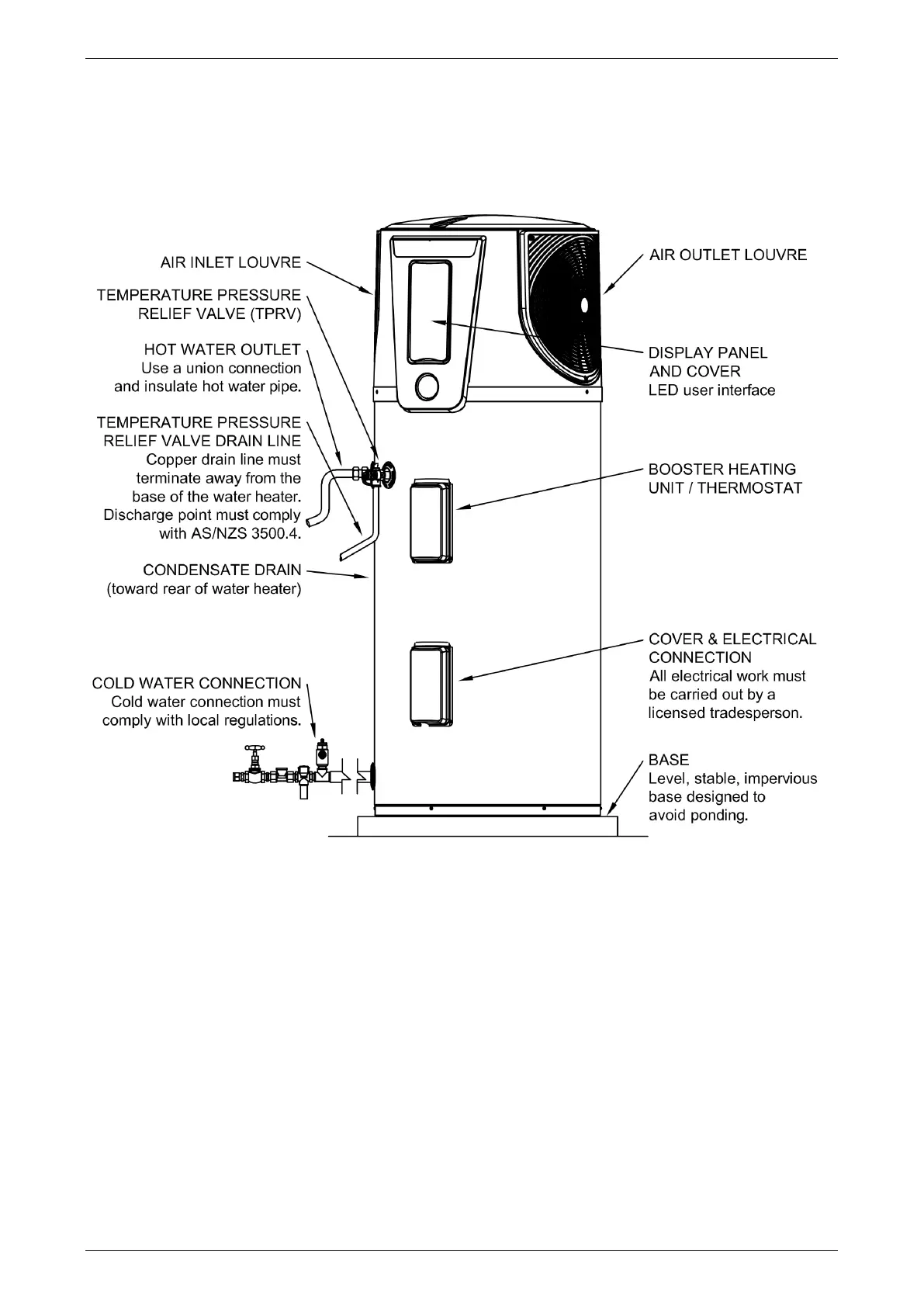

TYPICAL INSTALLATON – OUTDOOR LOCATION
