28

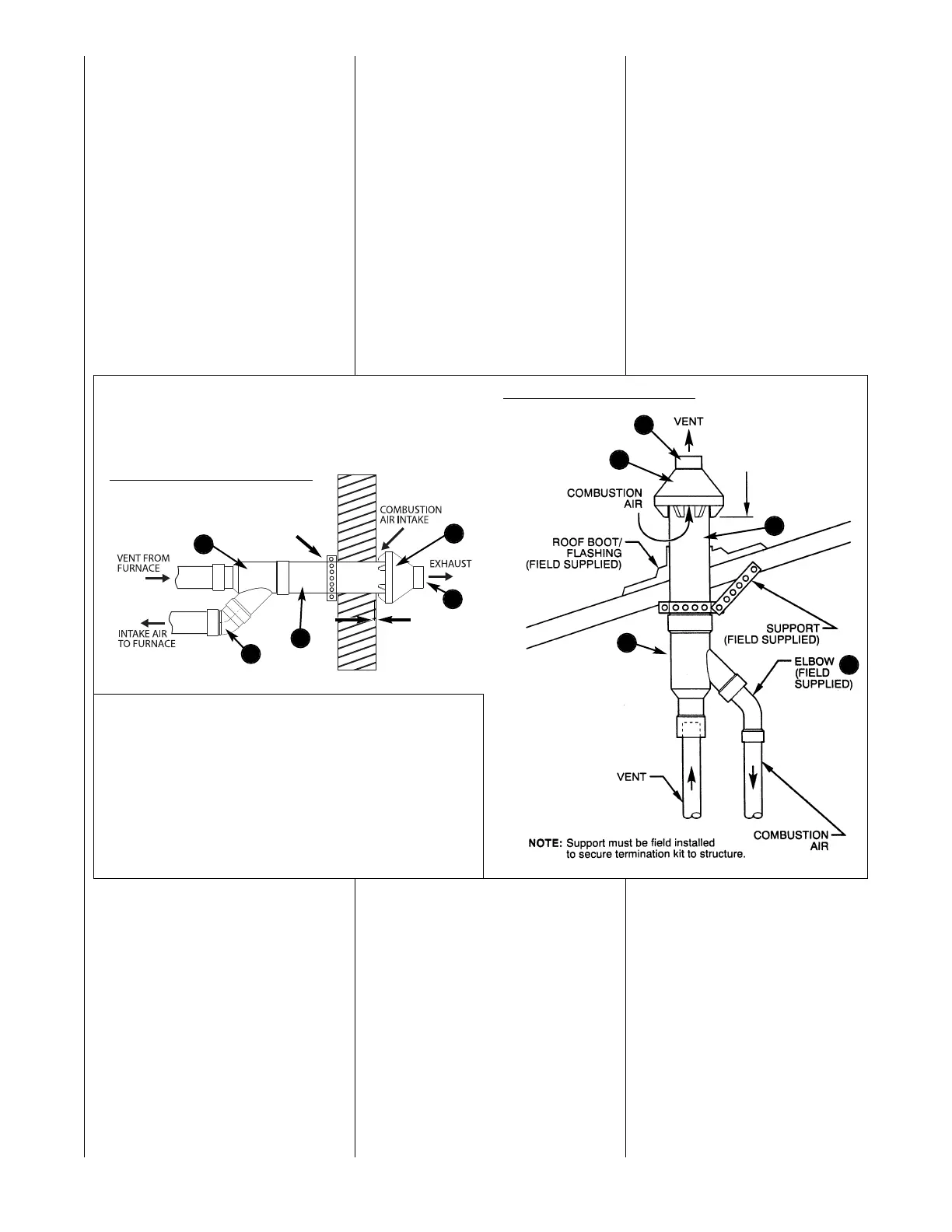

FIGURE 19
CONCENTRIC VENT KIT NO. RXGY-E03
SIDEWALL ASSEMBLY
ROOF INSTALLATION
1" MAXIMUM
FIELD-SUPPLIED
STRAP
ITEM No. DESCRIPTION
A 2.5" PVC PIPE SCHEDULE 40 -- 37.125" LONG
B4" PVC PIPE SCHEDULE 40 -- 24" LONG
C3" x 3" x 4" SPECIAL CONCENTRIC FITTING
D3" x 45° STREET ELBOW (FIELD SUPPLIED)
E PVC RAINCAP
E
B
A
C
D
E
B
A
C
D
C
ONCENTRIC
T
ERMINATIONS
VERTICAL/HORIZONTAL
CONCENTRIC VENT
KIT NO. RXGY-E03
This kit is for vertical/horizontal
intake air/vent runs and may be
installed through roofs and
s
idewalls. One 5” diameter hole is
required for the installation. See
Figure 19 for the general layout.
Complete installation instructions
are included with the kit.
MAINTAIN 12 IN.
MINIMUM CLEARANCE
ABOVE HIGHEST
ANTICIPATED SNOW
LEVEL. MAXIMUM OF
24 IN. ABOVE ROOF.
