FIGURE 59
FAULT MESSAGE (IF ANY) (MAIN LIMIT OPEN) DISPLAYED.
3. The
FFaauulltt SSttaattuuss
screen will
appear with a description of
the current fault (if any). Use
the section of this manual
titled
FFUURRNNAACCEE FFAAUULLTT
CCOODDEESS EEXXPPAANNDDEEDD WWIITTHH
DDEESSCCRRIIPPTTIIOONNSS AANNDD
SSOOLLUUTTIIOONNSS
for a full expla-
nation of the fault and possi-
ble solution(s). To escape
from this menu, press the
EEnntteerr
(to return to the fur-
nace user menus) or
HHoommee
button or just wait a few min-
utes and the main screen will
appear again.
TIPS FOR NAVIGATING FURNACE
USER MENUS USING THE (-)HC-
TST550CMMS THERMOSTAT
(-)HC-TST550CMMS FULL
COLOR, PROGRAMMABLE
COMMUNICATING THERMOSTAT
VIEWING FURNACE FAULT
MESSAGES WITH THE
(-)HC-TST550CMMS
THERMOSTAT
To enter a particular user menu on
the (-)HC-TST550CMMS, full color
communicating thermostat follow the
directions below.

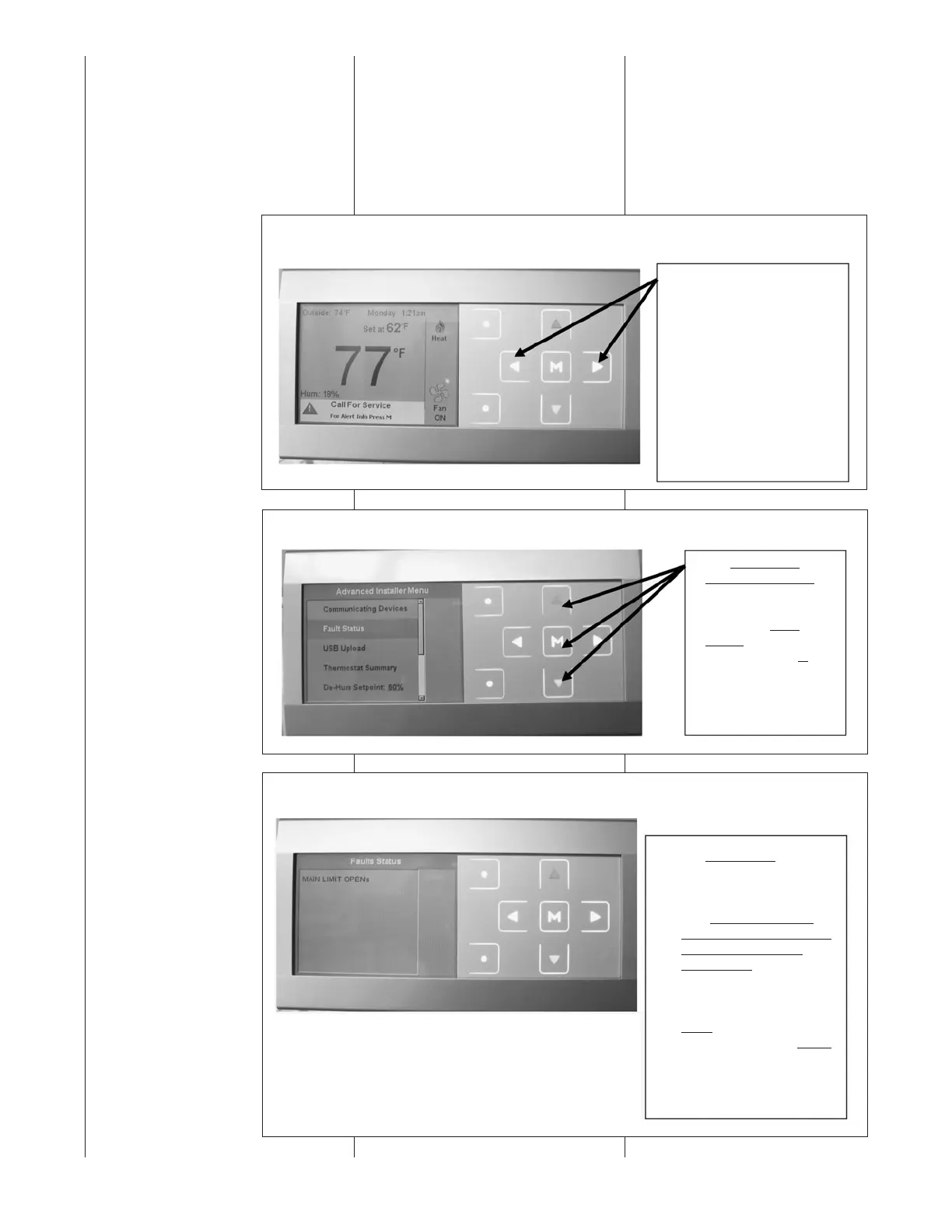

FIGURE 57
ENTER THE ADVANCED INSTALLER MENUWIRING DIAGRAM – COMMUNICATING CONFIGURATION
FIGURE 58
SELECT FAULT STATUSIRING DIAGRAM – COMMUNICATING CONFIGURATION
1.From the main screen, press
the left and right arrow keys
together at the same time for
at least 3 seconds. The next
screen below will appear.
(Note that Call for Service
appears at the bottom of the
screen. This is an indicator
that the fault messages
should be viewed to deter-
mine the cause of the fault.)
2.The ADVANCED
INSTALLER MENU is
displayed. Use the up
and down arrow keys
to highlight Fault
Status.
Next, press the “M ”
key. The next screen
below will appears
Home
Enter
Home
Enter
90
