SIDE DISCHARGE CONCENTRIC DIFFUSER
RXRN-FA60 (3 to 5 Ton [10.6 to 17.6 kW] Models)
For Use With Duct Adapter (RXMC)
Model No. A B C D E F G H I J K
Duct
Size
RXRN-FA60
47
5
/8"
[1210 mm]
23
5
/8"
[600 mm]
11
3
/8"
[289 mm]
21
1
/2"
[546 mm]
45
1
/2"
[1156 mm]
22
1
/2"
[572 mm]
11
1
/2"
[292 mm]
10
3
/4"
[273 mm]
45
1
/2"
[1156 mm]
21
1
/2"
[546 mm]
7
1
/8"
[181 mm]
18RD
Model No. CFM [L/s]
Static
Pressure
Throw
Feet
Neck
Vel.
Jet
Vel.
Noise
Level
RXRN-FA60
1000 [472] .14 10-17 351 351 20
1200 [566] .17 11-18 421 421 20
1400 [661] .20 12-19 491 491 20
1600 [755] .24 12-20 561 561 20
1800 [850] .30 13-21 632 632 20
2000 [944] .36 14-23 702 702 20
2200 [1038] .40 16-25 772 772 20

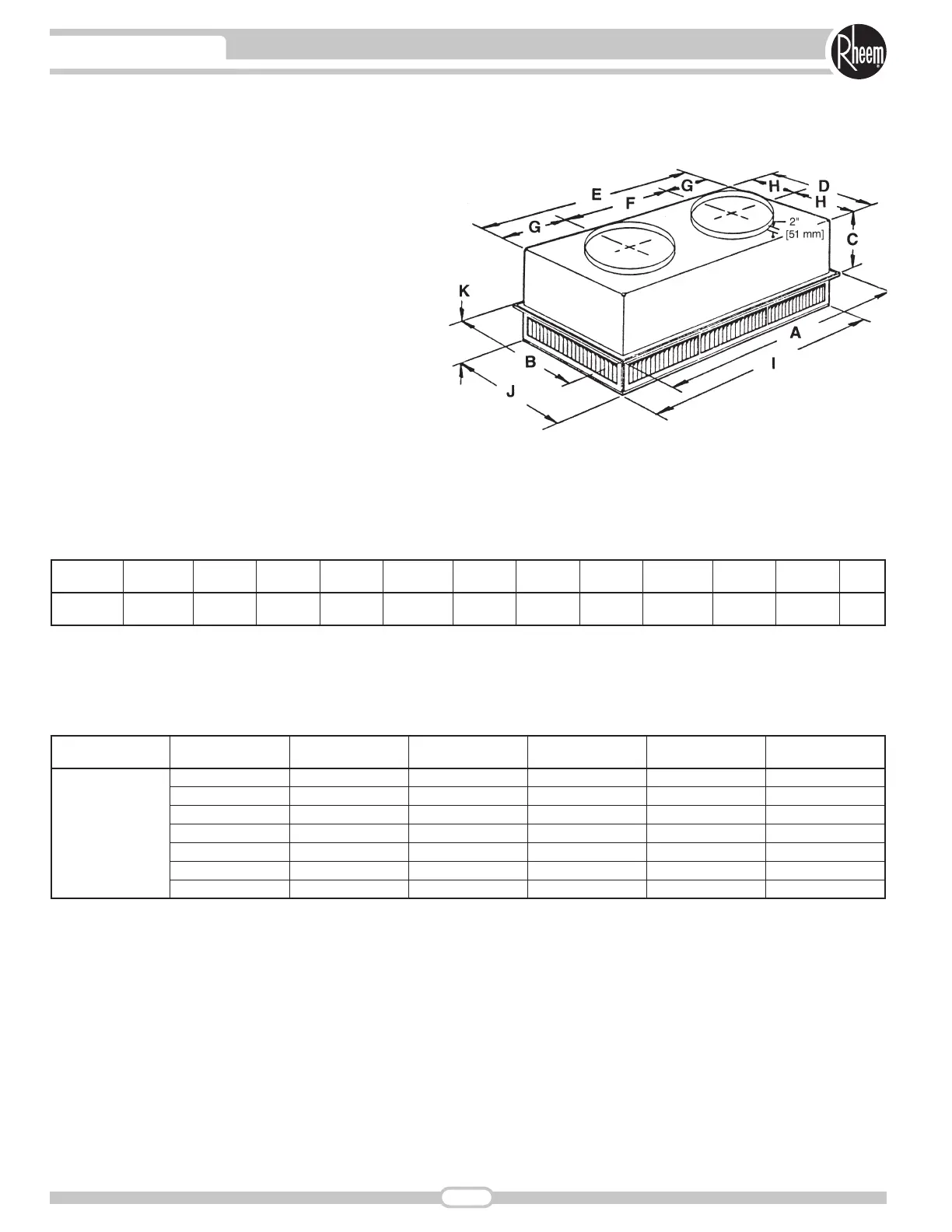

DIMENSIONAL DATA
ENGINEERING DATA
[ ] Designates Metric Conversions
40
ACCESSORIES
