Rheem RKNA SERIES - Unit Dimensions

4

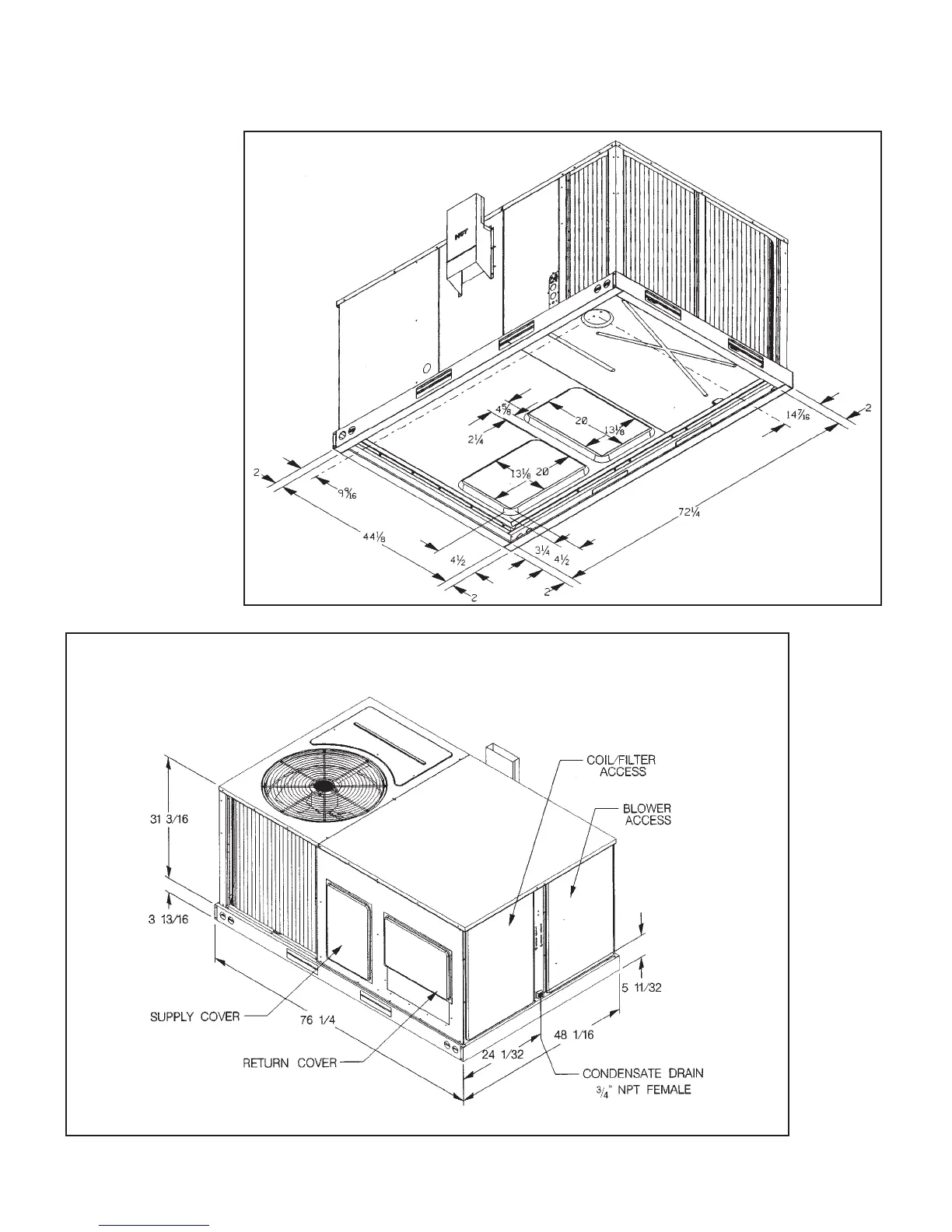

FIGURE 1
BOTTOM VIEW
FIGURE 2
CABINET DIMENSIONS AND ACCESS LOCATIONS
VI. UNIT DIMENSIONS
FOR CLEARANCES
SEE FIGURE 7.
IMPORTANT: THIS UNIT
MUST BE MOUNTED LEVEL
IN BOTH DIRECTIONS TO
ALLOW WATER TO DRAIN
FROM THE CONDENSER
SECTION AND CONDEN-
SATE PAN.
