Chapter1ProductCharacteristics
OperatingPrinciple(Standard/ExternalMode)
1. Only POTABLE water may be plumbed through
the water heater.
2. The water heater cannot be used for space
heating applications.
3. Expansion tank is required if a backflow
preventer is installed.
4. Isolation valve kits are recommended for this
installation.

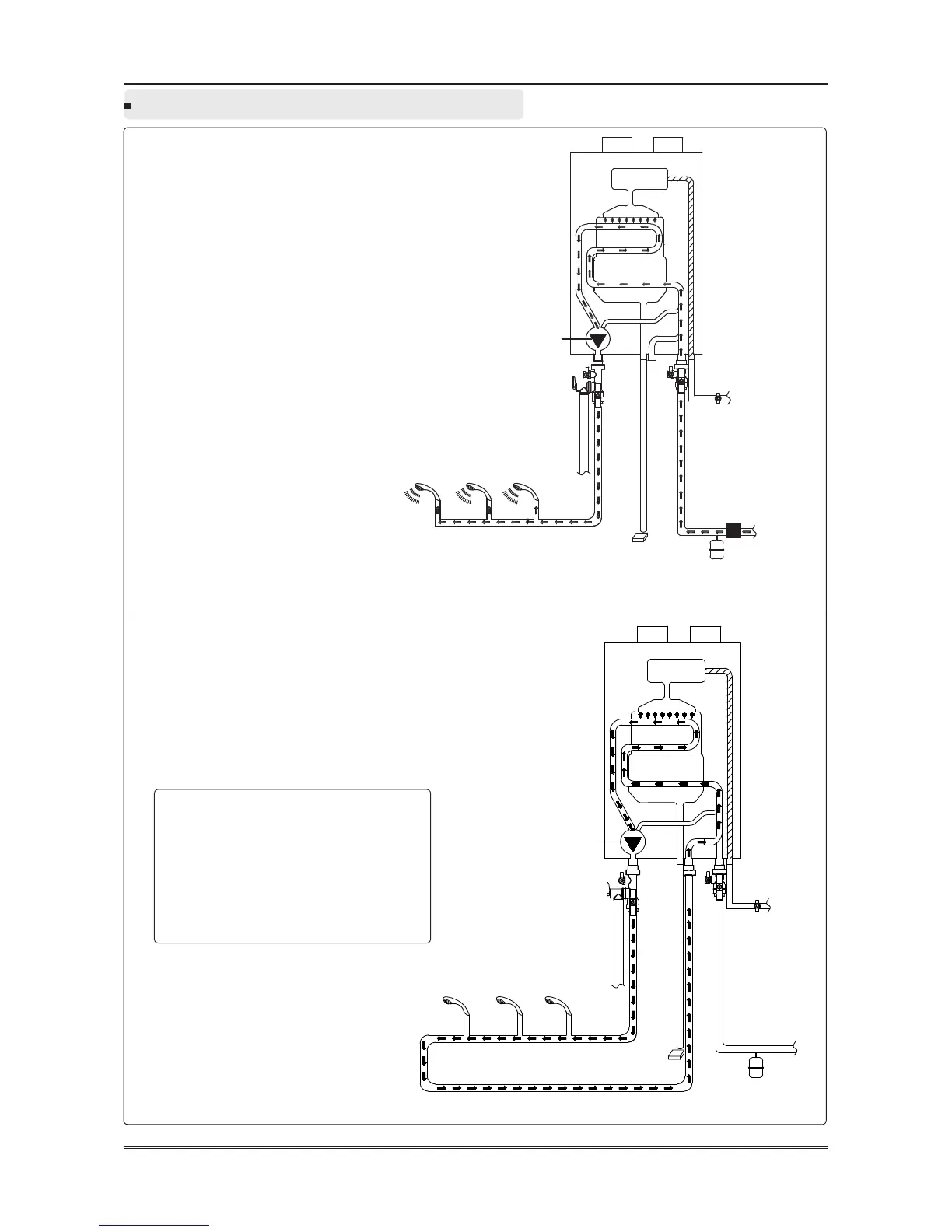

Standard Mode
Air & Gas
Mixing
Recirculation
Pump
Hot Water Oulet
Condensate Hose
Burner
Secondary heat
exchanger
Primary heat
exchanger
Cold Water Inlet
Gas
Pressure Relief Valve
Expansion Tank (Install
according to local code)
Backow Preventer
(optional)
When using external recirculation mode with
the built-in pump, check the following maximum
recirculation pipe lengths including fittings (3/4"
pipe is recommended):
-1/2" Pipe- 200' (60m) of equivalent length
-3/4" Pipe- 500' (150m) of equivalent length
Lengths in excess of these limits will require an
external recirculation pump.
Cold Water Inlet
Expansion Tank (Install
according to local code)
Air & Gas
Mixing
Primary heat
exchanger
Secondary heat
exchanger
Burner
Hot Water Outlet
Pressure Relief Valve
Recirculation
Pump
Recirculation Line
Condensate Hose
Gas
External Recirculation mode
The recirculation pipe must be installed in the eld in
order to use ‘External Recirculation Mode’.
This mode allows the water heater to recirculate
heated water through the system and additionally
serves as a freeze protection function.
Expansion Tank (Install
according to local code)
Recirculation
Pump
Pressure Relief Valve
Hot Water Oulet
Condensate Hose
Cold Water Inlet
Gas
Air & Gas
Mixing
Primary heat
exchanger
Burner
Secondary heat
exchanger
