Rheem RTGH-RH11DV Service Manual

12

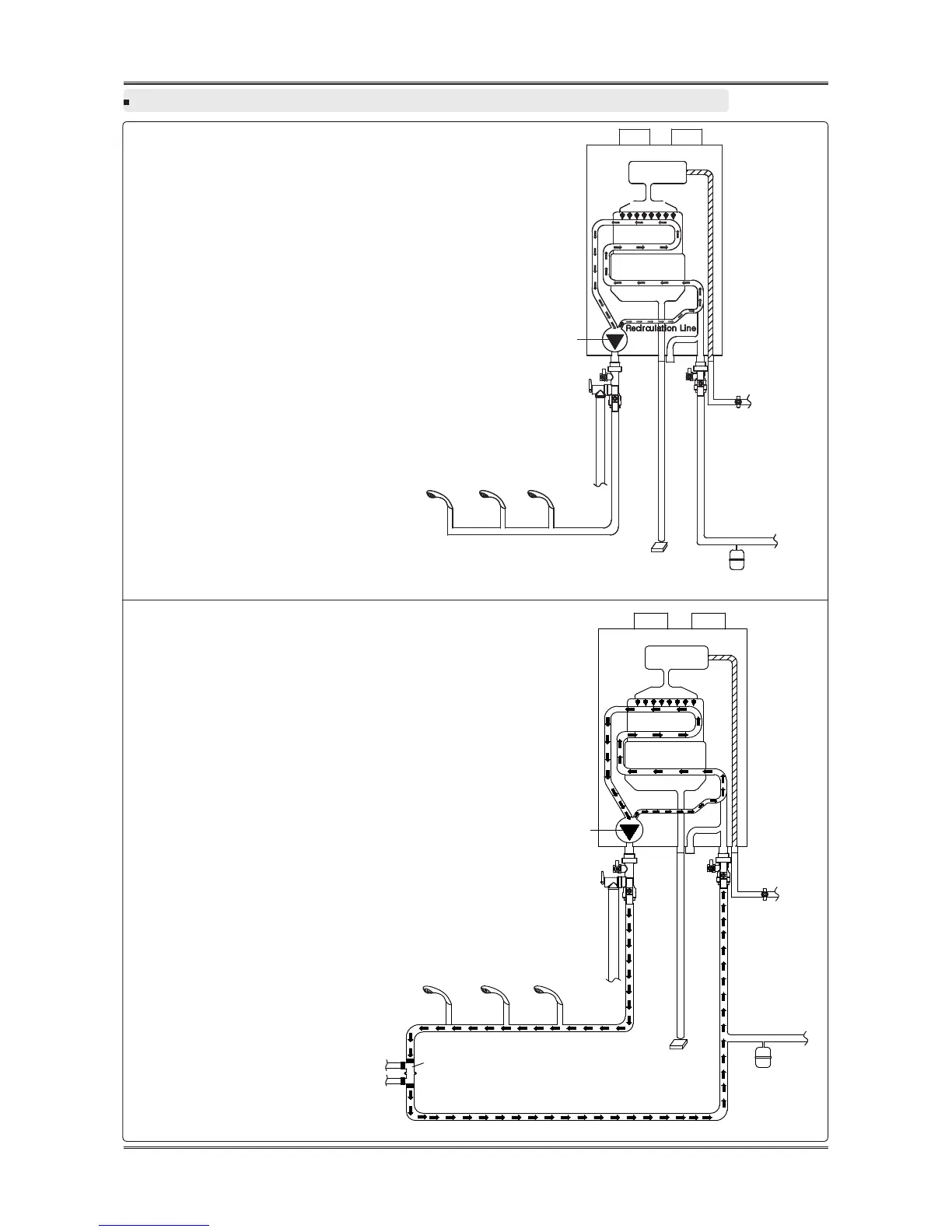

OperatingPrinciple(PreheatorInternalMode/bYPSRecirculationMode)
Chapter1ProductCharacteristics
Preheat or Internal Recirculation Mode may
be used without an installed recirculation
pipe. The water heater is preheated and
protected from freezing.
Preheat or Internal Recirculation Mode
Air & Gas
Mixing
Primary heat
exchanger
Burner
Secondary heat
exchanger
Recirculation
Pump
Pressure Relief Valve
Hot Water Oulet
Condensate Hose
Cold Water Inlet
Gas
Expansion Tank (Install
according to local code)
bYPS Recirculation Mode may be used with
a cross over valve assembled at the furthest
tting
Pressure Relief Valve
Air & Gas
Mixing
Primary heat
exchanger
Secondary heat
exchanger
Burner
Recirculation Line
Expansion Tank (Install
according to local code)
Recirculation
Pump
Condensate Hose
Gas
Hot Water Outlet
Cold Water Inlet
Cross Over Valve
Primary heat
exchanger
Burner
Air & Gas
Mixing
Recirculation
Pump
Secondary heat
exchanger
Pressure Relief Valve
Hot Water Oulet
Condensate Hose
Cold Water Inlet
Gas
Expansion Tank
(Install according to local
code)
Cross Over Valve
bYPS Recirculation Mode
with Cross
Over Valve
Recirculation Line
