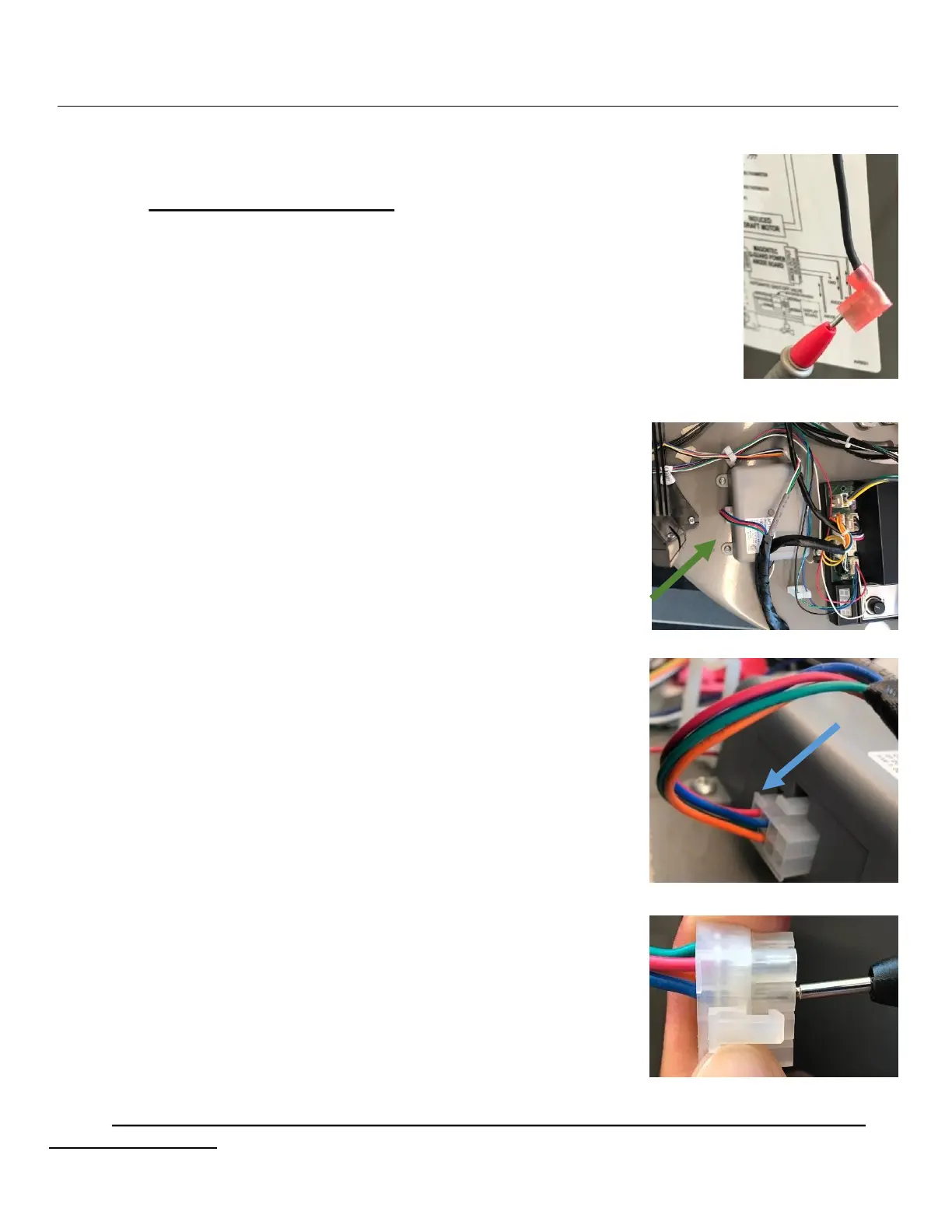

• Insert your other meter lead into the molex connector location for the
wire associated with the suspect anode as shown in bottom photo.
• Resistance reading should be less than 20 ohms. If reading is higher
than 20 ohms replace wiring harness
NOTE: The anode rod power wire harness has 4 wires in the molex.
GREEN = GROUND
RED = UPPER ANODE
BLUE = MIDDLE ANODE
ORANGE = LOWER ANODE
Note: Turn off power to water heater.
• With anode power wire disconnected, insert one meter lead into the wire as
shown.
• Locate the anode control module.
• Disconnect the anode power lead harness from the
anode control module.
NOTE: If this is a new install, and no issues were found during anode “Overload” and/or “Pre-Overload”
testing, see next page.
Triton Service Manual SVC1020T ; Rev 4
80 and 100 gallon chassis
45
Troubleshooting Error Codes
To Next Page
