Triton Service Manual SVC1020T ; Rev 4
80 and 100 gallon chassis
51

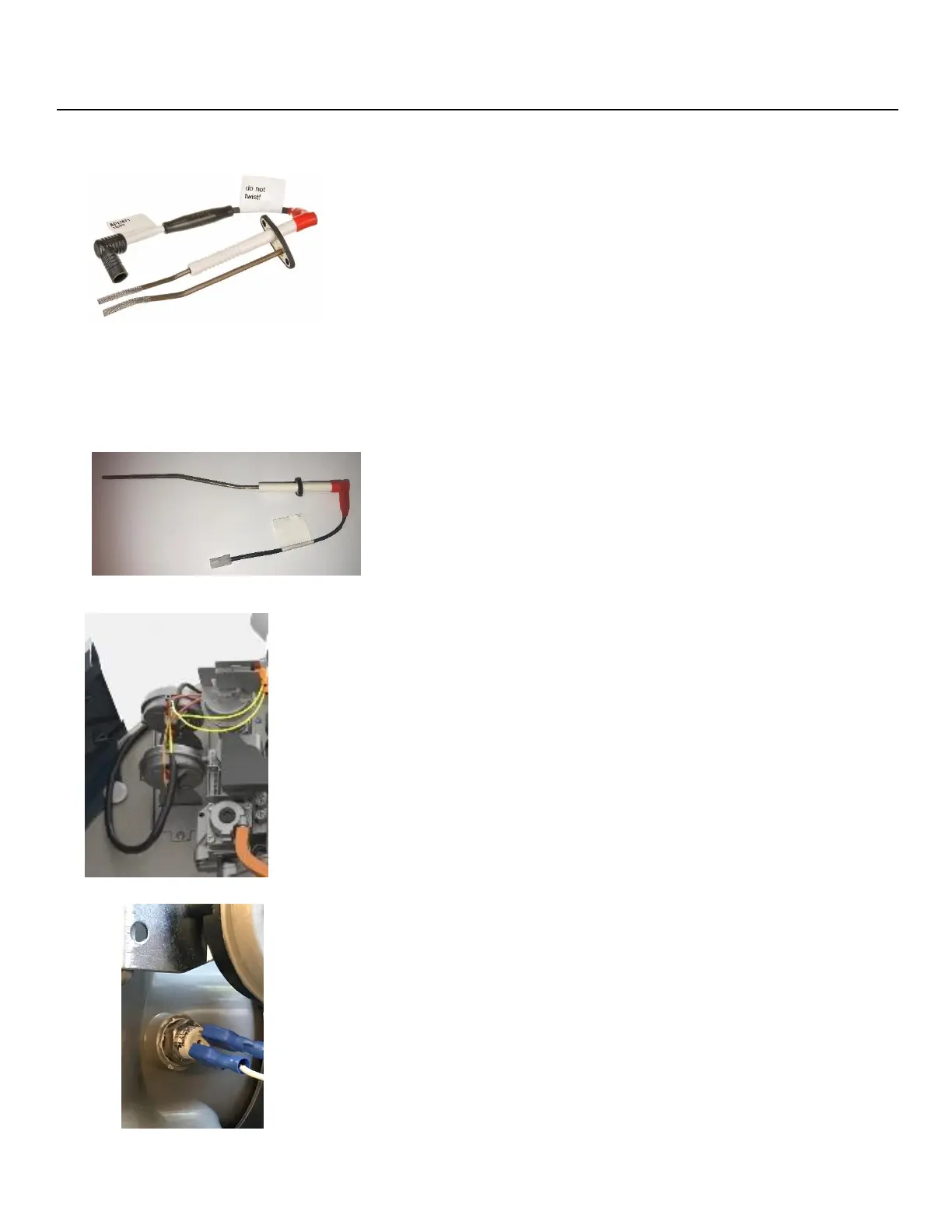

Exhaust Gas Temperature Sensor
1. Disconnect power to the water heater.
2. Remove the two brown wires from the exhaust gas sensor.
3. Remove the sensor using a wrench.
4. Replace in reverse order.
Pressure Switches
1. Disconnect power to the water heater.
2. Remove all wiring connections and rubber
tubing to the pressure switch.
3. Remove the two Phillips screws holding the
pressure switch assembly in place.
4. Replace in reverse order.
Flame Sensor
1. Disconnect power to the water heater.
2. Remove the yellow wire to the flame rod.
3. Remove the two Phillips screws.
4. Remove the flame rod. You may need a small putty knife to
get it started.
5. Clean all old gasket material from the burner assembly.
6. Replace in reverse order.
Igniter
1. Disconnect power to the water heater.
2. Remove the green grounding wire.
3. Remove the two Phillips screws.
4. Remove the igniter assembly. You may need a small putty
knife to get it started.
5. Clean all old gasket material from burner assembly.
6. Replace igniter in reverse order.
Disassembly and Repair
