ASSEMBLY
DB150 07/11 Assembly Section 3-5
© 2011 Alamo Group Inc.
ASSEMBLY
HEAD ATTACHMENT

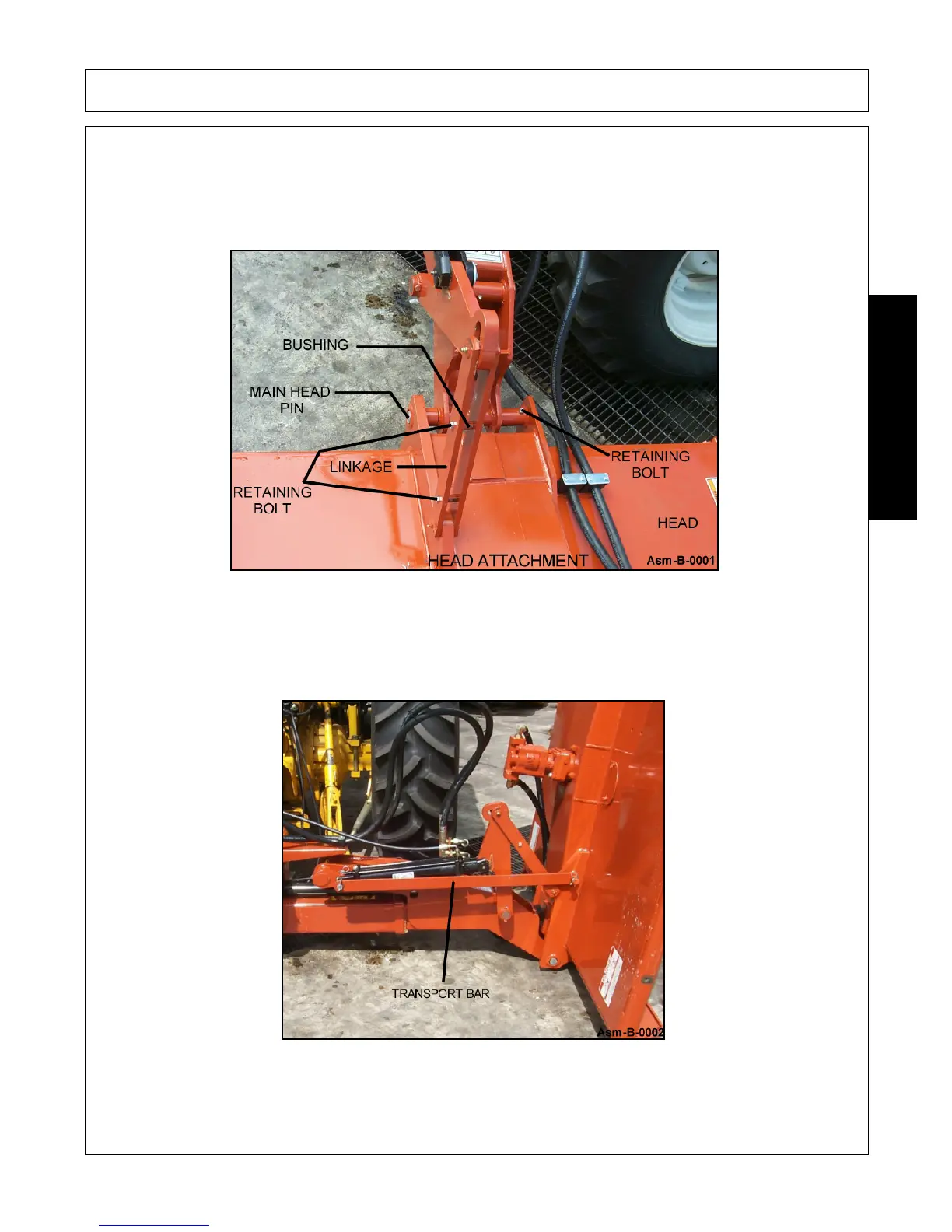

Align the Mainframe with the Mower Head, insert the Main Head Pin and retain with bolt and locknut. Attach
the Linkage with bushings and retain with the bolts and locknuts. Figure Asm-B-0001
With a hoist, raise the Mower Head until it is vertical. Attach the Transport bar to the Mower Head.
Figure Asm-B-0002.
