ASSEMBLY
DB150 07/11 Assembly Section 3-3
© 2011 Alamo Group Inc.
ASSEMBLY
TRACTOR PREPARATION
Add front end weights as required to maintain enough weight on front wheels for safe steering.
Failure to add the required front end weight can cause tractor to rear up which can cause
equipment damage and bodily injury.
To prevent damage to the Hydraulic Pump, do not attempt to start tractor before installing
the hydraulic systems and filling the system with Universal Tractor Hydraulic oil as specified.
MAINFRAME ATTACHMENT

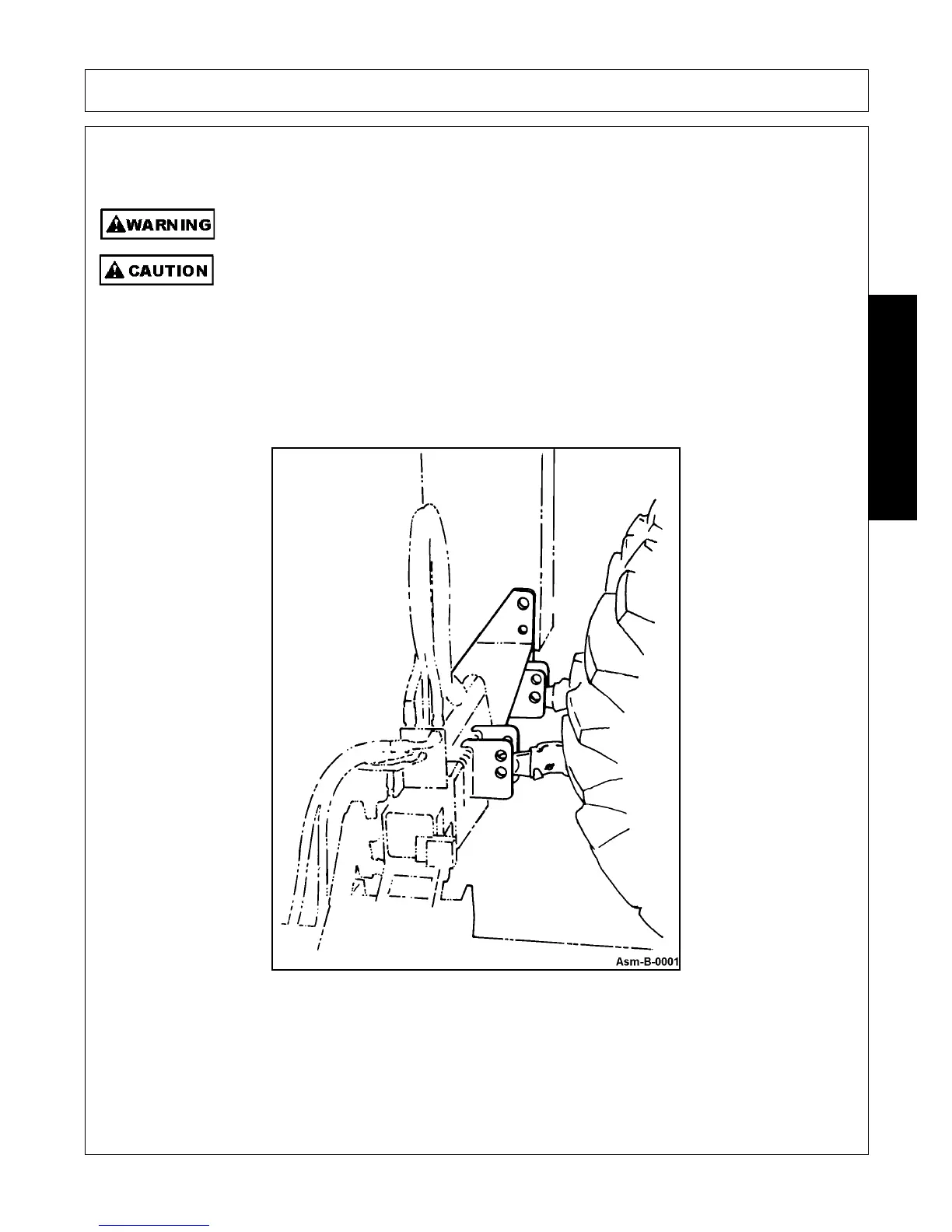

With a forklift or hoist raise the Mainframe until it lines-up with the 3-point hitch. Figure Asm-B-0001. Attach
the Mainframe to the 3-point hitch by using a standard Cat. II pin (Figure Asm-0003) or a optional Cat. II & III
pin (Figure Asm-B-0004-0005) and a Retaining Pin. Attach the tractor Top Link to the Mainframe with bolt and
locknut. Figure Asm-B-0006.
