MAINTENANCE
NOTE: Replace Blades in pairs after no more than 1/2” notch wear!
BLADE REMOVAL
To remove blades for sharpening or replacement,
remove the cover plate on deck of cutter near gear
box. Remove lock nut from blade bolt. NOTE:
Inspect lock nut after removal and replace if threads
are damaged. Always replace nut when replacing
blade bolt. When installing blades be sure and
check blade bolt pivot diameter for wear. Replace
bolt if worn more than 1/4 inch at any point. See

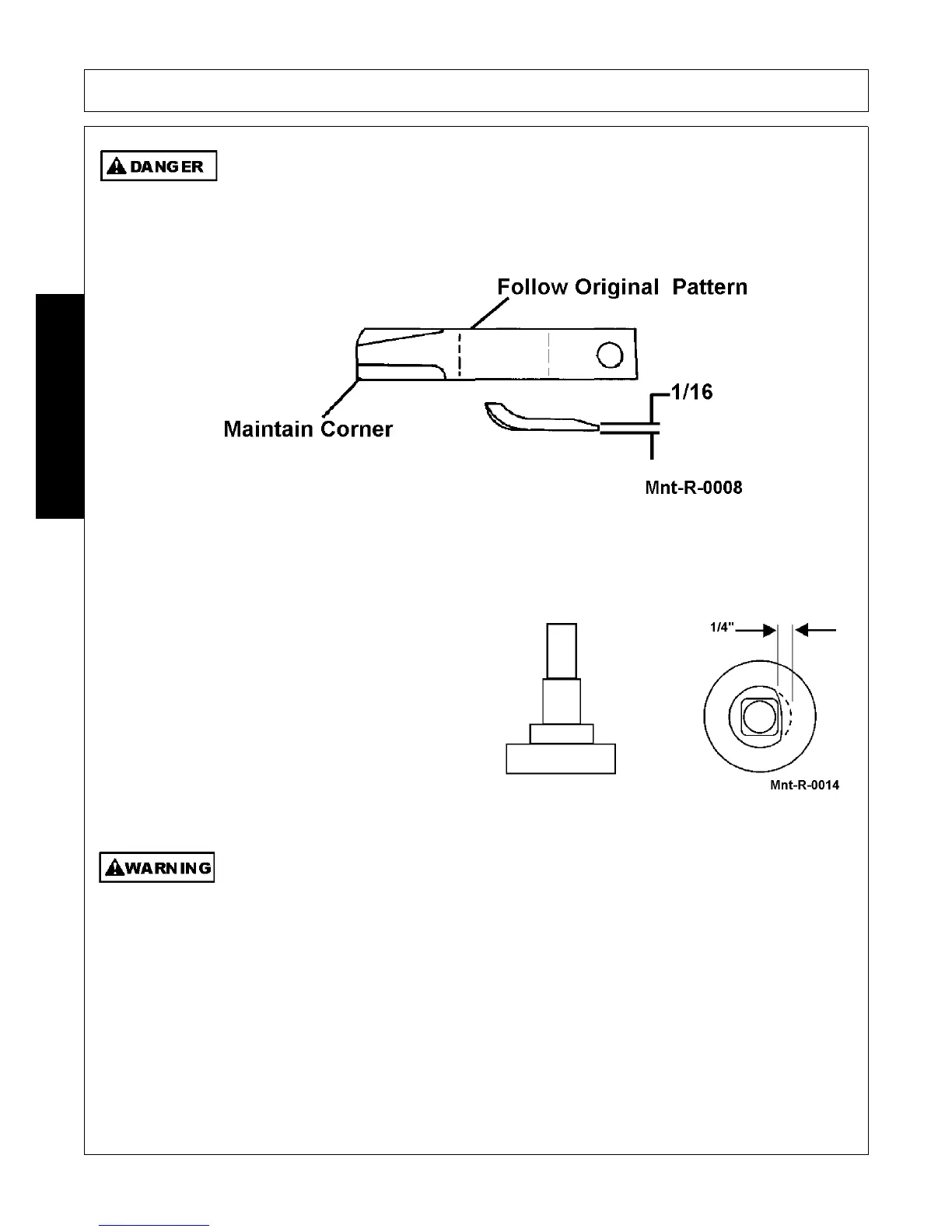

Figure Mnt-R-0014. Install blade bolts with partially
worn side of bolt either toward or away from center.
Tighten locknut to 300 ft. lbs.
Avoid personal injury. Blade and/or blade carrier removal should be done only with the
tractor engine shut off, key removed, in neutral, parking brake on, PTO disengaged, and the
cutter blocked in the raised position.
Replace bent or broken blades with new blades. NEVER ATTEMPT TO STRAIGHTEN,
WELD, OR WELD HARDFACING ON BLADES SINCE THIS WILL LIKELY CRACK OR
OTHERWISE DAMAGE THE BLADE WITH SUBSEQUENT FAILURE AND POSSIBLY
CAUSE SERIOUS INJURY FROM THROWN BLADES.
(SGM-10)
