RIB B2 - Point a - Control Panel Features

24
G
B

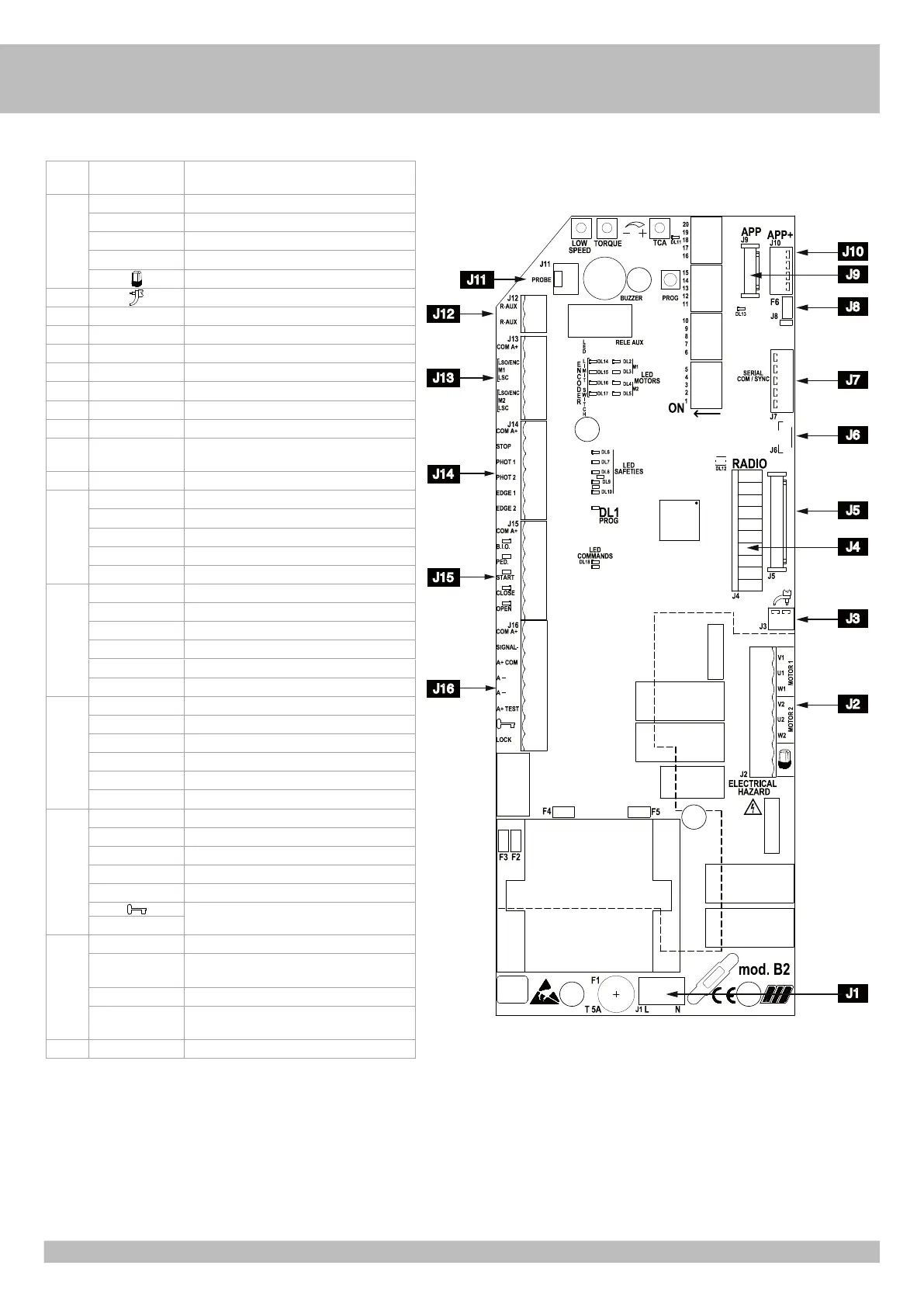

POINT A - CONTROL PANEL FEATURES
J1 N -L Main power supply 230 Vac 50/60 Hz
(120V/60Hz upon request)
J2 U1 MOTOR 1 COMMON CONNECTION
V1 - W1 MOTOR 1 PHASES AND CAPACITOR CONNECTIONS
U2 MOTOR 2 COMMON CONNECTION
V2 - W2 MOTOR 2 PHASES AND CAPACITOR CONNECTIONS
Flashing light (max 40W )
J3
Radio Antenna 433MHz
J4 RADIO Connector for radio receiver RIB, 24 Vdc supply
J5 RADIO Connector for radio module ACG8069
J6 reserved
J7 SERIAL COM/SYNC Connector for serial connection
J8 RS485 termination of J10
J9 APP Connector for APP Card
J10 APP+ Connector for APP+ card
J11 PROBE Terminal block to connect the heater sensor only
for operators KING ICE and KING EVO ICE
J12 R-AUX Auxiliary relay contact (NO) Max 700 W
J13 COM A+ Common contacts / Positive 24 Vdc
LSO M1/ENC Opening limit switch M1
LSC M1 Closing limit switch M1
LSO M2/ENC Opening limit switch M2
LSC M2 Closing limit switch M2
J14 COM A+ Common contacts / Positive 24 Vdc
STOP STOP impulse contact (NC)
PHOT 1 Photocells contact 1 (NC)
PHOT 2 Photocells contact 2 (NC)
EDGE 1 Edge 1 contact (NC)
EDGE 2 Edge 2 contact (NC)
J15 COM A+ Common contacts / Positive 24 Vdc
B.I.O. Contact (NO) dedicated to a clock
PED. Pedestrian opening contact (NO)
START Single pulse contact (NO)
CLOSE Closing impulse contact (NO)
OPEN Opening impulse contact (NO)
J16 COM A+ Common contacts / Positive 24 Vdc
SIGNAL - Gate open state (24 Vdc 3 W max)
A+ COM + 24Vdc accessories power supply
A - - 24Vdc accessories power supply
A+ TEST + 24Vdc photocells self-test power supply
Electric lock connection (MAX 15W 12V)
LOCK
PROG Programming button
TCA Trimmer for automatic closing time adjustment
(DISABLED DEFAULT AND DL11 LED OFF)
TORQUE Electronic torque regulator
LOW SPEED Electronic regulator for low speed on approach
motor (See chart 1)
F1 T 5A Motors protection fuse
J4
J2
J1
J3
J5
J7
J6
J8
J10
J9
J12
J13
J11
J14
J16
J15
