RIB PRINCE 24V - INSTALLATION PRINCE; PRE-INSTALLATION CHECK LIST; EMERGENCY MANUAL RELEASE; FIXING THE ACTUATOR ATTACHMENT TO THE COLUMN

28
28
INSTALLATION PRINCE
G
B
COMMAND TYPE USE OF THE SHUTTER
 Skilledpersons Skilledpersons
Unrestricteduse
 (outofpublicarea) (publicarea)

withmannedoperation A B nonpossibile
withvisibleimpulses
 CorE CorE CandD,orE
(e.g.sensor)

withnotvisibleimpulses
 CorE CandD,orE CandD,orE
(e.g.remotecontroldevice)
automatic CandD,orE CandD,orE CandD,orE
A:Commandbuttonwithmannedoperation,likecodeACG2013
B:Keyselectorwithmannedoperation,(gateoperatingaslongasthebuttonisheld
pressed)likecodeACG1010.
C:Adjustablepowerofthemotor.
D:Safety edges to keep thrust force within the limits of EN12453 regulation -
AppendixA.
E:Photocells,likecodeACG8026(toinstallevery60÷70cmfromtoptobottomof
thegate,toamaximumof2,5m-EN12445point7.3.2.1)
Parts to install to comply EN 12453 standard COMMAND TYPE
PRE-INSTALLATION CHECK LIST
The gate leaves must be firmly fixed to the hinges on the gate pillars, they
must not flex during the movement and they must swing without any friction.
Before installing the operator, make sure you have enough room to fix the
operator on the pillar.
In case the gate is like the one depicted in Pic. 1, there is no need for any
modification.
Gate features and installation must comply with local regulations and
standards.
The gate can be automated only if it is in good conditions and complies with
EN12604 norms.
The gate leaf must not have a pedestrian doors in its frame. Should there
be a pedestrian opening, take the appropriate steps according to EN12435
norms (e.g. cutting out the motor when the pedestrian door is opened by
fixing a safety micro switch connected to the control board).
Make sure not to create any trapping points or areas (e.g. with the gate
completely opened, between any opening in the gate frame and the side
wall).

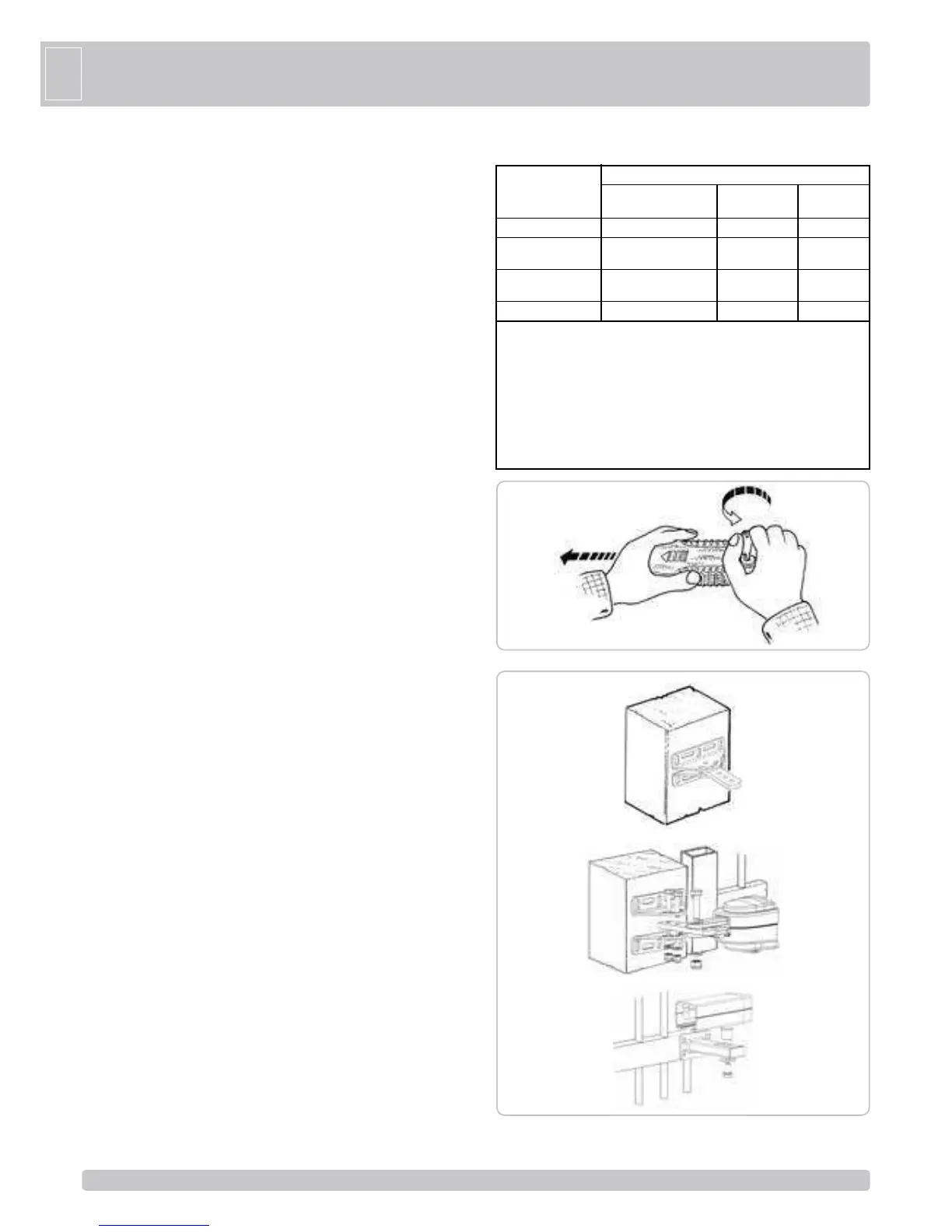

EMERGENCY MANUAL RELEASE
This applies only if the unit is not equipped with back-up batteries. In case
of a black-out, the gate can be pulled open after the operator has been
unlocked with the emergency key provided (rotate the key by 90° clockwise,
Pic. 3).
Caution
In order to be able to manually open the gate leaf make sure of the following:
- The gate leaves must be endowed with appropriate handles;
- Position of the handles onto the gate leaves must be in risk free area;
- The manual force necessary to move the gate leaves should not be higher
than 225 N, in case of installations at domestic/private dwellings, and 390N
in case of installations in business premises (according to points 5.3.5 of
the EN12453 norm).
Note: in case of an installation with an overlapping two leave swing gate
to ensure a safe/proper locking a mechanical bolt must be installed
along with an electric lock. The mechanical bolt (ACG5000) must be
installed at the bottom of the first gate leaf to close so that it will be
simply operated by the pressure of the second gate leaf. The electric
lock will simply latch one gate leaf to the other.
FIXING THE ACTUATOR ATTACHMENT TO THE COLUMN
To obtain a correct movement of the gate leaf, it is necessary to comply with
the measurements given.
In case an iron pillar is available, weld the bracket straight to it.
In case you need to fix the bracket onto a concrete pillar, use the fixing plate
as shown in picture 4, that will have to be fastened with 4 Fischer screws
of Ø 8 mm.
In case you have a wall parallel to gate leaves when in open position, you
must allow for a niche in which the operator can fit in.
FIXING THE ACTUATOR ATTACHMENT TO THE GATE
Weld the second bracket to the gate (pictures 5,6)
During installation make sure to comply with the measurements mentioned
in the table below.
Fix the PRINCE and try several times to open and to close the gate,
controlling that the cover does not touch the moving gate.
