MECHANICAL STOPPER - OPTIONAL (Code ACG8088)
Optional mechanical stopper to stop the closing, if the gate is not fitted with
a floor stopper.
MECHANICAL STOPPER ADJUSTMENT

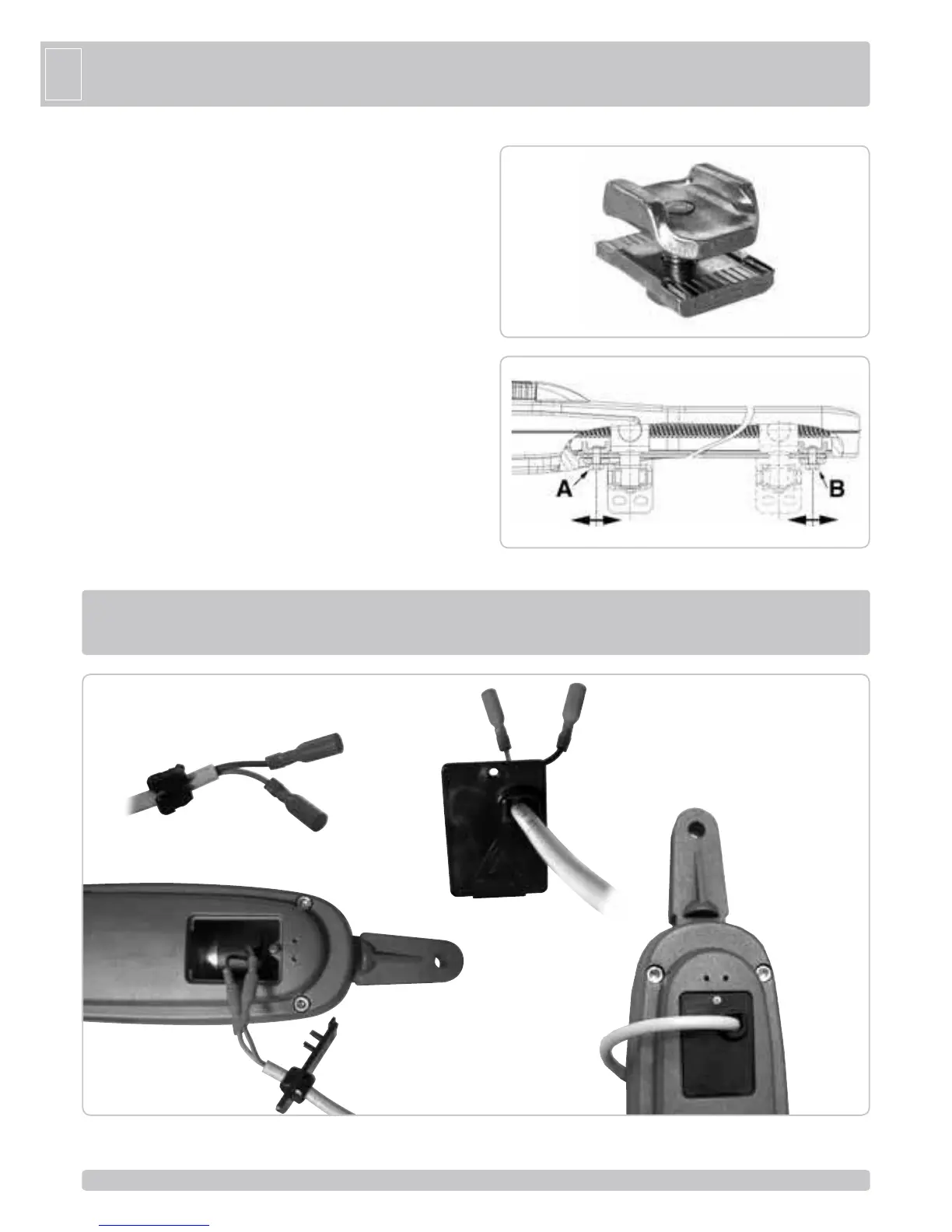

To adjust the stoppers you have to follow the scheme (Pic. 9).
To set the opening limit it is enough to fix the stopper (A) in the needed
position by tightening the 8mA screw with a n. 13 key.
To obtain the desired closing limit you must adjust the stopper (B)
(OPTIONAL) in the needed position and tighten it as for stopper (A).
MAINTENANCE
Maintenance should be carried out by skilled and qualified staff only, after
switching off the mains supply.
Regularly lubricate the hinges of the gate every 6 months and keep the
thrust needed to move the gate leaf monitored (according to EN12453).
8
9
ELECTRIC CONNECTIONS
A B
C D
To Next Page
