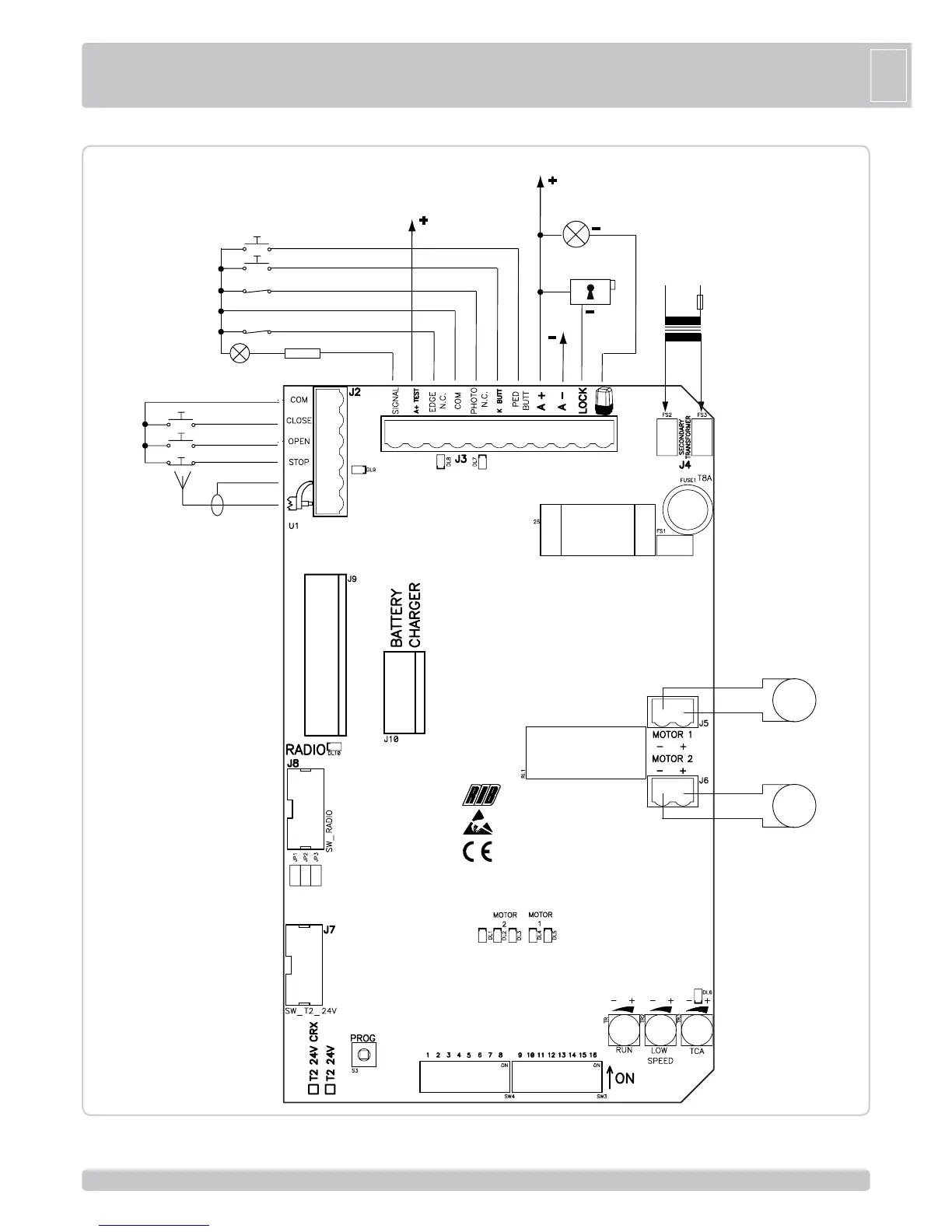

RIB PRINCE 24V - Page 6

31
31
G
B
ANTENNA
ANTENNA
BRAIDING
CLOSE
OPEN
STOP
FUSE
T 2 A
PHOTOCELLS
STEP BY STEP
COMMON
COMMON
24Vdc 0,8A ± 15% for ACCESSORY SUPPLY
24Vdc 0,8A ± 15% for AUTOTEST SAFETY STRIPS
BLINKER
24Vdc 20W
LED
R=2,2K 1/4W
ELECTRIC
LOCK
PEDESTRIAN
SAFETY STRIPS
POWER SUPPLY
230Vac 50 Hz
TRANSFORMER
M1
M2
T2 24V code BC07088
T2 24V CRX code BC07089
