RIB PRINCE 24V - Column Attachment

29
29
G
B

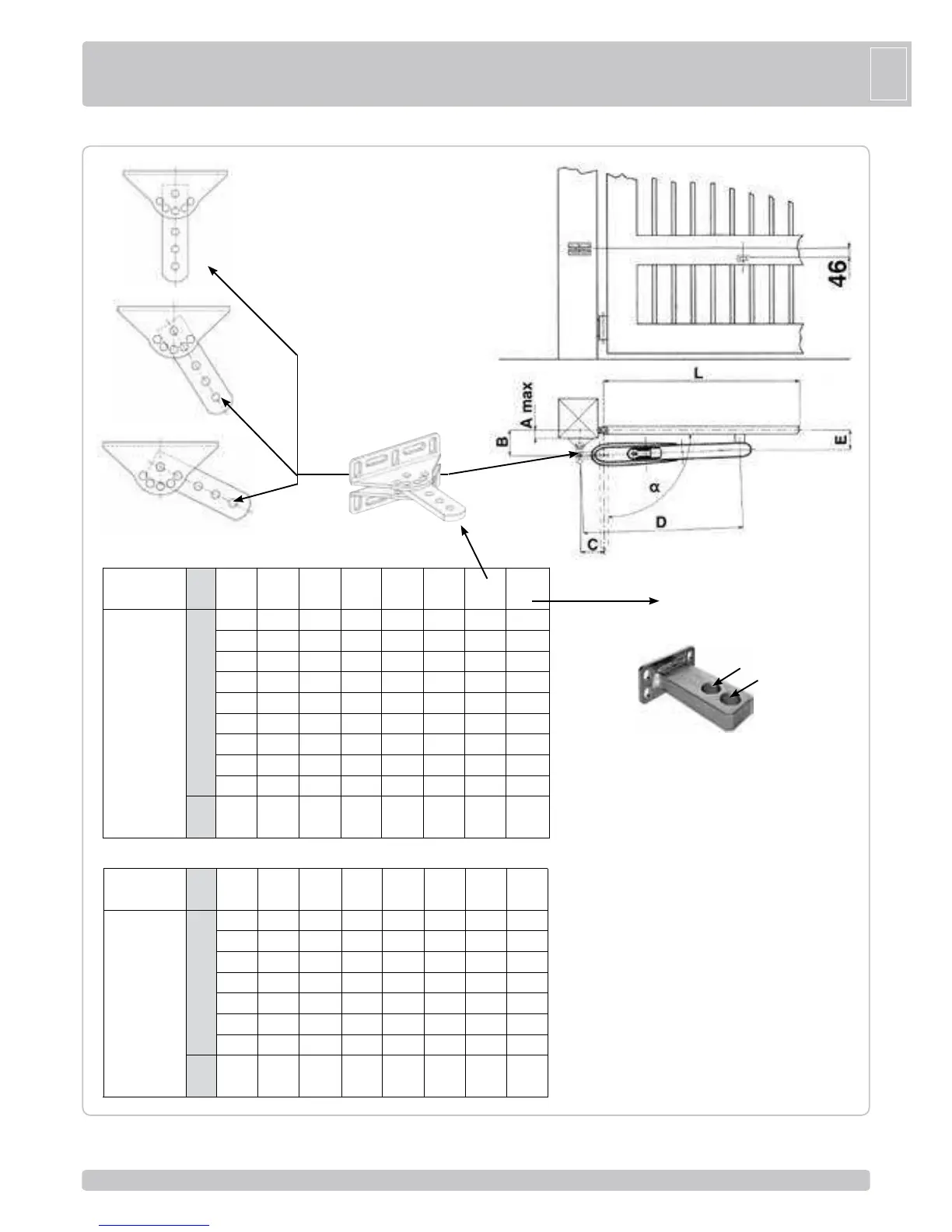

In order to carry out a proper
installation of the operator, it is
necessary to comply with the
geometry measurement shown in
the tables below.
S1
Z
Y
X
S2
 Z Y X
S3
 Z Y X
COL
Columnattachment
7
If the pillar is too large, and it is not possible to adjust
the actuator complying the measurements (B), you
must make a niche in the pillar or you have to move the
gate closer to the edge of the pillar.
ANT
Leafattachment
Respectthemeasuresforacorrectinstallation
1÷2
90°
L
Min.÷Max
α
A
max
T
sec
COL ANT
B C D E
110°
 0 100 100 765 90 13,5 S2-X A
 20 100 100 765 90 13,5 S2-Y A
 40 100 100 765 90 13,5 S3-X A
 60 110 100 765 90 14 S3-Y A
 80 140 110 765 115 17 S3-X B
 100 160 110 765 115 18 S3-X B
 120 180 110 765 115 19,5 S3-X B
 140 210 110 765 115 21,5 S1-Z B
 150 220 120 765 115 23 S1-Z B
  
 20 110 140 765 90 17 S1-Y A
MeasuresWITH2MECHANICALSTOPPERS
110°
90°
L
Min.÷Max
α
A
max
T
sec
B C D E
1÷2
COL ANT
 0 100 100 730 90 13,5 S2-X A
 20 100 100 730 90 13,5 S2-X A
 40 100 100 730 90 13,5 S3-X A
 60 110 100 730 90 14 S3-X A
 80 140 110 730 115 17 S3-X B
 100 160 110 730 115 18 S3-X B
 110 180 120 730 115 20 S1-Z B
    
 20 100 140 730 90 16 S2-Y A
B
A
