CAUTION: First, disconnect the vacuum
cleaner from the electrical outlet.

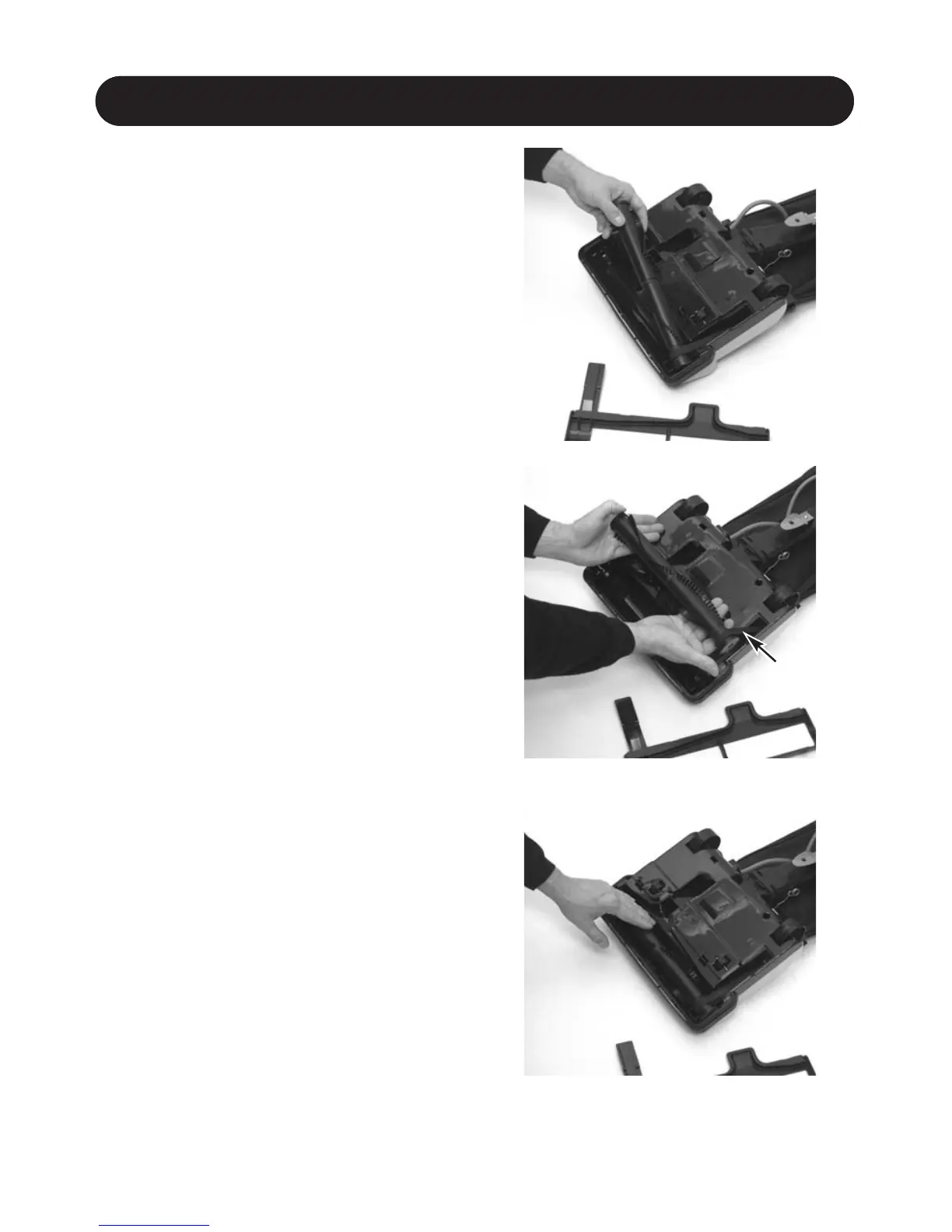

1. Turn the unit over and remove
the bottom plate (see "How to
Remove Bottom Plate").
2. Remove the brush roll and the
worn or broken belt from the
brush roll pulley and the motor
drive shaft (diagram 13).
3. Loop the new belt around the
motor drive shaft and the brush
roll (diagram 14).
4. Reinstall the brush roll back into
the housing. Turn the brush roll by
hand, making sure the belt is not
twisted and all rotating parts
move smoothly (diagram 15).
5. Reinstall the bottom plate (see
"How to Install Bottom Plate").
NOTE: To ensure maximum cleaning
efficiency, the belt should be checked
regularly to be sure it is in good con-
dition. Check to see if the belt is
stretched, cracked, or if excessive
slipping has occurred. Replace if
needed.
9
HOW TO CHANGE THE BELT
New belt
13
14
15
