Printed in China Copyright © 2002 G348-8600
○○○○○○○○○○○○○
C
Lower the external tray toward you.
ZHXH280J

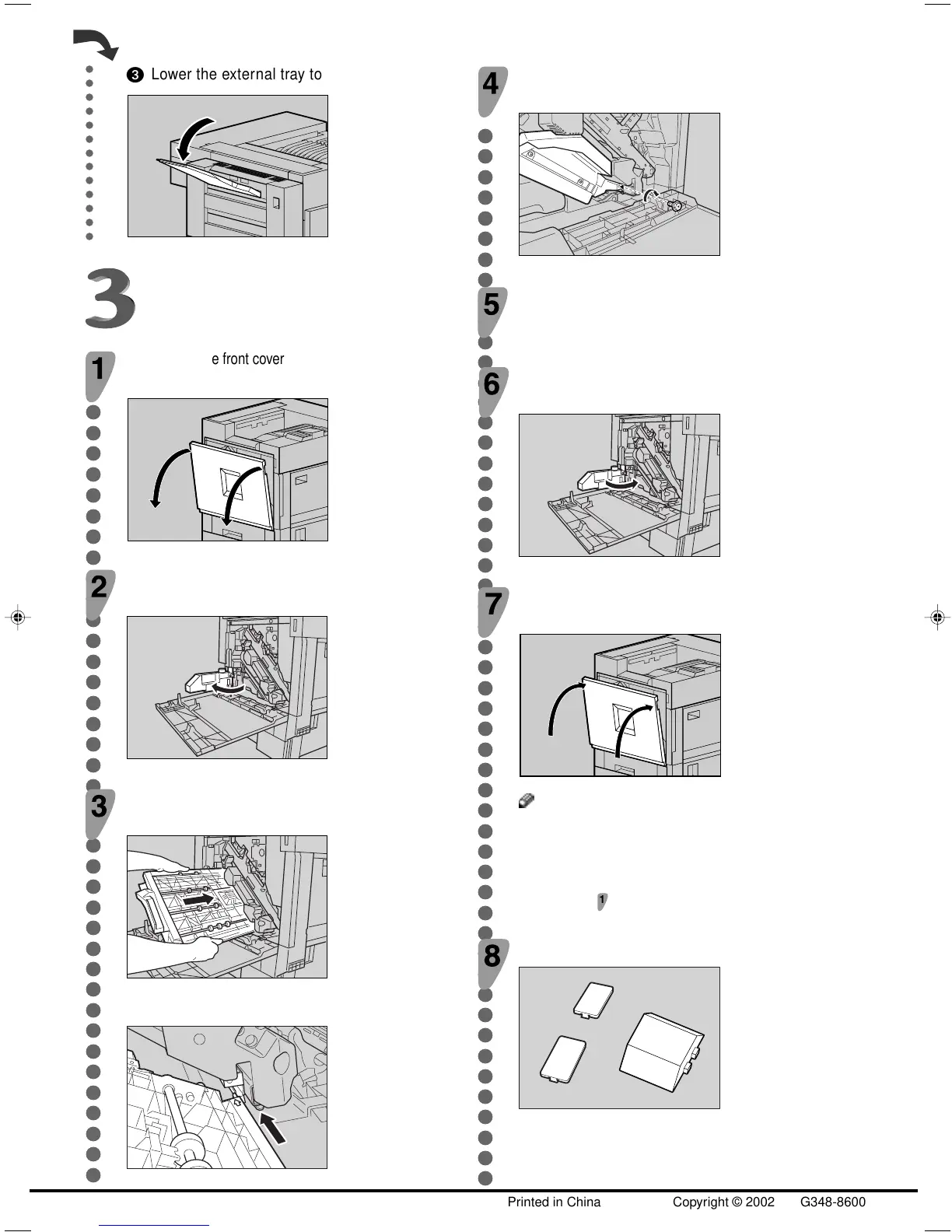

Installing the Duplex Feed Unit
Slowly open the front cover by pulling on the two areas on
the left and right.
ZDJH007J
Slowly open the waste oil bottle in the direction of the
arrow.
ZHXH150J
Holding the duplex feed unit using both hands, place it on
the vertical rail, and then slide it slowly in until it stops.
ZHXH290J
The vertical rail is in the position, as shown.
ZHXH300J
Fasten the duplex feed unit using a short screw and the
provided screwdriver.
ZHXH310J
Be sure to return the provided screwdriver to its original
position on the inside of the front cover.
This completes installation of the duplex feed unit.
Slowly push back the waste oil bottle in the direction of
the arrow.
ZHXH160J
Slowly close the front cover by pressing the two areas on
the left and right.
ZDJH041J
Note
❒ After finishing the installation, you can check the duplex unit is
installed properly: Print the configuration page from the "List/Test
Print" menu. If it is installed properly, you will see "Duplex Unit"
appear in the "Options" list. (G080)
❒ If the duplex unit is not installed properly, repeat the procedure
from step
. If you cannot install it properly even after
reinstallation, contact your sales or service representative.
Check for leftover parts. You will not need these.
ZHXH011N
