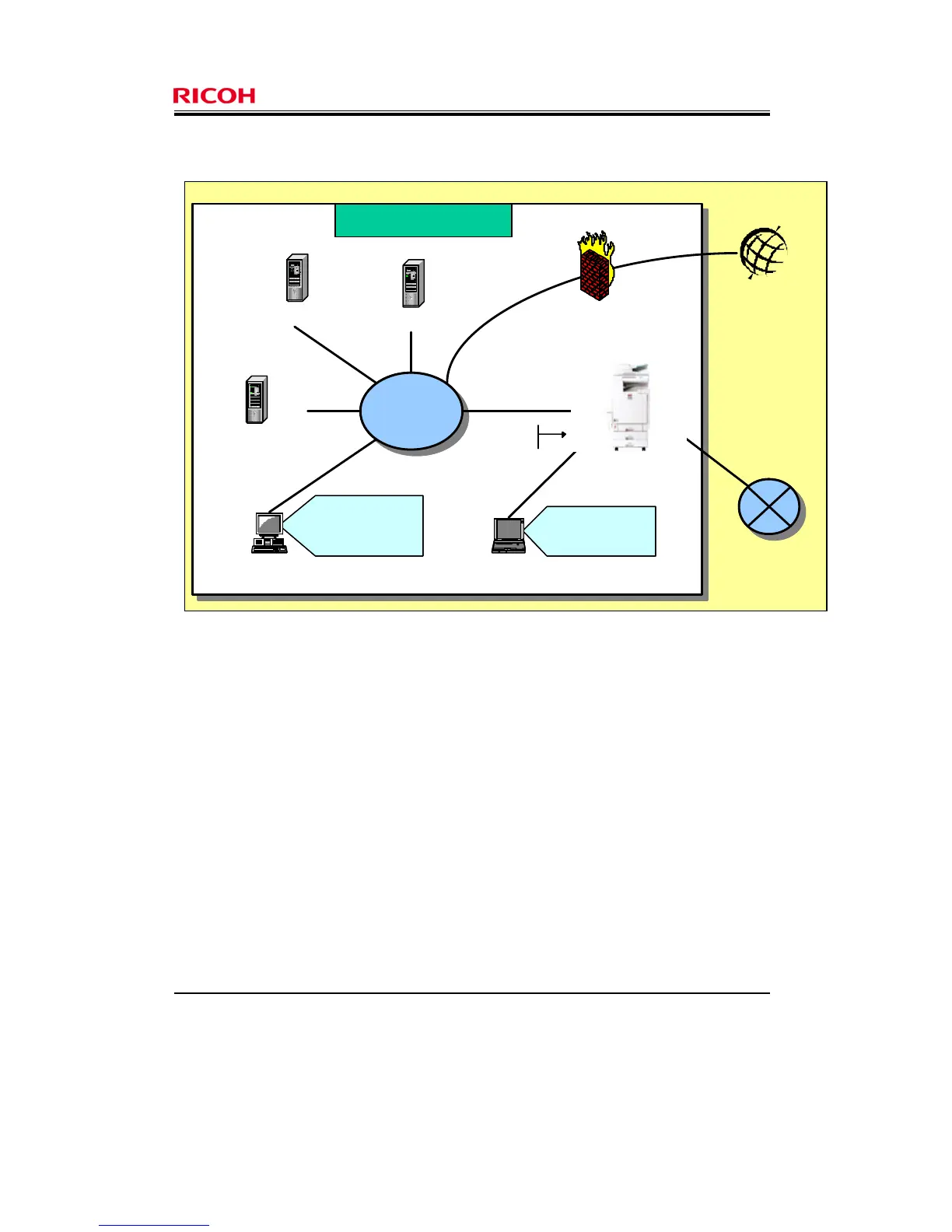

Figure 1: Example of TOE environment
The following describes non-TOE configuration:
Internal Network
The internal network connects the TOE with various types of servers (FTP, SMB, and SMTP servers) and
client computers. It is connected to the Internet via firewall. IPv4 is for the protocol of the internal network.
Client Computer
A Web browser of a client computer that is connected to the internal network allows users to access and
operate the TOE, and permits data communications. Internet Explorer 6.0 or later must be pre-installed on
the client computer.
To print and fax from the client computer via the internal network or USB connection, the printer driver
(RPCS printer driver for Ricoh imagio MP 7501/6001 series MFP and the PCL printer driver for Ricoh
Internal
network
Internal
network
Internet
(External network)
Telephone line
Office
Firewall
USB Connect
Printer driver
Fax driver
Web browser
Printer driver
Fax driver
MFP
(TOE)
Client computerClient computer
SMTP server
FTP server
SMB server
Internal
network
Internal
network
Internet
(External network)
Telephone line
Office
Firewall
USB Connect
Printer driver
Fax driver
Web browser
Printer driver
Fax driver
MFP
(TOE)
MFP
(TOE)
Client computerClient computerClient computerClient computer
SMTP serverSMTP server
FTP serverFTP server
SMB serverSMB server
