1.3 PLATEN ADJUSTMENT

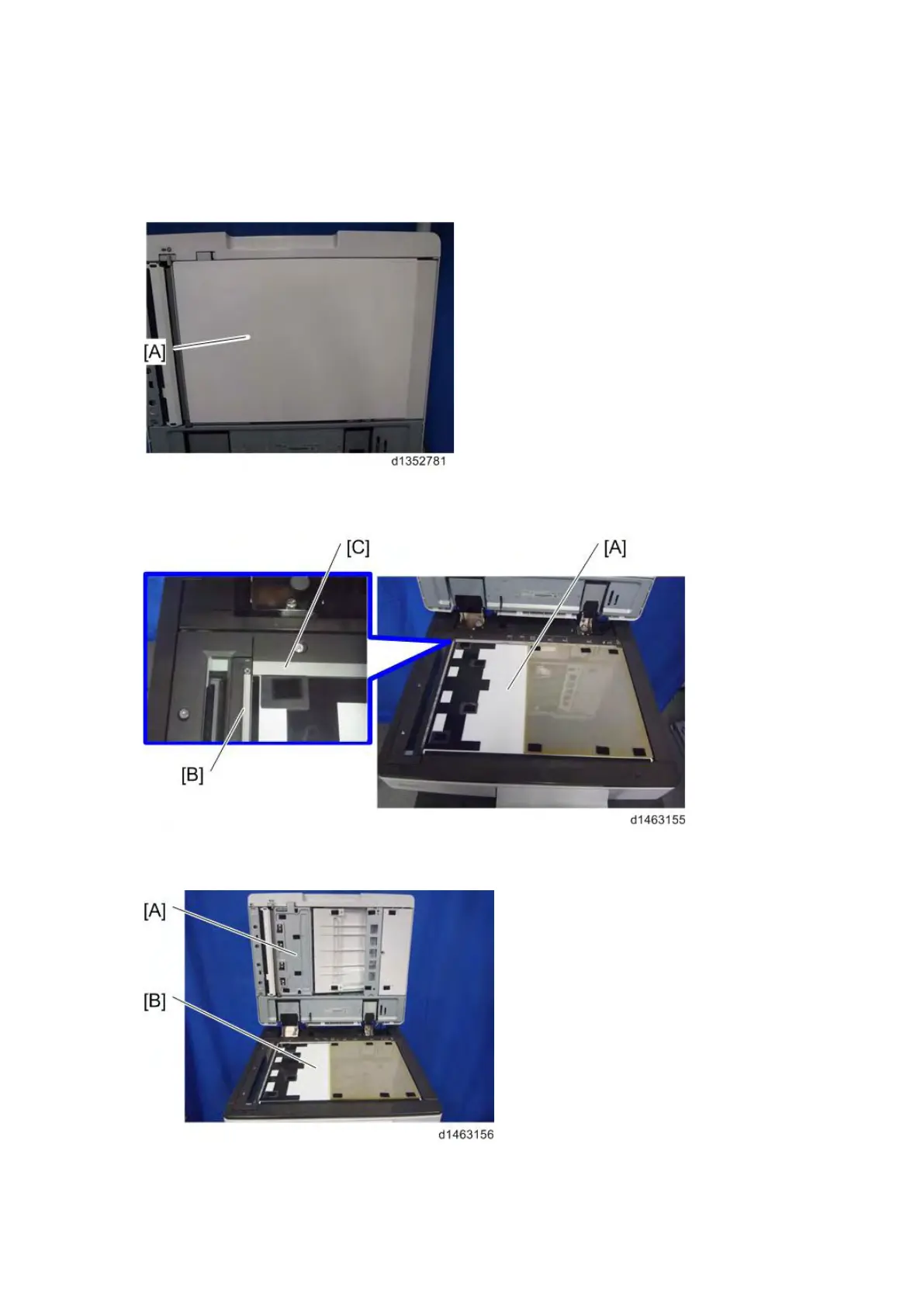

1. Open the ADF and remove the white cover (magic tape×10)
2. Put the white cover [A] in the correct position on the exposure glass, aligning it with
the glass cover [B] and the rear scale [C].
3. Close the ADF [A] slowly and paste the ADF and the white cover [B] with the magic
tapes.
