ADF Front Cover

SM 7 D683

SPDF DF3080

(D683)

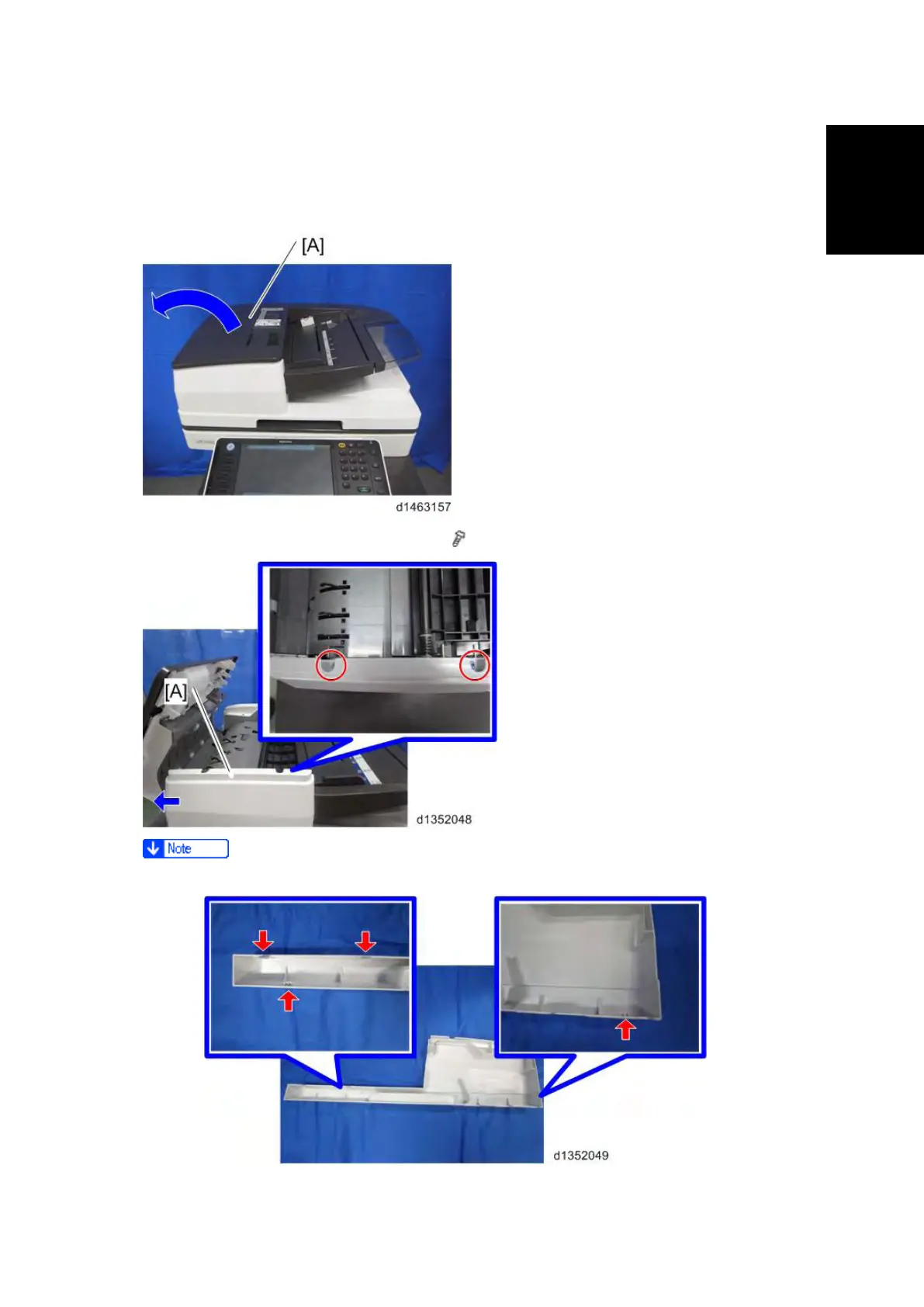

1.4 ADF FRONT COVER

1. Open the feed cover [A].

2. Slide the ADF front cover [A] to the left ( ×2, hook×4)

 Check the position of the hooks in the photo below before removing.
