Scanner Unit

D146/D147/D148/D149/D150 4-38 SM

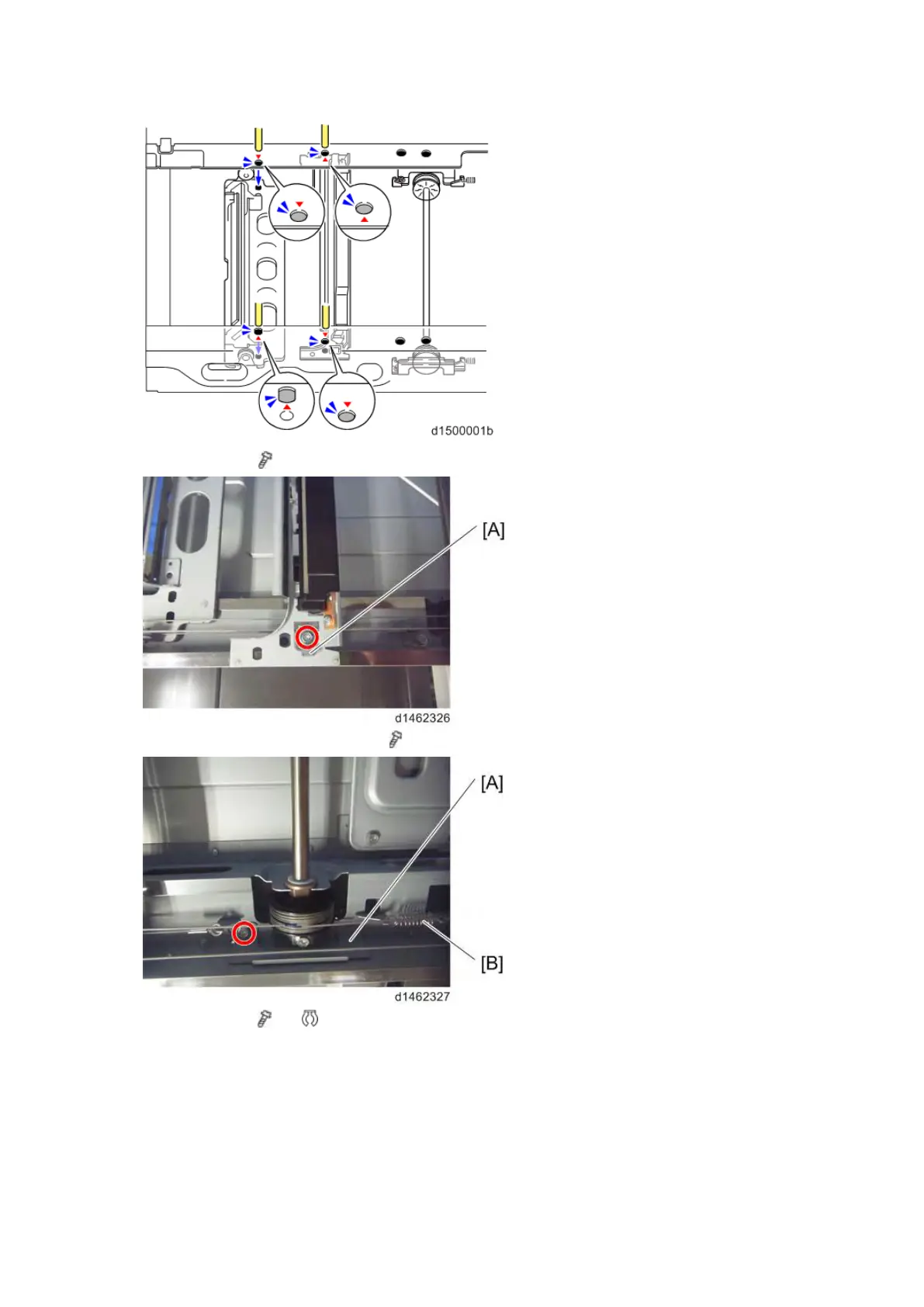

8. Wire clamp [A] (

×1)

9. Wire fixing bracket [A], spring [B] (

×1)

10. Wire pulley [A] (

×1, ×1)
