Drive
274

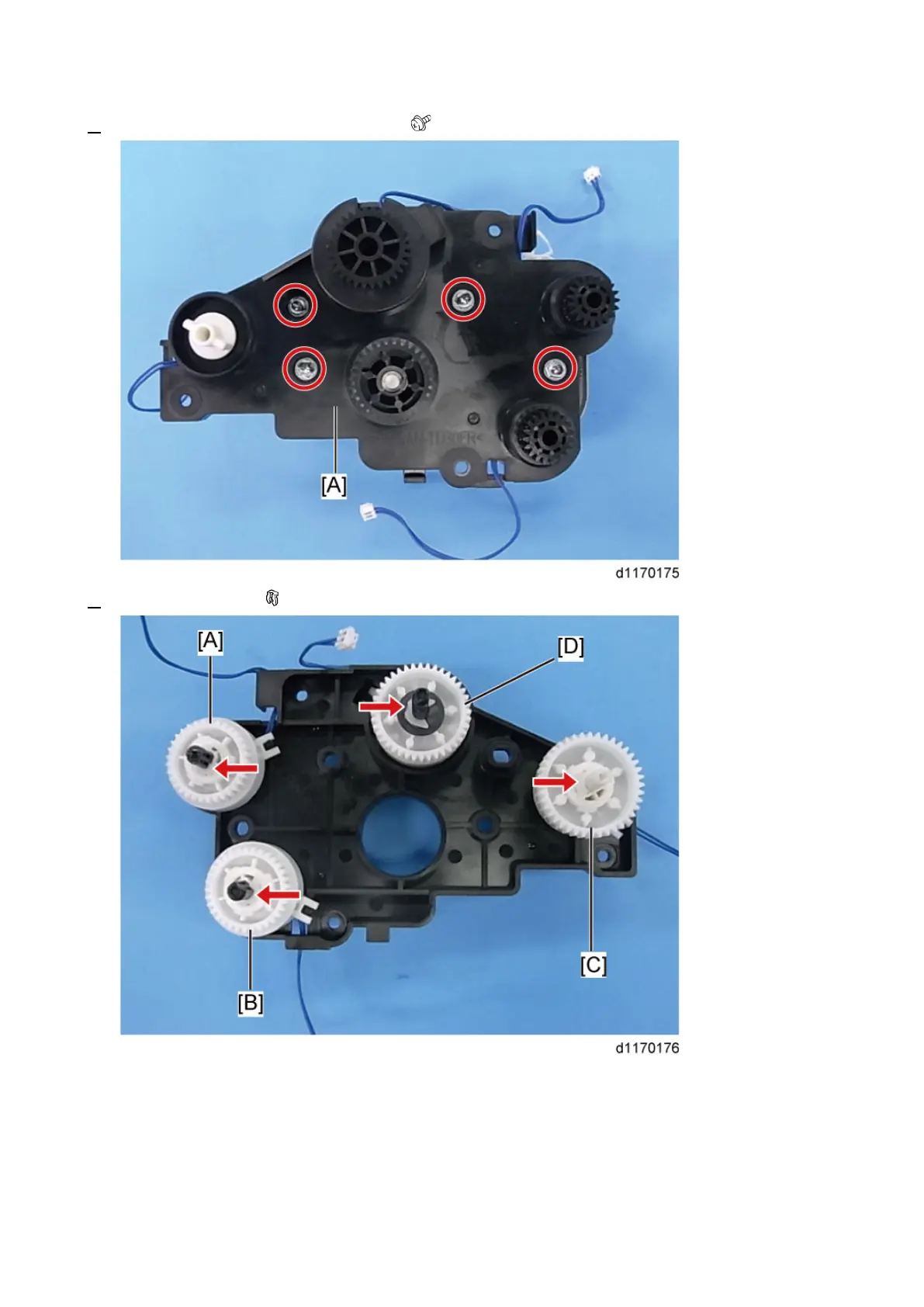

6. Remove the paper transport unit cover [A]. ( × 4)
7. Remove each clutch. ( × 1 each)
[A]: Duplex clutch
[B]: Bypass feed clutch
[C]: Paper feed clutch
[D]: Registration clutch
