Electrical Components
322
Electrical Components

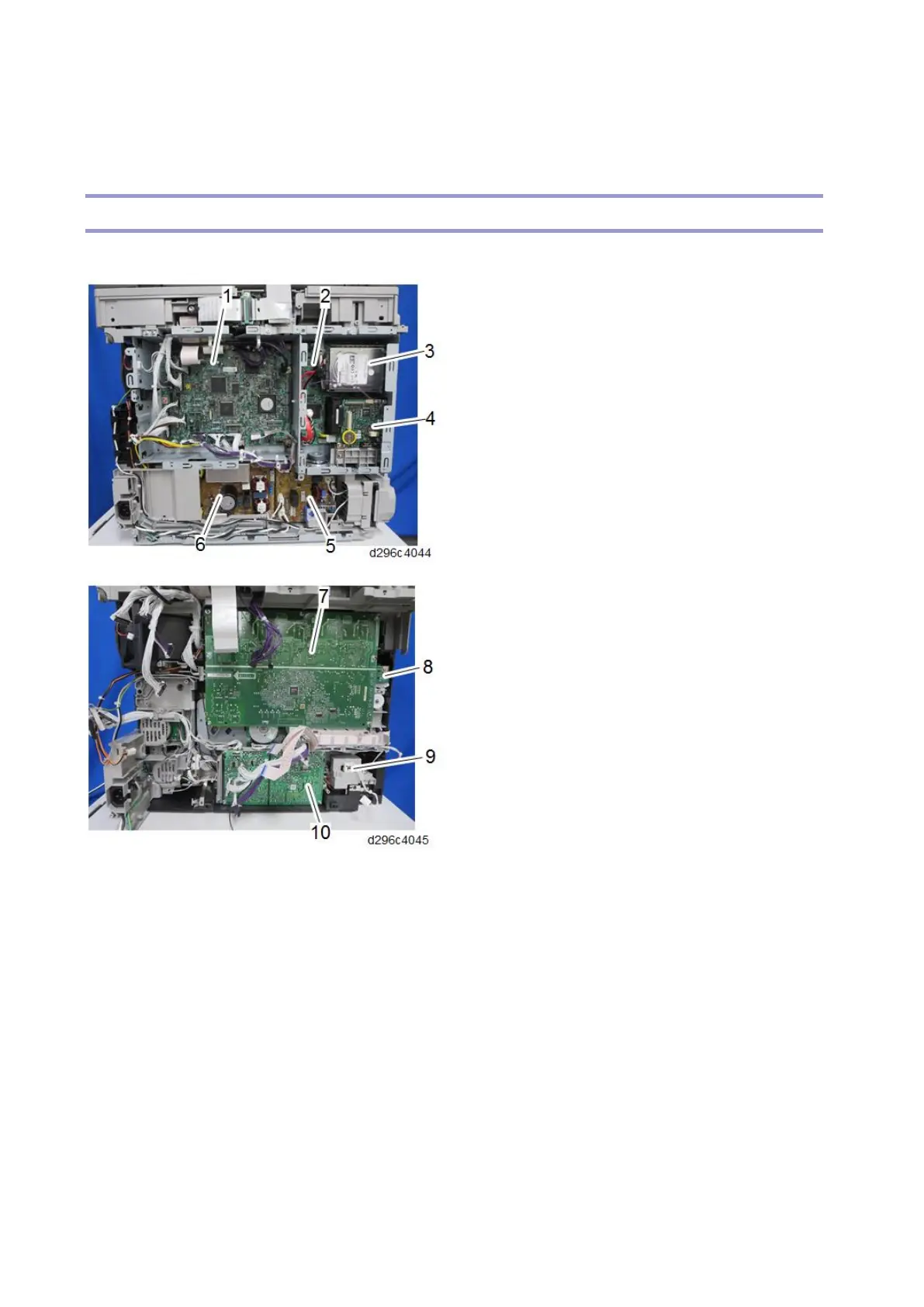

Electrical Components Overview
1. BiCU
2. Controller Board
3. HDD
4. FCU (if the machine has the fax unit)
5. PSU (AC)
6. PSU (DC)
7. Power Pack (Development)
8. Toner Bottle Detection Board
9. AC Detection Board
10. Power Pack (Transfer)
