Electrical Components
333

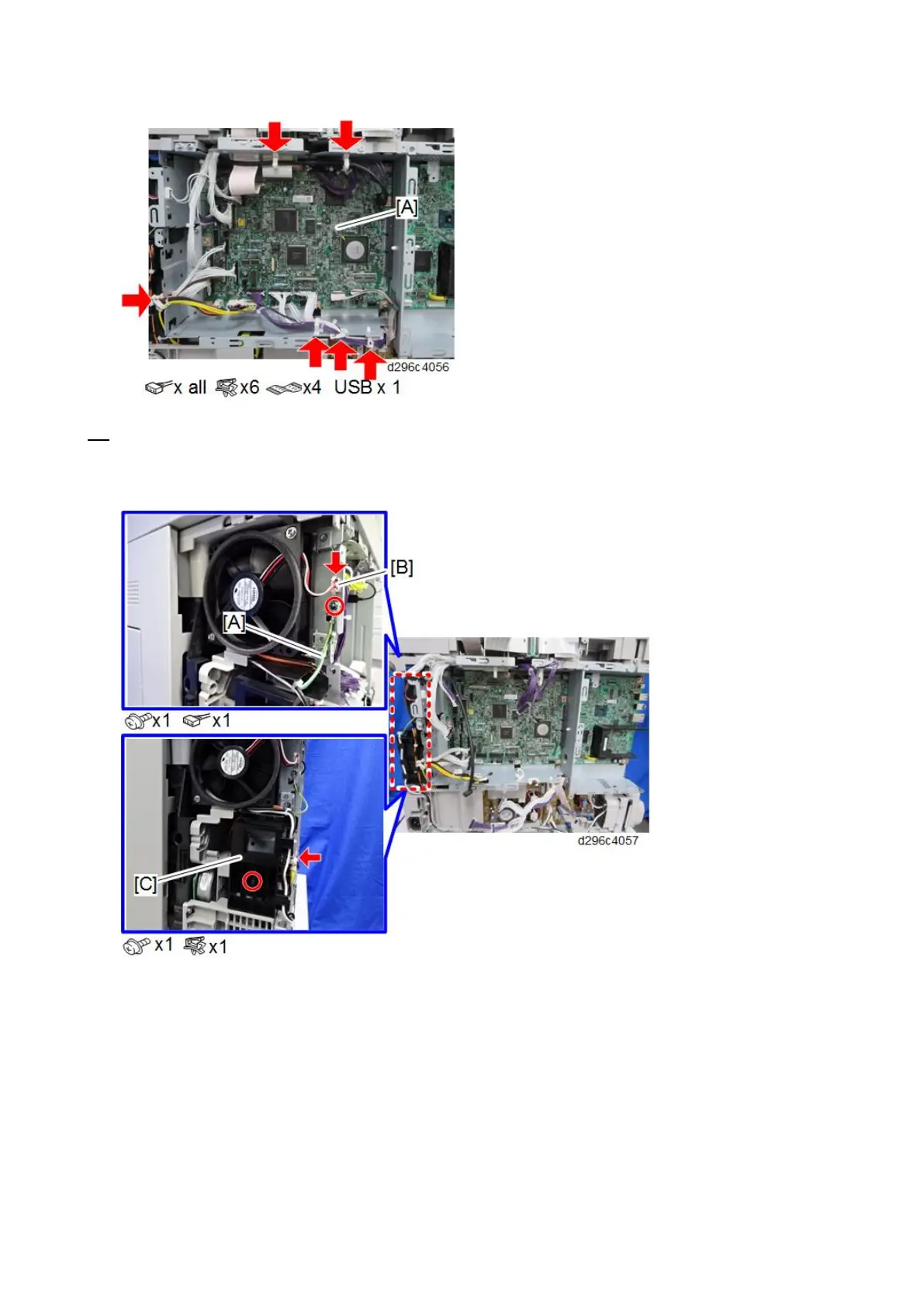

11. Do the following steps:
• Remove the grounding wire [A] and connector [B] from the left side of the controller box.
• Remove the harness guide [C] while releasing the harnesses on it.
