Ricoh D296 - Page 341

Electrical Components
335

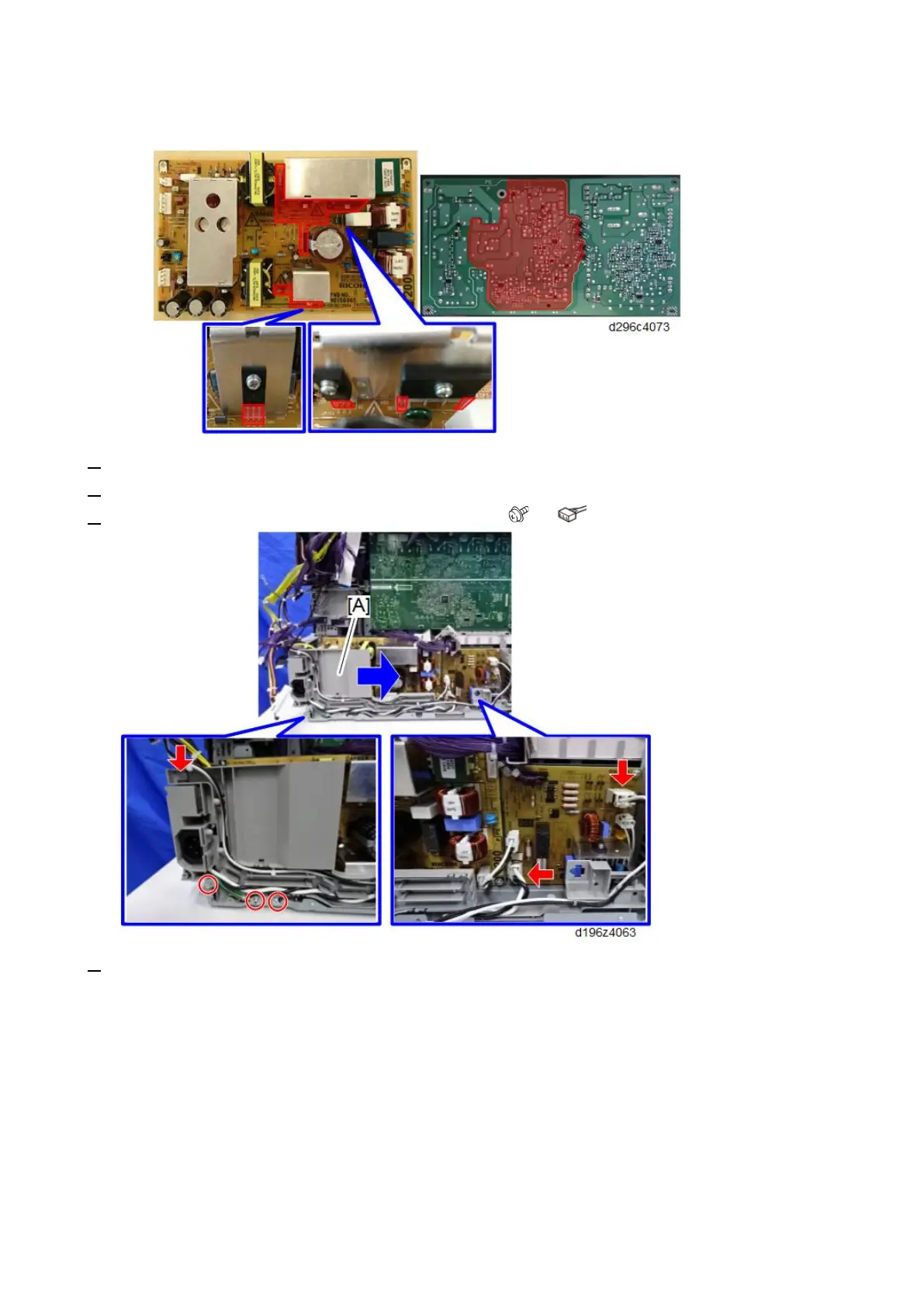

• For 200V:
1. Remove the controller box. (Controller Box)
2. Remove the PSU fan. (PSU Fan)
3. Disconnect the harness and remove the harness guide [A]. ( ×3, ×2, Hook ×1)
4. The next step varies according to the parts that you want to remove.
