Electrical Components
343

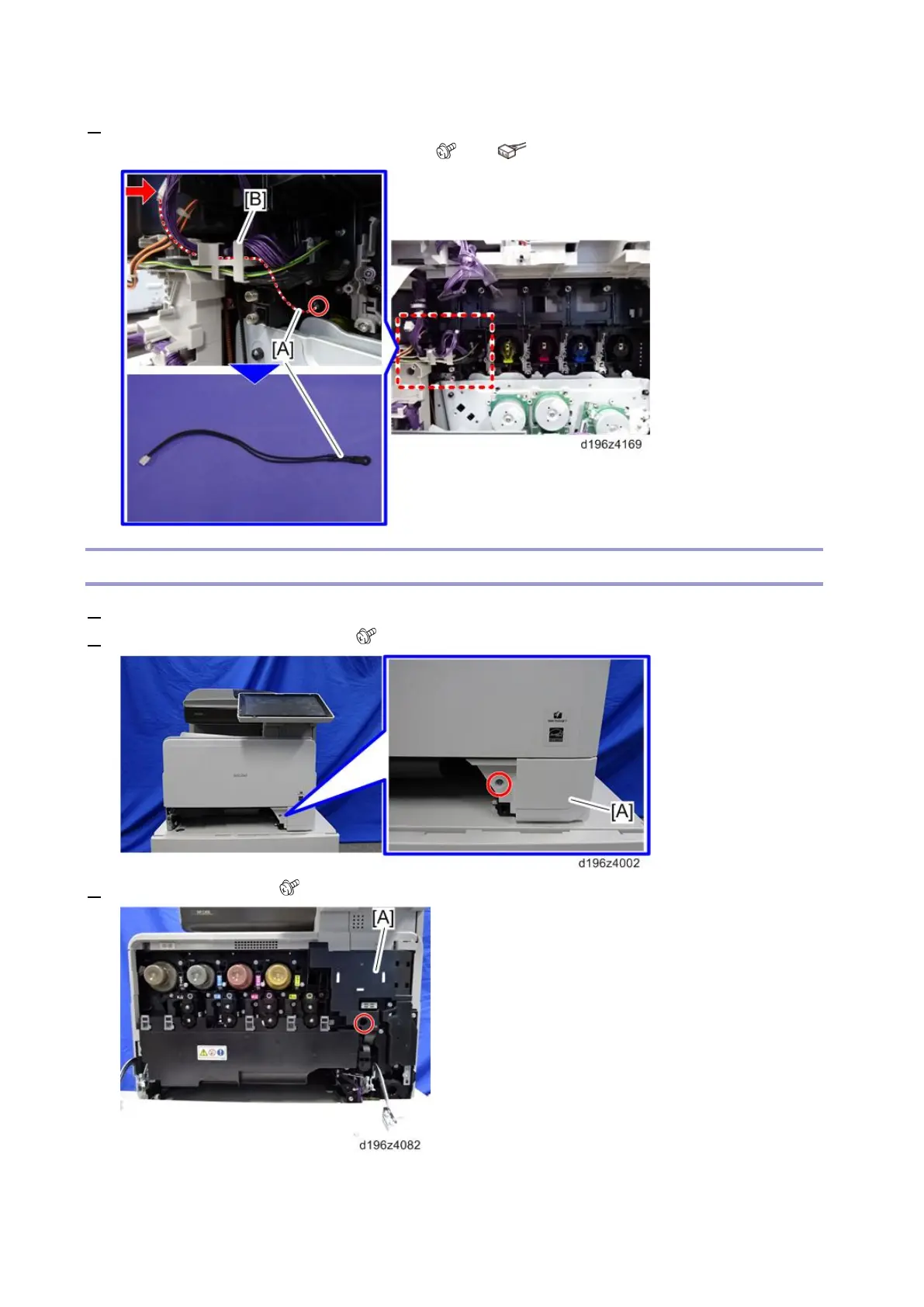

2. Remove the image creation temperature sensor [A] while releasing the harness of the image creation
temperature sensor from the harness guide [B]. ( × 1, × 1)
Interlock Switches
1. Pull out the paper tray.
2. Remove the front lower cover [A]. ( × 1)
3. Remove the cover [A]. ( × 1)
