Ricoh FAX1120L Service Manual

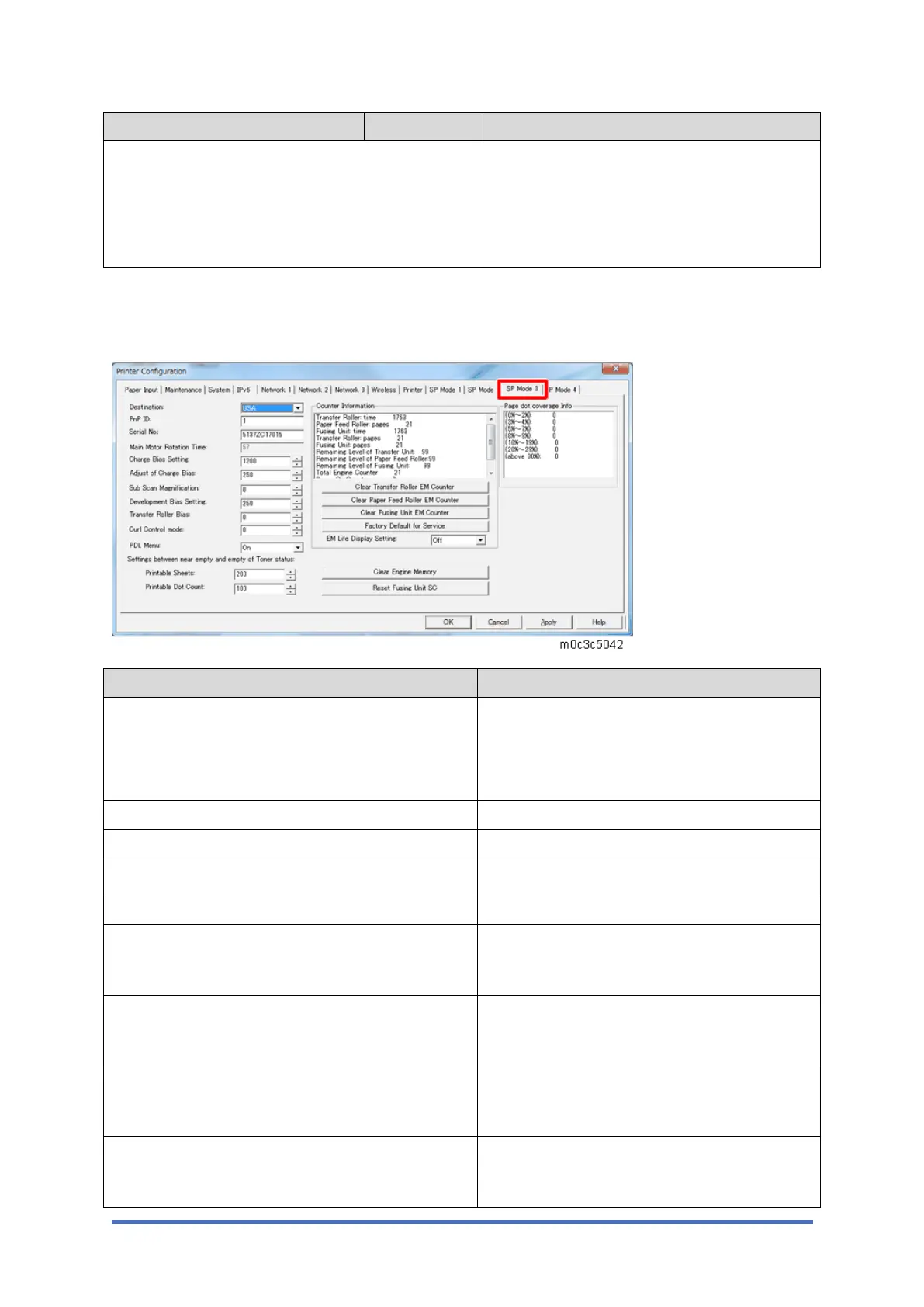

Smart Organizing Monitor (SOM)
M0C3/M0C4/M0C5/M0C6/M0C7 5-50 SM
Group Item Remarks
Jam Counter
Displays Jam Counter for each location.
Total Jam, Tray 1 Jam, Tray 2 Jam, Bypass
Tray Jam, Duplex Jam, Inner Jam, Outer
Jam
*: Default
SP Mode 3
Item Remarks
Destination
DFU
[JPN/ NA/ EU / ASIA/ CHN/ TAIWAN]
PnP ID DFU
Serial No DFU
Main Motor Rotation Time
Displays the main motor rotation time.
Charge Bias Setting [1100 to 1300 / 1200* / 24/step]
Sub Scan Magnification Adjusts the sub scan magnification.
[-8 to 8 / 0* / 1 /step]
Development Bias Setting Adjusts the developer bias.
[270 to 330 / 250* / 15 /step]
Transfer Roller Bias
Adjusts the transfer roller bias.
[-6 to 6 / 0* / 1 /step]
Interval Setting
Corrects the face curl of paper.
0: OFF (32ppm)

Ricoh FAX1120L Specifications

General

Type	Laser Fax
Print Speed	12 ppm
Resolution	600 x 600 dpi
Paper Size	A4
Dimensions	400 x 400 x 300 mm
Weight	10.5 kg
Modem Speed	33.6 kbps
Transmission Speed	3 seconds per page
Printing Method	Laser
Paper Tray Capacity	250 sheets
Document Memory	Up to 42 pages
