1.3 MINIMUM SPACE REQUIREMENTS

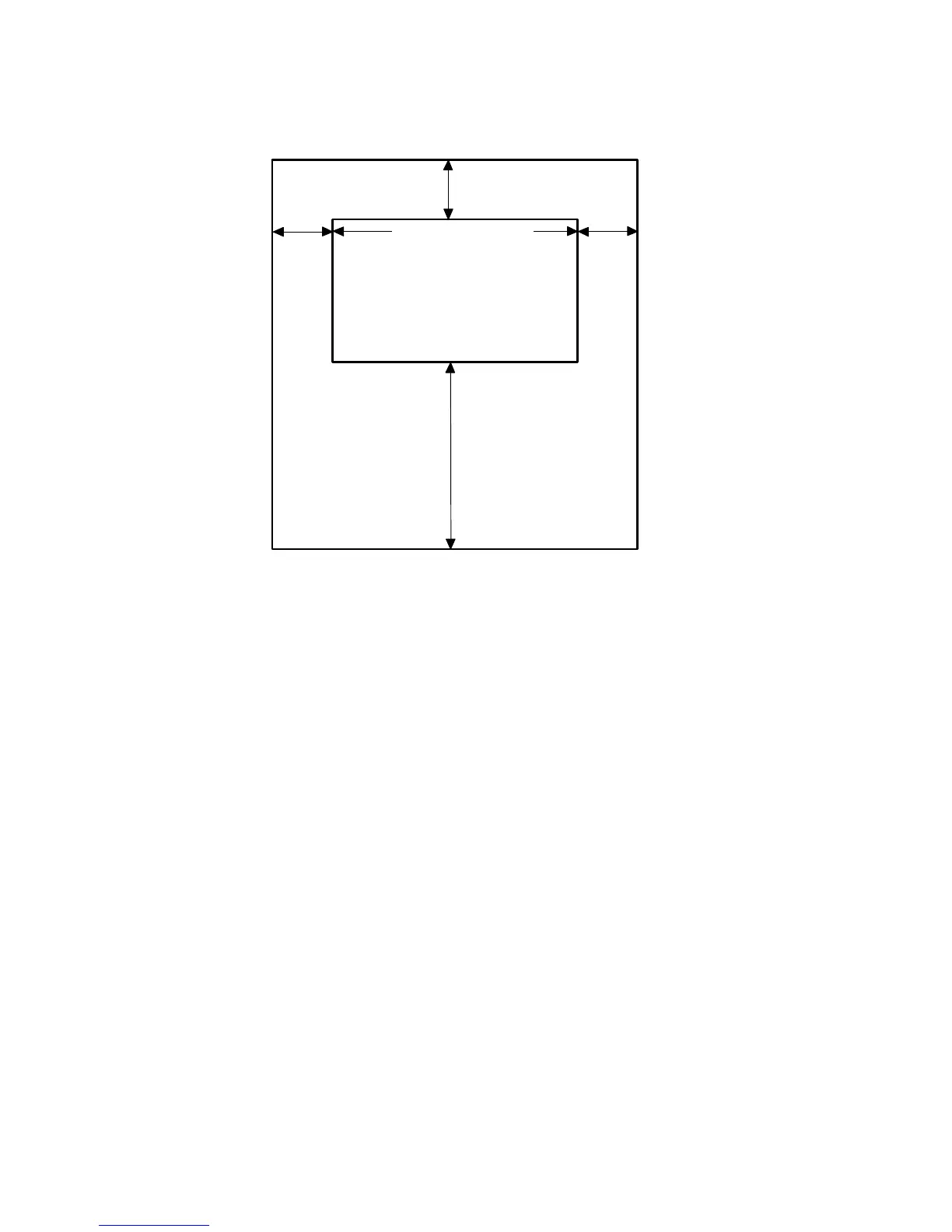

Place the copier near the power source, providing clearance as shown:
NOTE: *1. In machines without an LCT, the distance between the wall
and the edge of the by-pass feed table must be more than 28.5
cm/11.3".
*2. Copier only + Receiving Tray
103.0 cm/40.6" (with LCT: 125.8 cm/49.6")
Copier + A554 Sorter/Stapler
103.2 cm/40.7" (with LCT: 126.0 cm/49.7")
Copier + A555 Sorter/Stapler
100.1 cm/39.5" (with LCT: 122.9 cm/48.4")
Copier + A556 Sorter
96.6 cm/38.1" (with LCT: 119.4 cm/47.1")
(See Note *2)
Your machine
More than
39 cm/15.4"
More than 10 cm/4.0"
More than 70 cm/27.6"
More than
28.5 cm/11.3"
(See Note *1)
REAR
FRONT
