2. COMPONENT LAYOUT

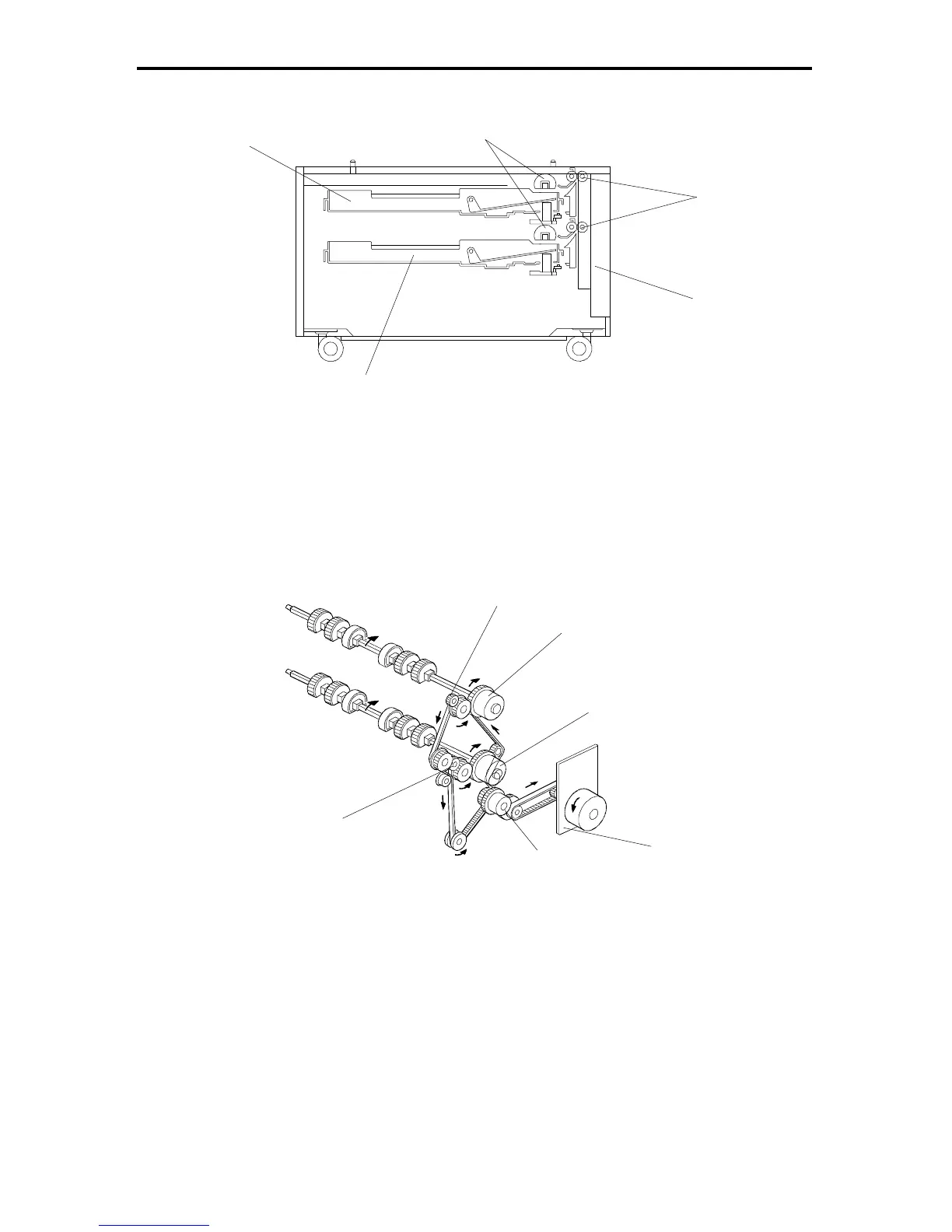

2.1 MECHANICAL COMPONENT LAYOUT
2.2 DRIVE LAYOUT
1. Paper Tray 1
2. Paper Feed Rollers
3. Relay Rollers
4. Lower Right Door
5. Paper Tray 2
1. Vertical Transport Roller Gears
2. Paper Feed Clutch 1
3. Paper Feed Clutch 2
4. Main Motor
5. Relay Clutch
1
2
3
4
5
1
2
4
3
1
5
