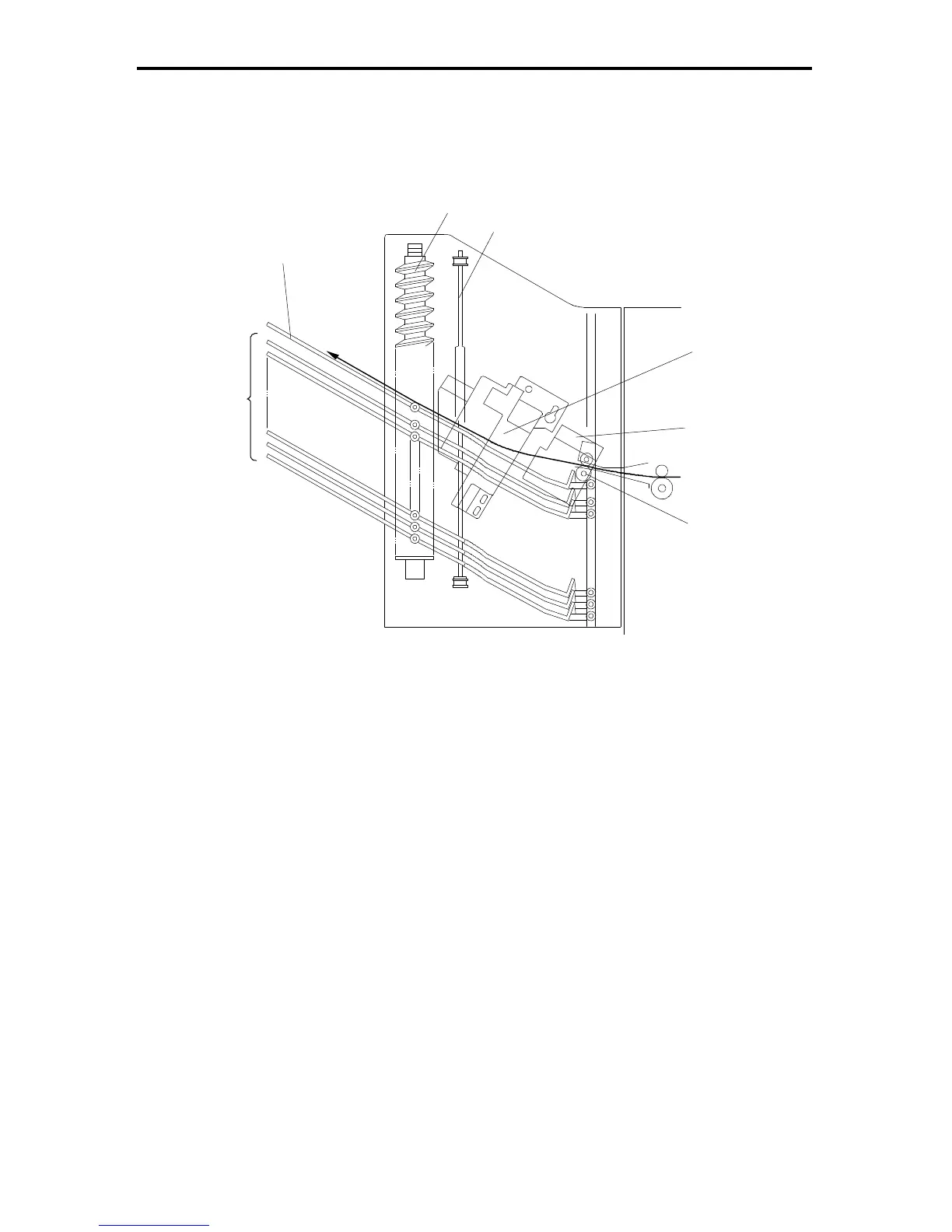

2. COMPONENT LAYOUT
2.1 MECHANICAL COMPONENT LAYOUT
7
1
2
3
4
5
6
1. Helical Wheels
2. Jogger Plate
3. Grip Assembly
4. Transport Rollers
5. Staple Unit
6. Bins
7. Proof Tray
FSM 11-3 FT5535/4527/4522
