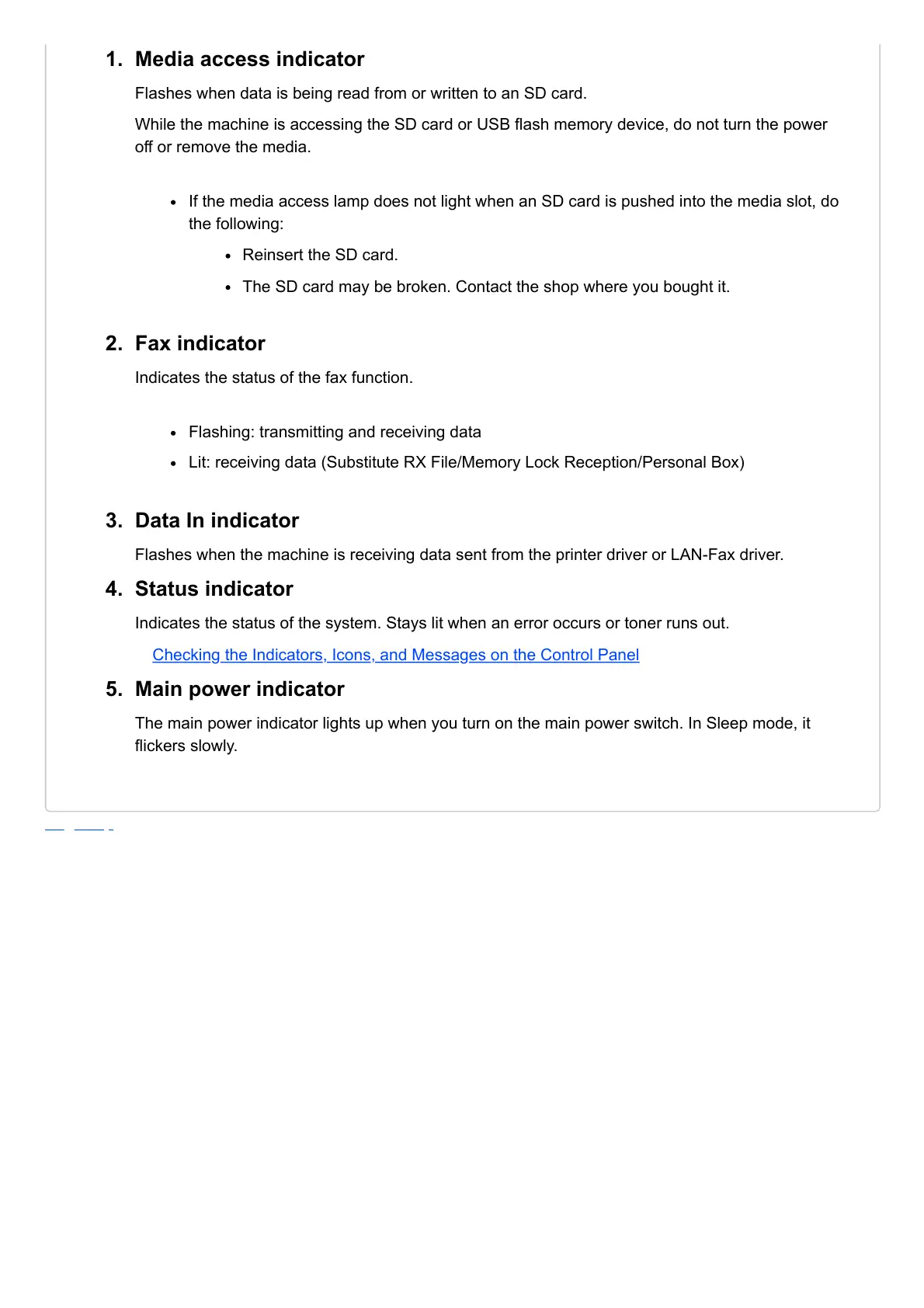

Media access indicator
Flashes when data is being read from or written to an SD card.
While the machine is accessing the SD card or USB flash memory device, do not turn the power
off or remove the media.
If the media access lamp does not light when an SD card is pushed into the media slot, do
the following:
Reinsert the SD card.
The SD card may be broken. Contact the shop where you bought it.
1.
Fax indicator
Indicates the status of the fax function.
Flashing: transmitting and receiving data
Lit: receiving data (Substitute RX File/Memory Lock Reception/Personal Box)
2.
Data In indicator
Flashes when the machine is receiving data sent from the printer driver or LAN-Fax driver.
3.
Status indicator
Indicates the status of the system. Stays lit when an error occurs or toner runs out.
Checking the Indicators, Icons, and Messages on the Control Panel
4.
Main power indicator
The main power indicator lights up when you turn on the main power switch. In Sleep mode, it
flickers slowly.
5.

Ricoh IM 9000 Specifications

General

Resolution	1200 x 1200 dpi
Paper Capacity (Maximum)	8, 700 sheets
First Output Speed	3.9 seconds
Paper Input Capacity (Standard)	4, 300 sheets
Paper Weight	52 - 300 g/m²
Duplex Printing	Standard
Standard Memory	2 GB
Hard Disk Drive	320 GB
Power Source	220 - 240 V, 50/60 Hz
Maximum Paper Size	SRA3
Operating System Compatibility	Windows, Mac OS, Linux
Print Speed	90 ppm
Paper Size	A3, A4, A5, B4, B5
Processor	Intel Atom Processor Bay Trail
Network Connectivity	Ethernet 10 base-T/100 base-TX/1000 base-T, USB 2.0
