Slide 76

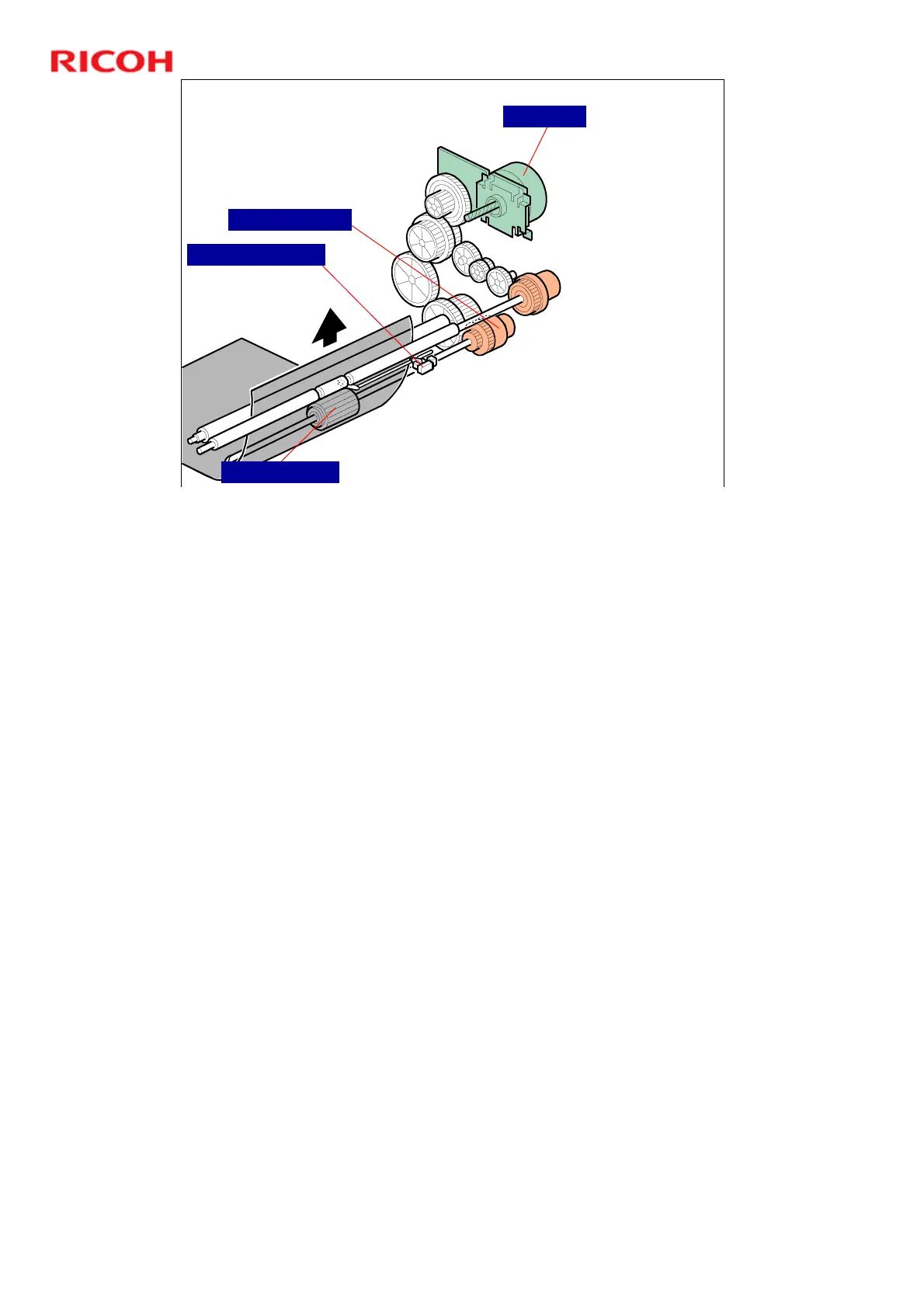

Paper Feed Drive
 Main motor drives
pick-up and feed
mechanism.
 Paper feed
clutches transfer
main motor drive to
paper feed roller.
 When paper feed
clutch turns on,
feed roller starts to
feed paper.
 Paper feed clutch
stays on until
shortly after
registration sensor
has been activated.
Paper feed roller
Paper feed clutch
Registration sensor
Main Motor
.
