Ricoh PB2030 - Parts Layout

1.Mechanism
5

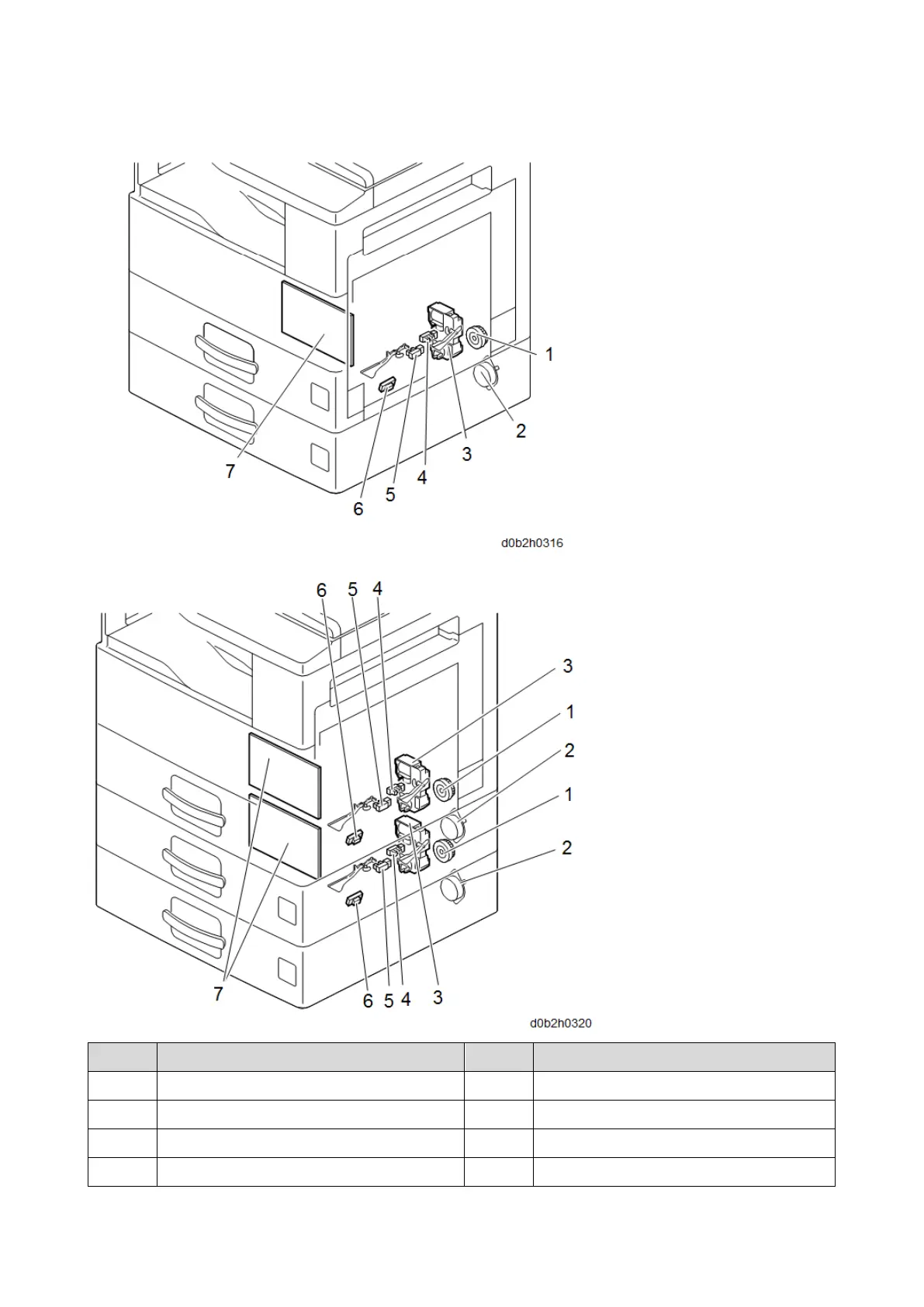

Parts Layout
No.
Description
No.
Description
1
Paper feed clutch (CL1)
5
Paper end sensor (S2)
2
Transport motor (M1)
6
Paper feed sensor (S1)
3
Tray lift motor (M2)
7
Main board (PCB1)
4
Tray lift sensor (S3)
