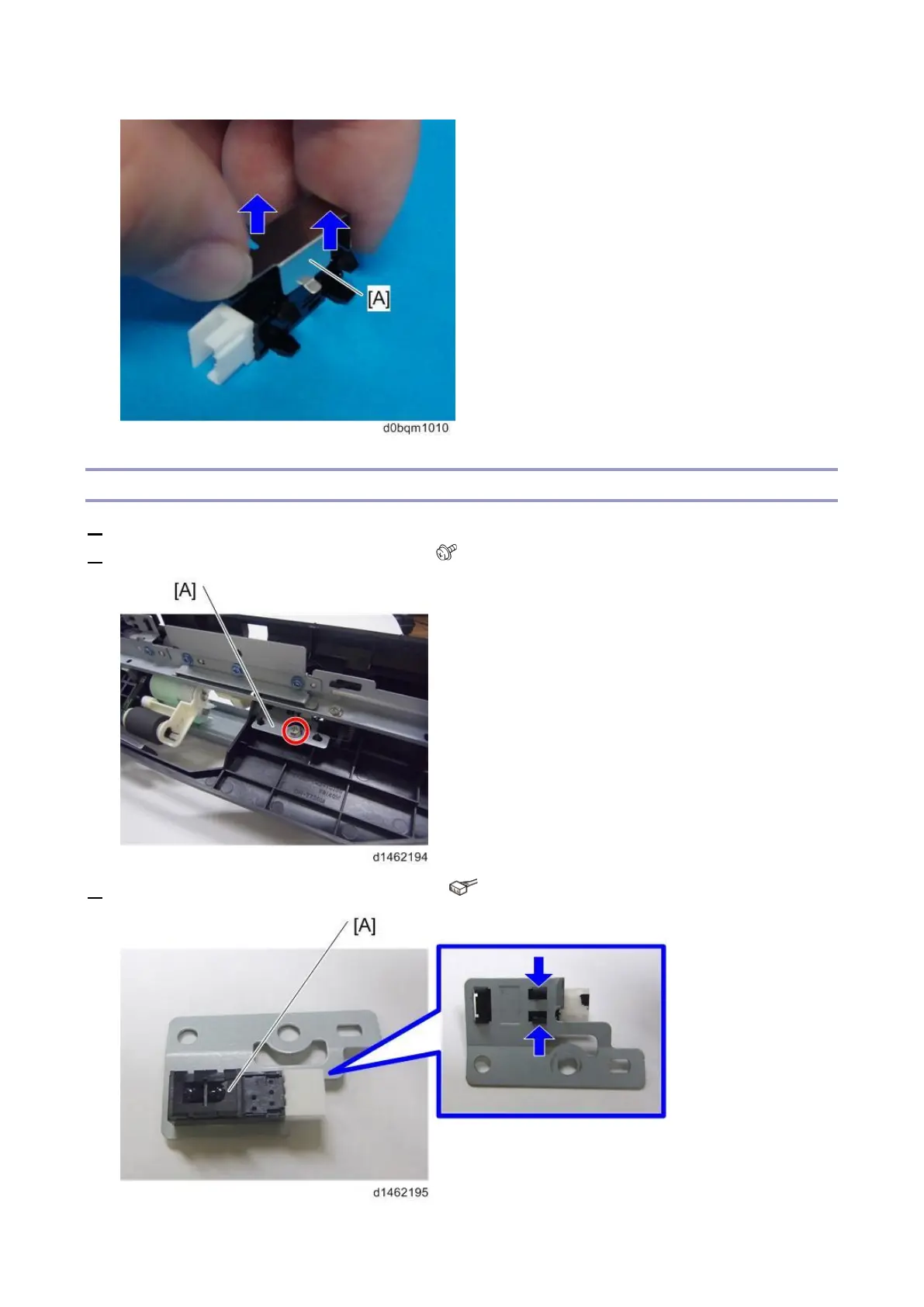

Paper Feed Sensor (S1) (S6)
1. Remove the paper feed unit (2nd Paper Feed Unit, 1st Paper Feed Unit).
2. Remove the paper feed sensor bracket [A] ( ×1).
3. Remove the paper feed sensor (S1) (S6) [A] ( ×1).
