Taurus-C1 Training
130
Slide 130

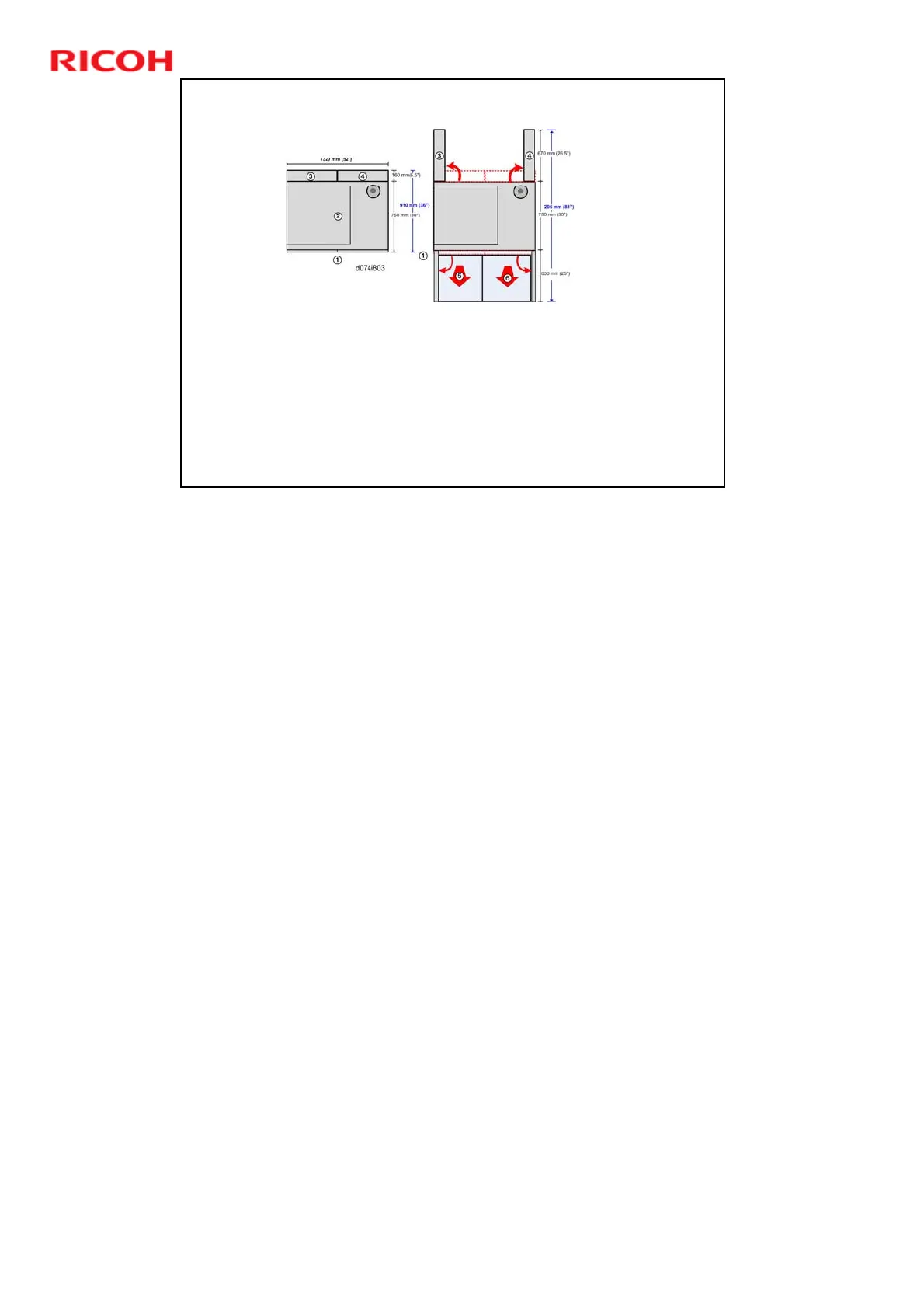

Space Required for Opening Covers
(1) Front Doors: Both doors swing open to the front
(2) Main Machine
(3) Cooling Box: Swings open to the rear
(4) Controller Box: Swings open to the rear
(5) Left Drawer: Slides open to the front for servicing (fusing unit, etc.)
(6) Right Drawer: Slides open to the front for servicing (registration unit, etc.)
The rear boxes (cooling box and controller box) are on hinges and can be swung
open to the rear in order to service parts on the back of the machine (motors,
sensors, etc.).
The front doors swing open to the front, and then the left drawer or right drawer (or
the ITB unit) can be pulled out the front of the machine on their rails for servicing.
The diagrams are views from above the machine.
