Attach the Fusing Roller Knob Holder (1)
This knob can be attached as shown and rotated by hand
to feed jammed paper out of the fusing unit.
This knob is stored in a holder that must be attached to the
inside surface of the left front door.

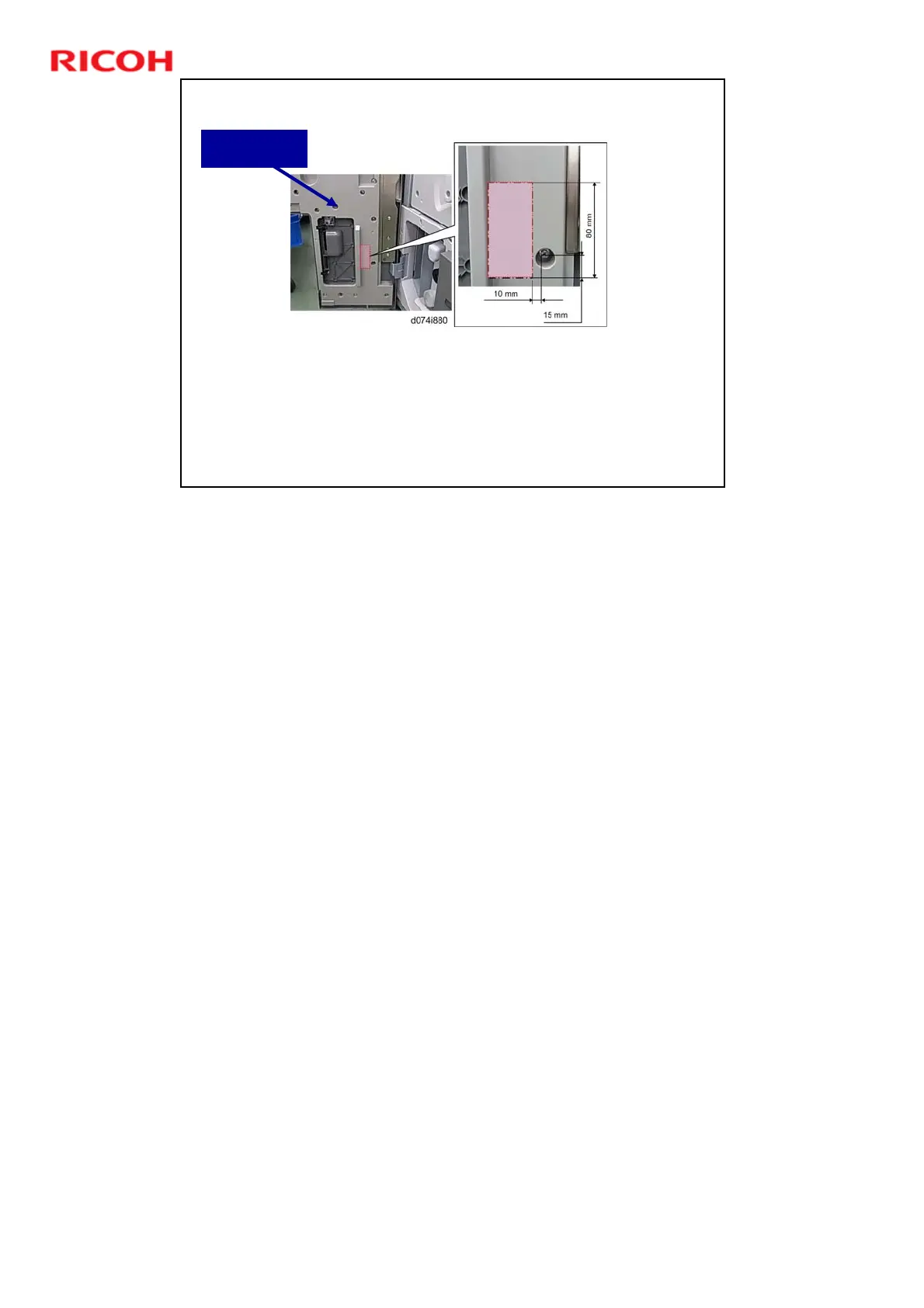

Clean the above area of the left front door’s inner surface
with alcohol before you attach the knob holder.
Left Front
Door
Basically, the knob is for users to remove jams in the fusing unit.
When users cannot remove jams in the fusing unit by the normal method, they
can pull out the left drawer unit and use this handle to move the paper
downwards.
Also, in theory, technicians can use this handle for lubricating the gears, but if
the technician mistakenly rotates the handle in the wrong direction with the web
cleaning unit installed, the web will loosen. The web unit would have to be
removed, to be safe. So we do not recommend to use this knob for fusing unit
lubrication. Just apply the grease at PM, and the next time the machine turns on,
the fusing unit gears will turn and lubricate themselves.
