Taurus-C1 Training
250
Slide 250
Overview
600-dpi CCD
Makes three analog signals (one for red, one for green, one
for blue)
Xenon exposure lamp
Two exposure glasses
Platen mode, ADF mode
CCD
Xenon Lamp

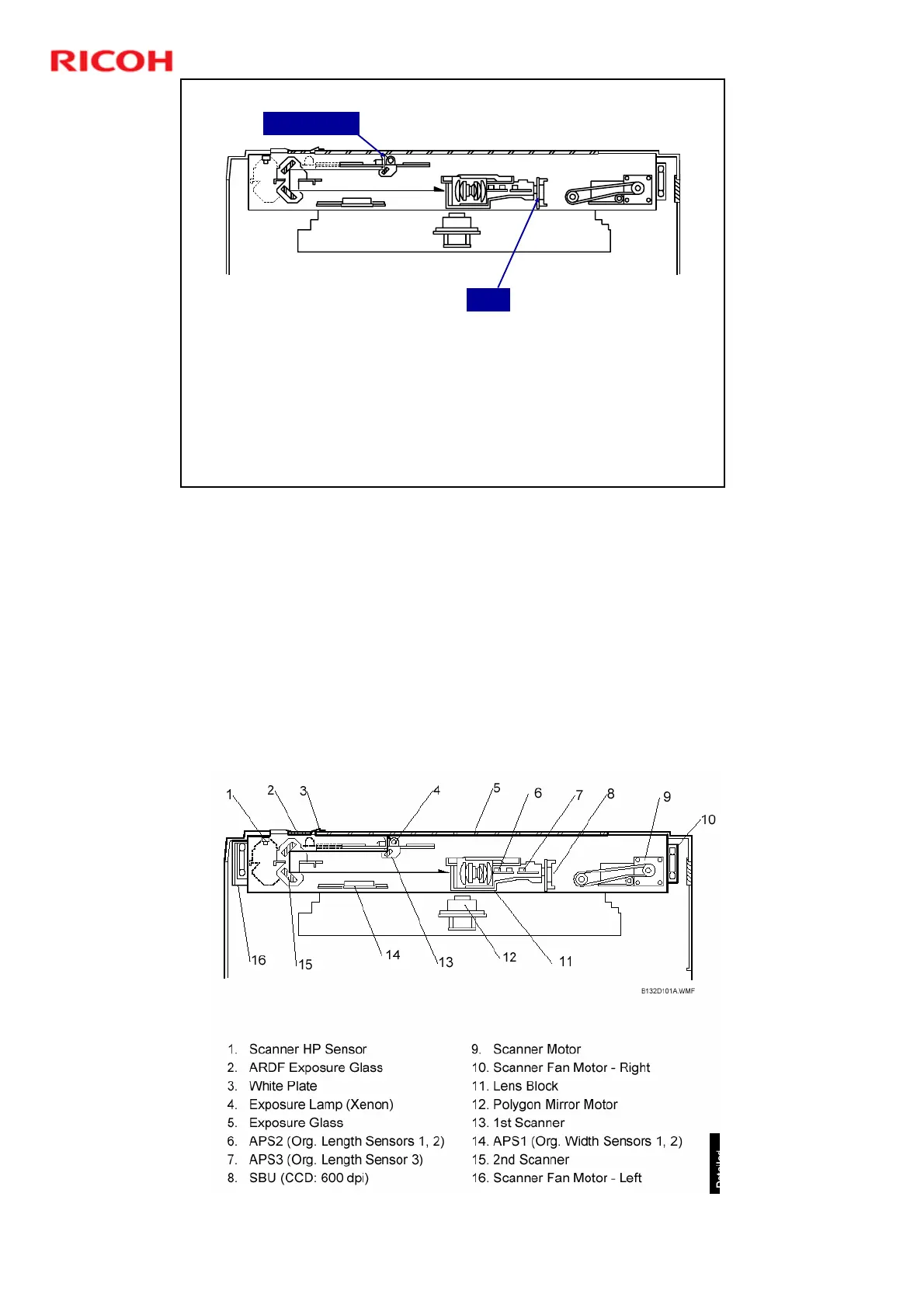

This is a typical CCD scanner mechanism.
For the main components, see the diagram below.
In this machine, there is an ADF exposure glass. In ADF mode, the scanner
moves below this glass and scans the original while the ADF feds it past this
glass.
There is also an optional anti-condensation heater for the scanner.
¾ The heaters for the paper trays and transfer unit are standard equipment.
To Next Page
