Image Position Correction (MUSIC)
How is MUSIC Done?

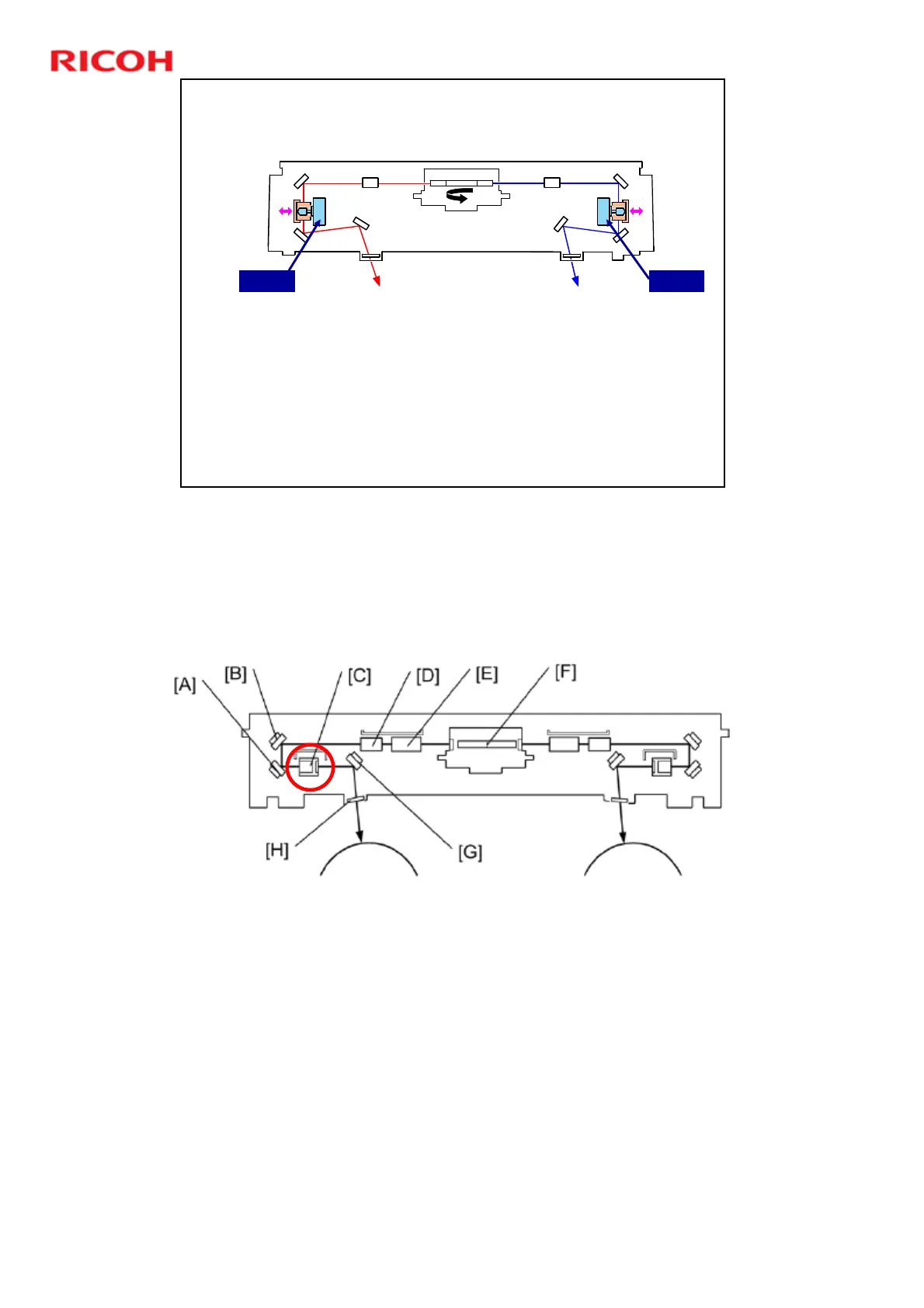

There are two motors in each laser unit (one for each
color).
The motors independently adjust the 2nd lens for each
color during MUSIC adjustment. This adjusts image writing
in the main scan direction.
The motor for black is not used, because the K patterns are
used as the reference point for MUSIC adjustments for the
other three colors.
MotorMotor
In the Aries series, the BTL position was adjusted to correct skew.
