The areas around the platen, post-heater, and inlet port of the cure heater cover may become very hot.
Be careful not to touch them.
Roll feed unit
20, 21.
This device is connecting to more than one power cord. All plugs need to be disconnected to stop the
electric power supply. For the rated value refer to the rating plate. (The decal of No. 21 is attached to
the power cord.)
22.
The pre-heater may become very hot. Be careful not to touch them.
23.
Do not put your hands under the back lever. The back lever is interlocked with the front lever, so
operating the front lever may depress the back lever.

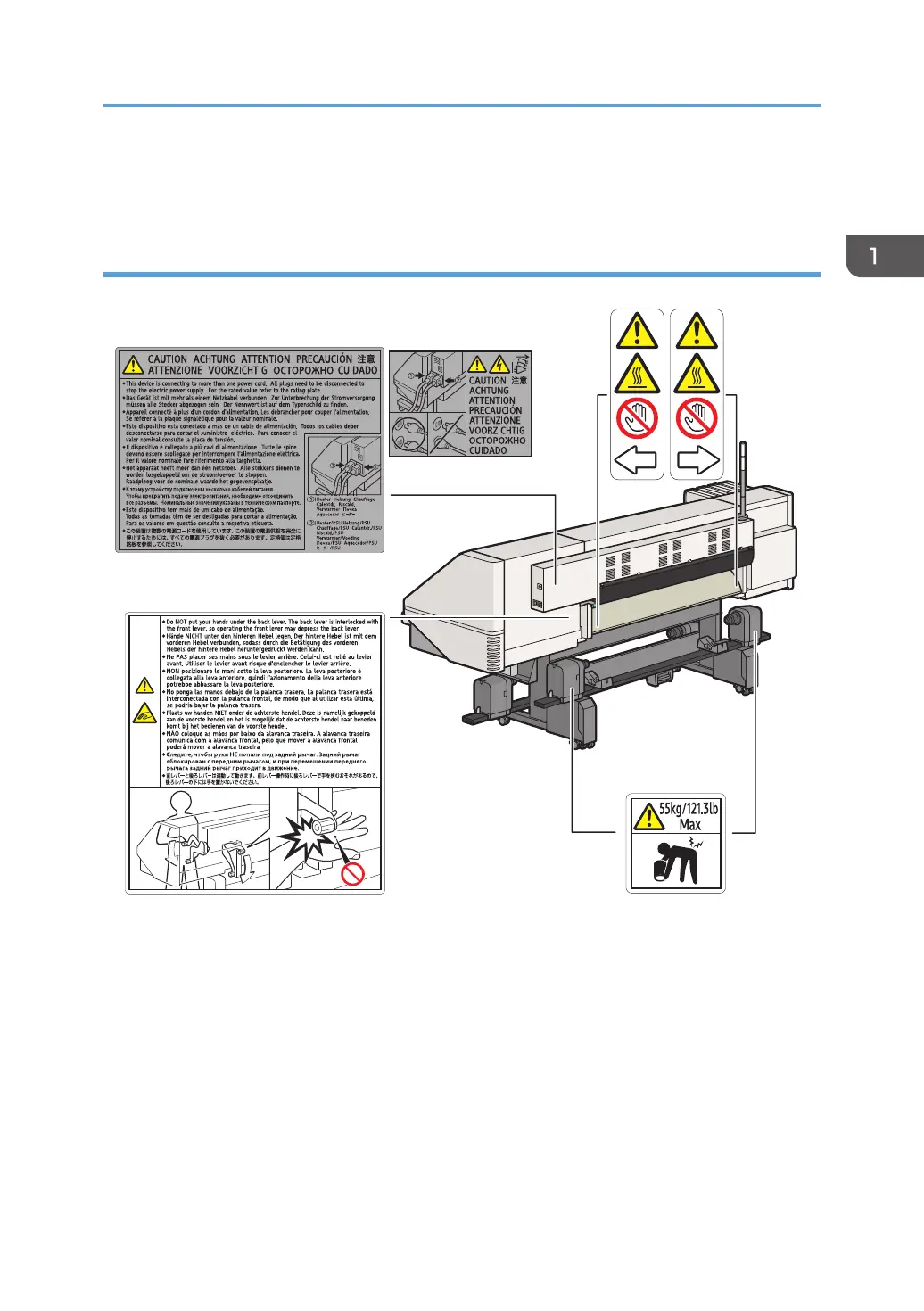

Safety Labels of This Machine
19
