Ricon S1231 User Manual

32DSSP03.B
1 - 6

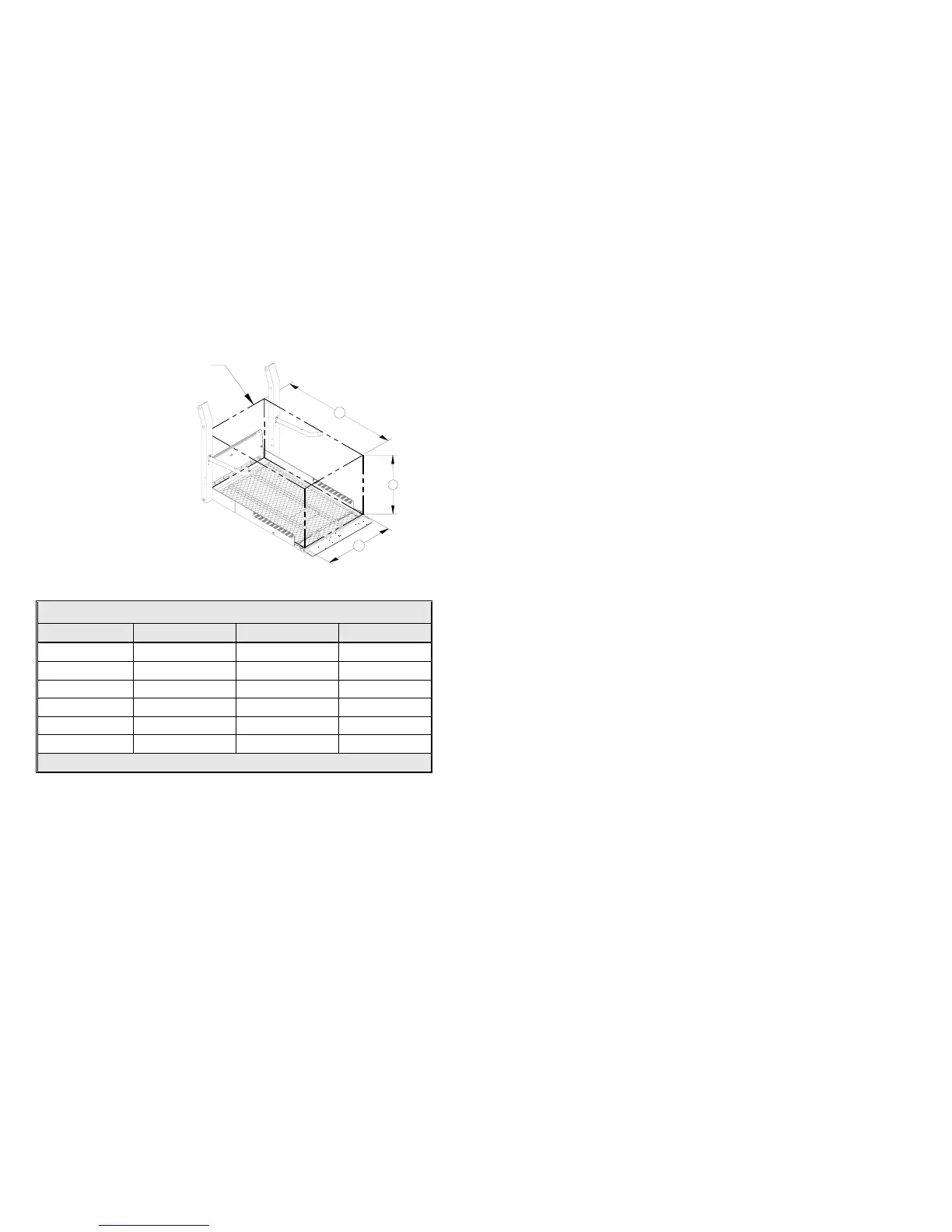

F. PLATFORM OPERATING VOLUME
Refer to Figure 1-2. The useful lift operating volume is represented in the figure by the rectangu-
lar volume shown in phantom outline. It is centered above the platform. Refer to Table 1-2 for
the dimensions that correspond to your lift model.
TABLE 1-2: S-SERIES OPERATING VOLUME DIMENSIONS, inches (mm’s)
MODEL A B C
S1231 30 (762) 42 (1,067) 30 (762)
S2003 30 (762) 51 (1,295) 30 (762)
S2005 32 (813) 51 (1,295) 30 (762)
S5003 30 (762) 51 (1,295) 30 (762)
S5005 32 (813) 51 (1,295) 30 (762)
S5010 34 (864) 56 (1,422) 30 (762)
END OF TABLE
C
A
B
UNOBSTRUCTED PLATFORM
OPERATING VOLUME
FIGURE 1-2: PLATFORM OPERATING VOLUME
