C. PLATFORM MOTIONS
TABLE 2-1: PLATFORM MOTIONS
MOVEMENT DESCRIPTION
DEPLOY
Platform unfolds, or deploys, out of vehicle from stowed po-
sition to floor level position. If equipped with a power door
operator, the doors automatically open before lift deploys.
DOWN
Platform lowers from vehicle floor level position towards
ground level. The front rollstop automatically lowers (opens)
when platform reaches ground level.
UP
Platform rises from ground level towards vehicle floor level.
The front rollstop automatically rises (closes) when platform
leaves ground level.
STOW
Platform folds, or stows, from vehicle floor level to the
stowed position. If equipped with a power door operator, the
doors automatically close after lift stows.
END OF TABLE
NOTE: The up and down motions are possible only when platform is deployed.
POSITION
STOWED
NOTE:
LEVEL
GROUND
POINT SHIELDS REMOVED
LEVEL
FLOOR
VEHICLE
HANDRAILS AND PINCH
FOR CLARITY.

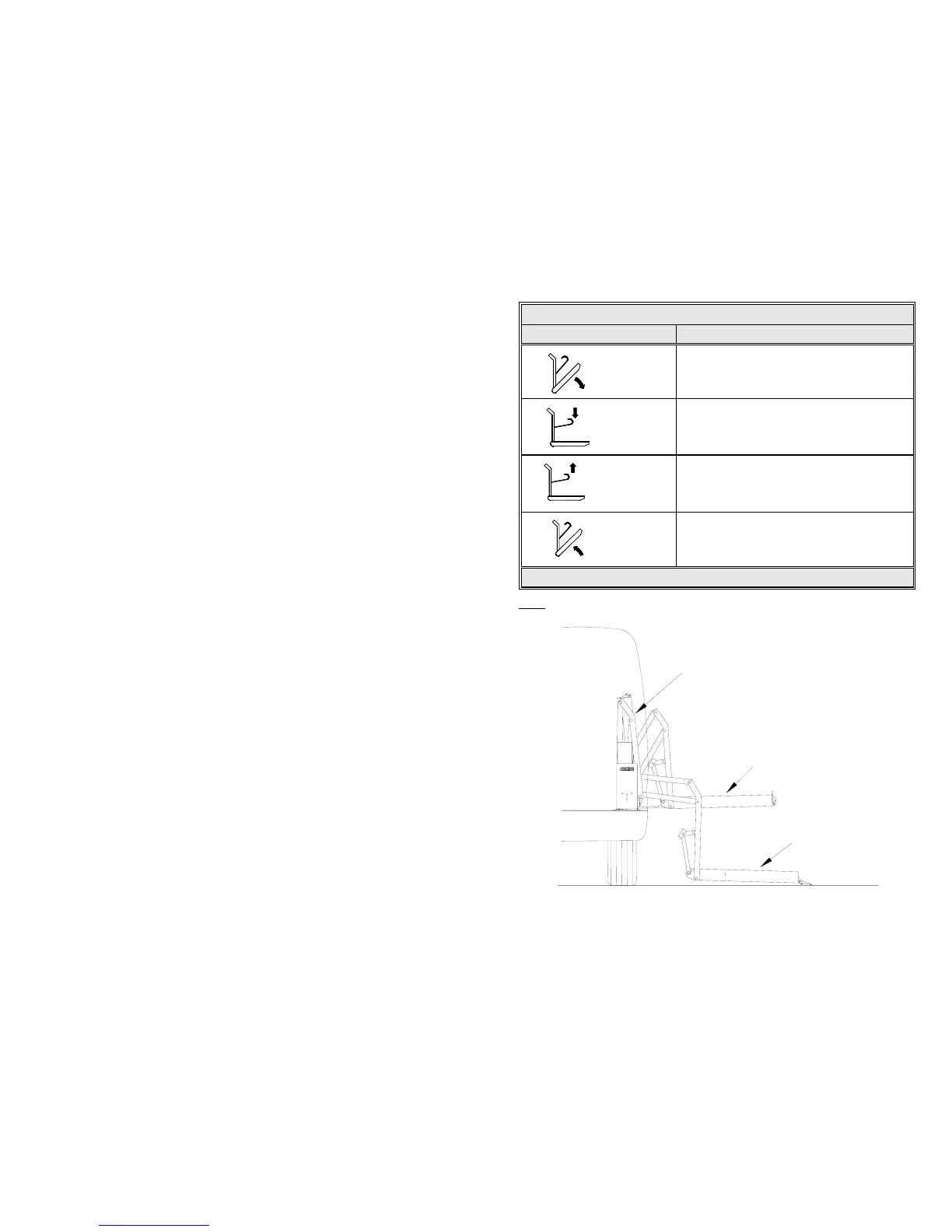

FIGURE 2-4: PLATFORM POSITIONS
