ADJUSTMENTS
0° BEVEL ADJUSTMENT
See Figure 41.
NOTE: These adjustments were made at the factory and
normally do not require readjustment.
Unplug the saw.
Loosen the bevel lock knob by turning the knob
counterclockwise.
Square the blade to the miter table as described in the
Assembly section of this manual.
If the blade is out of square, adjust by tightening or
loosening the 0° bevel stop screw using the Phillips
screwdriver end of the blade wrench.
Retighten bevel lock knob. Recheck blade-to-table
alignment.
Your saw has several scale indicators. After squaring
adjustments have been made, it may be necessary to loosen
the indicators screws and reset them to zero. See Figures
22 and 23.

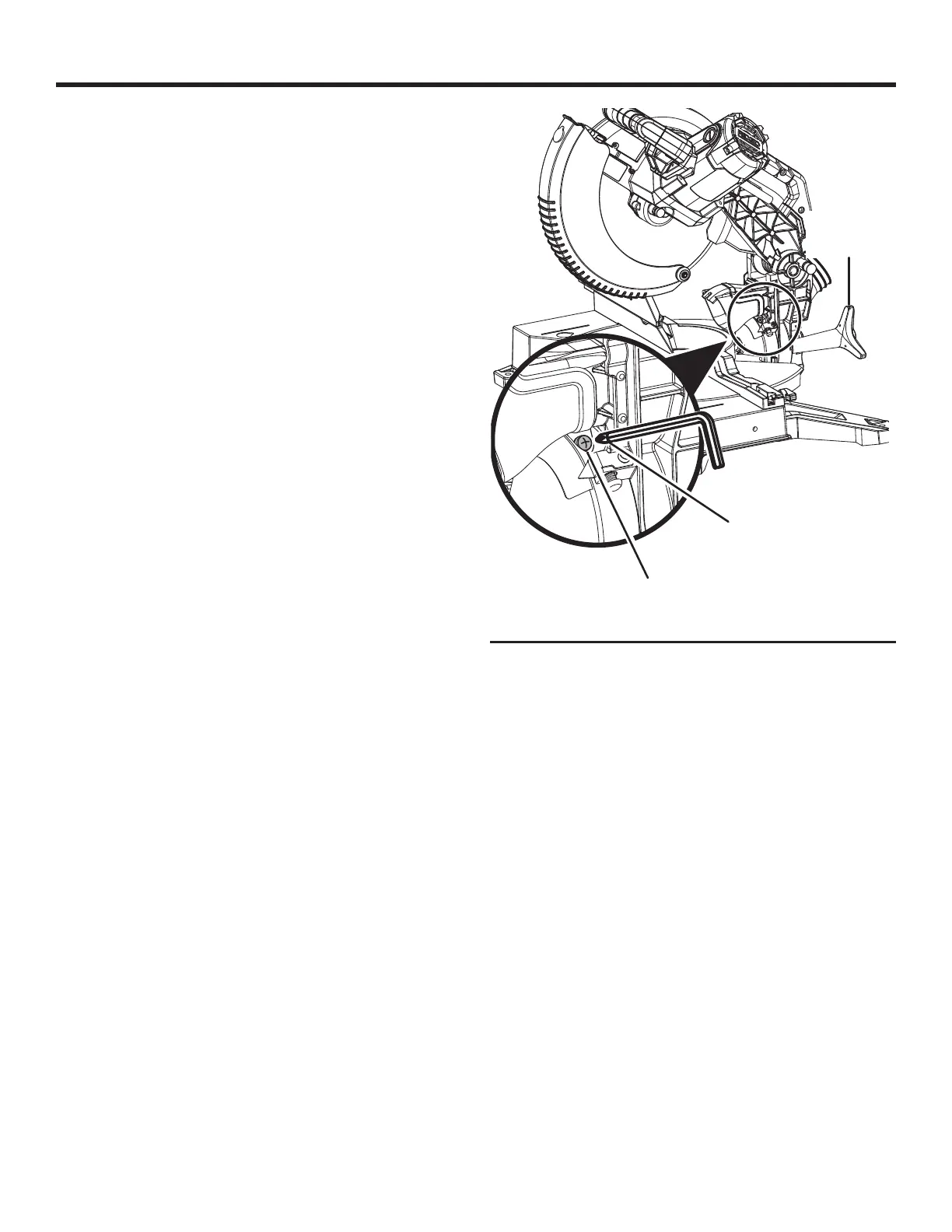

Fig. 41
0° BEVEL
STOP SCREW
BLADE
WRENCH
BEVEL LOCK
KNOB
