RIDGID R41221 - FEATURES OVERVIEW; Product Specifications; Key Components Identification

9 - English

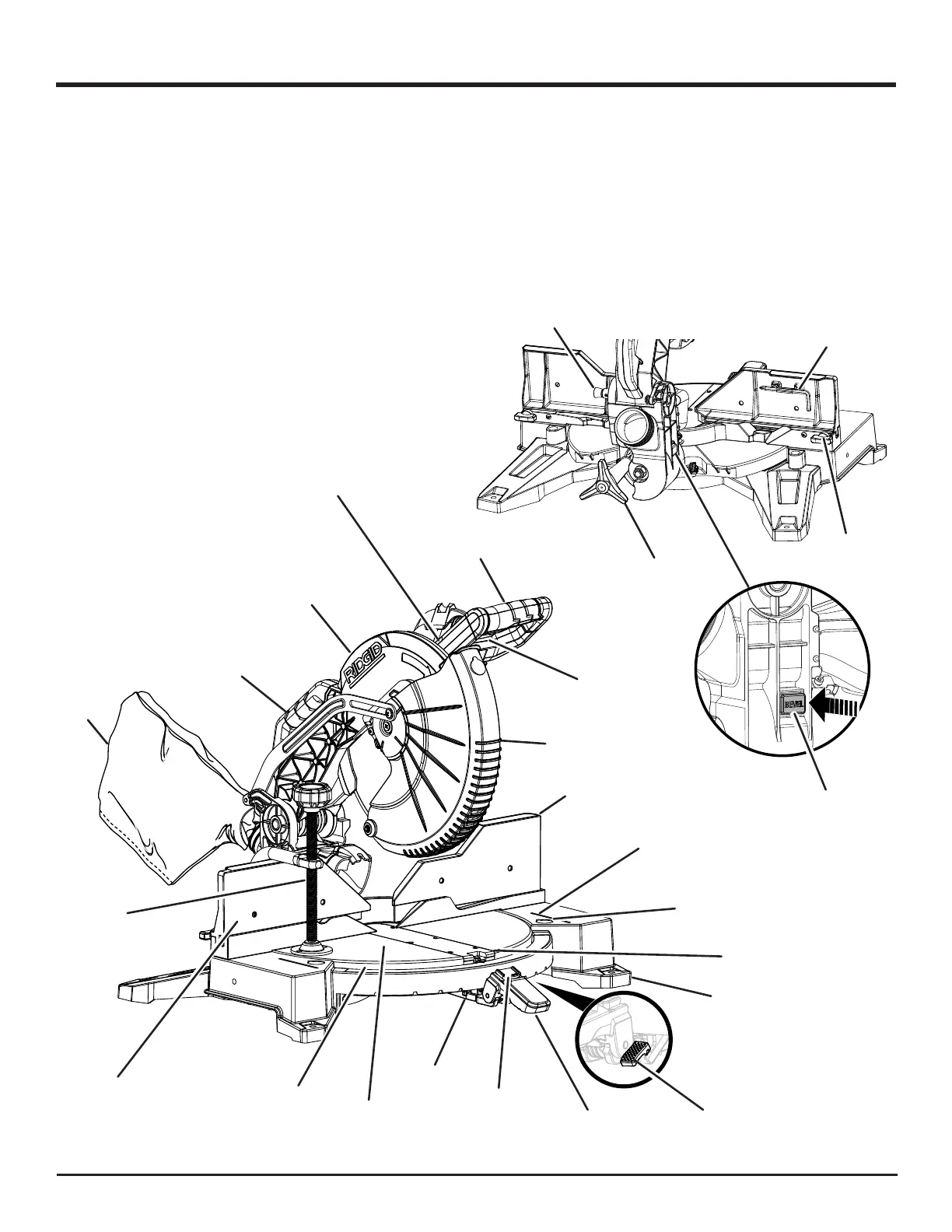

FEATURES
Fig. 1
DUST
BAG
UPPER BLADE
GUARD
LOWER
BLADE GUARD
MITER
SCALE
MITER
TABLE
SAW
BASE
SWITCH
TRIGGER
LASER
GUIDE
SLIDING MITER
FENCE
“D” HANDLE
CARRYING HANDLE
SLIDING MITER
FENCE
“NO HANDS ZONE”
LABEL
“NO HANDS ZONE”
BOUNDARY LINE
CONTROL
ARM
MITER
LOCK LEVER
DETENT
RELEASE
BUTTON
THROAT
PLATE
WORK
CLAMP
PRODUCT SPECIFICATIONS
Blade Diameter..............................12 in.
Arbor Hole ..................................1 in.
No Load Speed ..................4,000 r/min. (RPM)
Input ................ 120 V, AC Only, 60 Hz, 15 Amps
Cutting Capacity with Miter at 0°/Bevel 0°:
Maximum nominal lumber sizes:.......... 4 in. x 6 in.
and 2 in. x 8 in.
Cutting Capacity with Miter at 45°/Bevel 0°:
Maximum nominal lumber sizes:.......... 2 in. x 6 in.
Cutting Capacity (Right Bevel) with Miter at 0°/Bevel 45°:
Maximum nominal lumber sizes:.......... 1 in. x 8 in.
Cutting Capacity (Left Bevel) with Miter at 0°/Bevel 45°:
Maximum nominal lumber sizes:.......... 2 in. x 8 in.
Cutting Capacity with Miter at 45°/Bevel 45°:
Maximum nominal lumber sizes:.......... 2 in. x 6 in.
Cutting Capacity for
Crown Molding (Nested or Flat): ............. 6-1/2 in.
Cutting Capacity for Baseboards against the fence:
Maximum height ................. 6-1/2 in. x 3/4 in.
ZERO BEVEL
STOP BUTTON
LOCK PIN
BEVEL
LOCK KNOB
FENCE
SCREW
DETENT
OVERRIDE
LEVER
BLADE WRENCH
STORAGE
