- 18 -

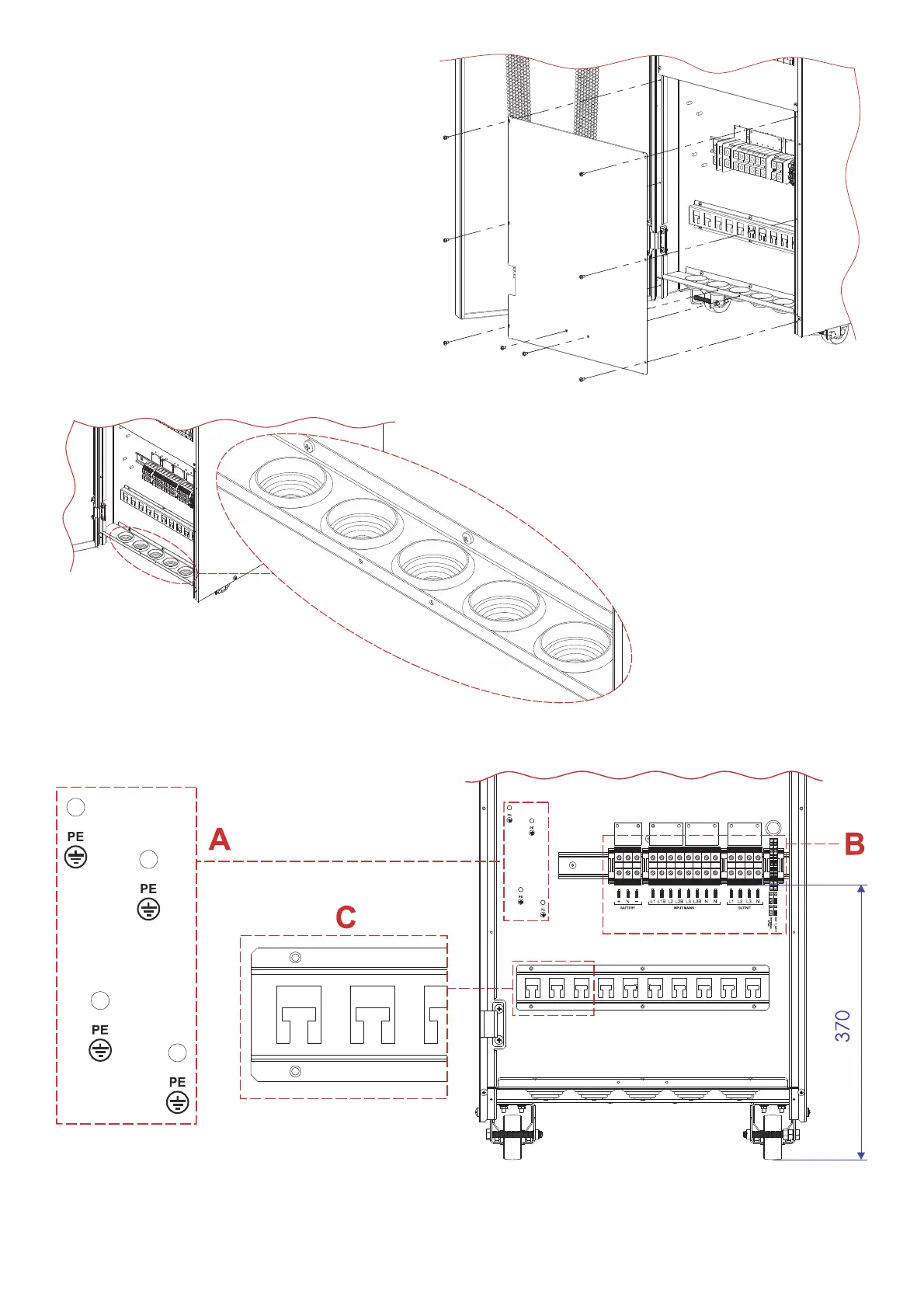

REMOVE THE FRONT TERMINAL COVER
CUT A SUITABLE HOLE IN THE
CABLE GLANDS PROVIDED TO
MAINTAIN THE REQUIRED
DEGREE OF PROTECTION
A. PE CONNECTION
B. TERMINAL BLOCKS (FOR MORE INFORMATION REFER TO “POWER CONNECTION DETAILS”)
C. CABLE SECURING BRACKET
