5.10 Positioning the probe - electrode
If the probe or electrode is not correctly positioned, you must:
 remove the screw 1)(Fig. 15)
 take out the inner part 2)(Fig. 15) of the head and then
calibrate them.
ATTENTION
Check that the probe and the electrode are placed
as in Fig. 16, according to the dimensions
indicated.
ATTENTION
Do not rotate the probe but leave it as in Fig. 15; if
it is too close to the ignition electrode, it could
damage the control box amplifier.

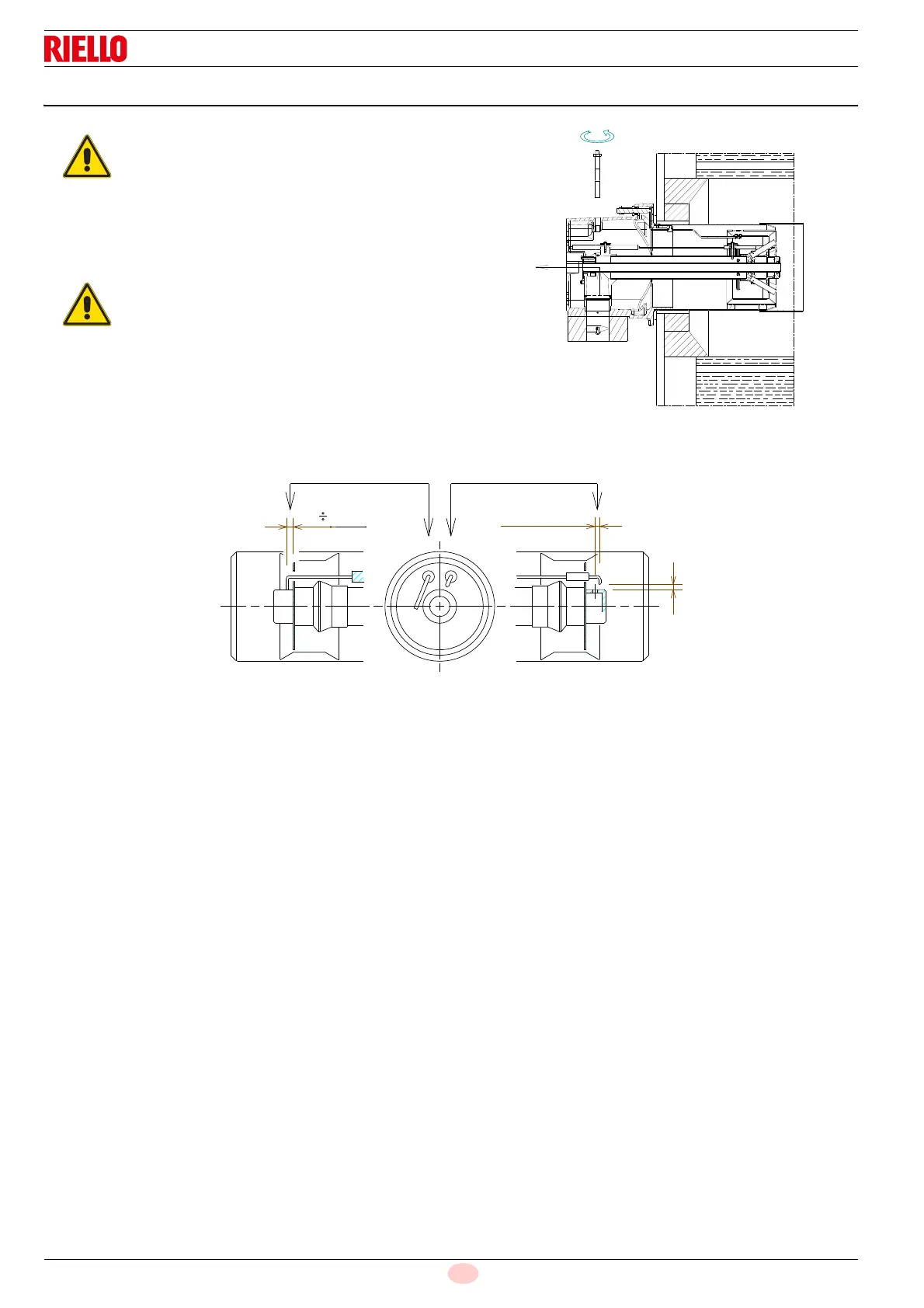

Fig. 15
2
1
D3810
Fig. 16
Probe Electrode
mm mm
mm
2 4 2
3
D3809
