Riello BAG3 AP - Unit Structure and Components; Product Identification Methods

20
GENERAL
ENGLISH
1
2
1.4 Structure
1.5 Identifi cation
BAG
3
can be identifi ed by:
− Packing label (1)
− Technical Data Plate (2) with the technical data.
9
Tampering, removing, failure to display
the Technical Data Plate or any other in-
tervention which does not permit relia-
ble identifi cation of the product, makes
any installation or maintenance inter-
vention diffi cult.
BAG
3
3 AP BAG
3
2 AP BAG
3
AP
1
3
2
2
4
5
6
7
11
10
9
8
1
3
4
5
6
11
9
8
1
2
4
6
11
8
5
5

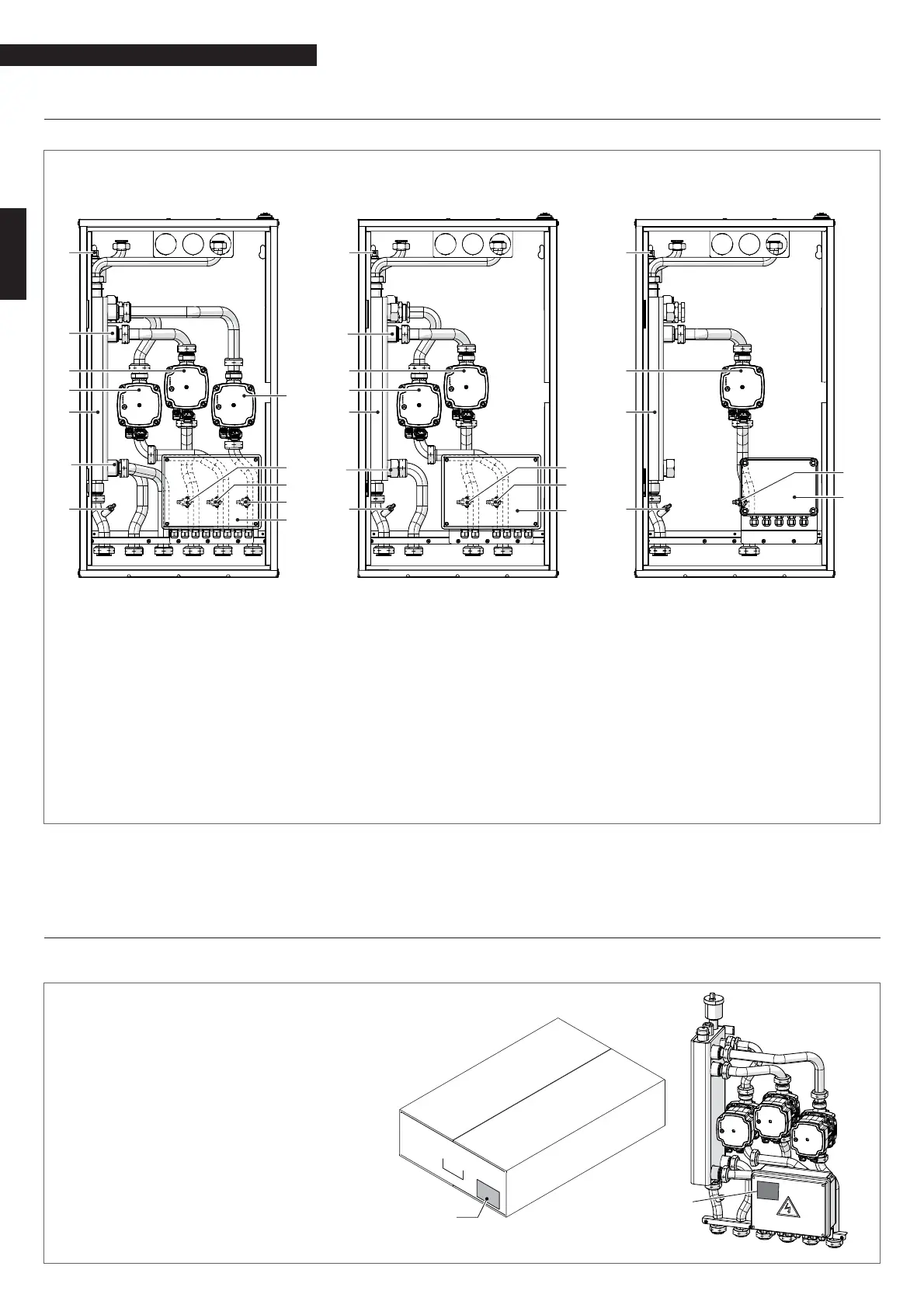

1 Drain cock
2 Mixing bottle
3 Circulation unit zone 1
4 Circulation unit zone 2
5 Non-return valve (inside the pipe)
6 Mixing valve low temperature system 1
7 Circulation unit zone 3
8 Limit thermostat low temperature system 2
9 Limit thermostat low temperature system 1
10 Limit thermostat low temperature system 3
11 Electrical connection box
