Riello BAG3 AP - Minimum Clearance Distances; Typical Installation Layout Diagram

28
INSTALLATION
ENGLISH

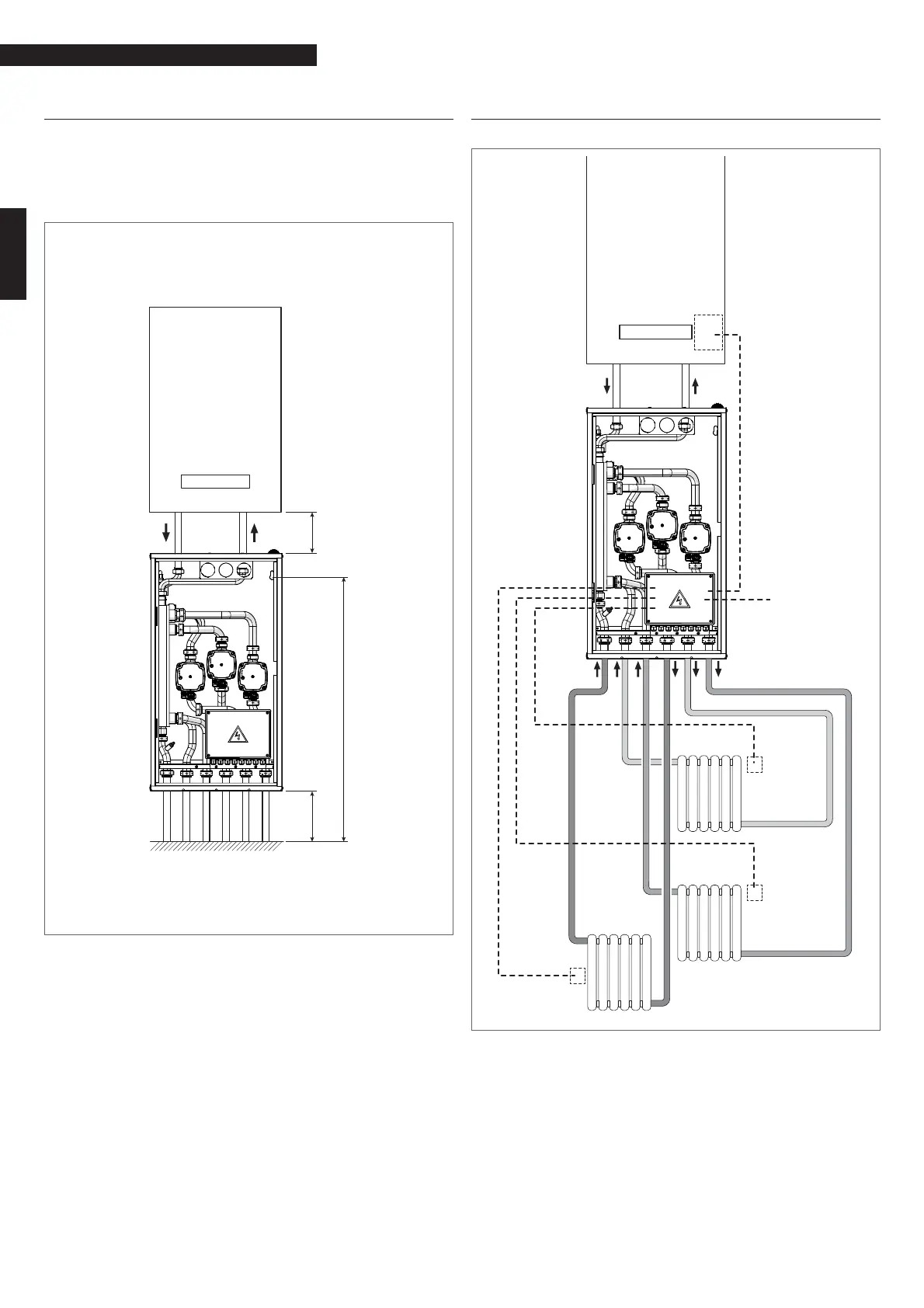

2.4 Minimum distances
The fi gure shows an example of a typical installation of the BAG
3
.
N.B.: For the installation of any cocks, (not supplied), a niche
must be formed of a suffi cient size to allow them to be fi tted
below the BAG
3
itself.
Boiler
350 250
1000
2.5 Typical installation layout
Boiler
TA
230V~
50Hz
IAT 1
zone 1
TA2-CT2
TA3-CT3
TA1-CT1
IAT 3
zone 3
IAT 2
zone 2
TA Ambient thermostat connection
TA1-CT1 Ambient thermostat/chrono-thermostat
zone 1 HIGH temperature
TA2-CT2 Ambient thermostat/chrono-thermostat
zone 2 HIGH temperature
TA3-CT3 Ambient thermostat/chrono-thermostat
zone 3 HIGH temperature
IAT1 Direct system 1 HIGH temperature
IAT2 Direct system 2 HIGH temperature
IAT3 Direct system 3 HIGH temperature
